Aspen Silent+ Mini Aqua - Mini Split Condensate Pump Kit - 230V - Up to 54,000 BTU/hr

Model:

ASP-MA-230SP

Write A Review
$356.58
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 4 In-Stock
Ships Wednesday, Apr 17th
Shipping to60601
synchrony card logo
$60 / Month
Suggested monthly payments with 6 month financing.
Aspen Silent+ Mini Aqua - Mini Split Condensate Pump Kit - 230V - Up to 54,000 BTU/hr
Aspen Silent+ Mini Aqua - Mini Split Condensate Pump Kit - 230V - Up to 54,000 BTU/hr
Model: ASP-MA-230SP
$356.58
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    A properly functioning mini split system requires an installation that allows for proper condensate drainage. Condensate removal pumps are used in situations where gravity draining is not an option. If you're using a high wall system, ducted or free-standing units, you may need an alternative way to expel water that has been removed by the cooling system. Aspen's ASP-MA-230SP Mini Aqua Silent+ Condensate Pump is the slimmest, quietest pump in its class, designed for great performance and simple plug-and-play operation. Aspen's ASP-MA-230SP is perfect for being installed directly in the unit and is so small and quiet, you'll never even know it's there.
  • Silent+ Technology
  • Complete with an acoustic damper and Silent+ technology, the ASP-MA-230SP is a small yet powerful solution for any situation, even in sound-sensitive applications.
  • Designed for Versatile Installation
  • Aspen Mini Split Condensate Pump Kits like the ASP-MA-230SP are designed to not only be the slimmest, most inconspicuous pump available, but also to focus on reliability with an anti-siphon device to keep air from causing priming issues.
  • Performance that Packs a Punch
  • The ASP-MA-230SP has a max flow rate of 3 GPM that'll keep your system running smoothly. Each unit also features an anti-siphon device that makes sure your pump is always primed, keeping air from leaking in and causing problems.
  • Plug & Play
  • The ASP-MA-230SP is a no hassle, low maintenance unit that's ready to go right out of the box. Just hook up the pump and you're set.

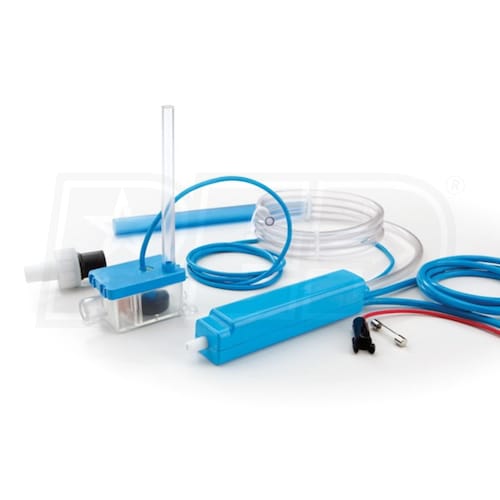

  • Product Includes
  • (1) Acoustic Dampener and 1m Aqua Discharge Tube
  • (1) 1.5m Plug & play power cable
  • (1) Standard Reservoir
  • (1) 150mm Vinyl breather tube 6mm ID
  • (1) Anti siphon device
  • (1) 1.5m Suction Tube 6mm ID
  • (1) 220mm Blue inlet hose 14mm ID
  • (1) Drain connector kit
  • (1) Fixing kit
  • (1) Install manual
  • Product Note
    The Aspen ASP-MA-230SP is suitable for use with ducted, floor standing and high wall mounted mini split systems. The ASP-MA-230SP is ideal for installation directly inside the mini split unit and in applications where silence is key, but can also be installed above the ceiling or inside the conduit.

Specifications

ASP-MA-230SP
specs product image PID-50131
Overview
Product Category
Mini Split Accessories
UPC
021449838122
General Information
Type
Condensate Pump
Product Line
Silent+ Mini Aqua
Product Category
Mini Split Accessories
Application
Low Profile
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
54000 BTU
Suction Lift
6.56 Feet
Maximum Head
32.81 Feet
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
19 dB
Condensate Removal Rate
3 GPH
Electrical Data
Current Draw
0.1 Amps
Dimensions
Product Height
1 1/3 Inches
Product Width
1 13/24 Inches
Product Depth
3 7/48 Inches
Product Weight
0.4 Pounds
Certifications
Country of Origin
UK
CSA Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
