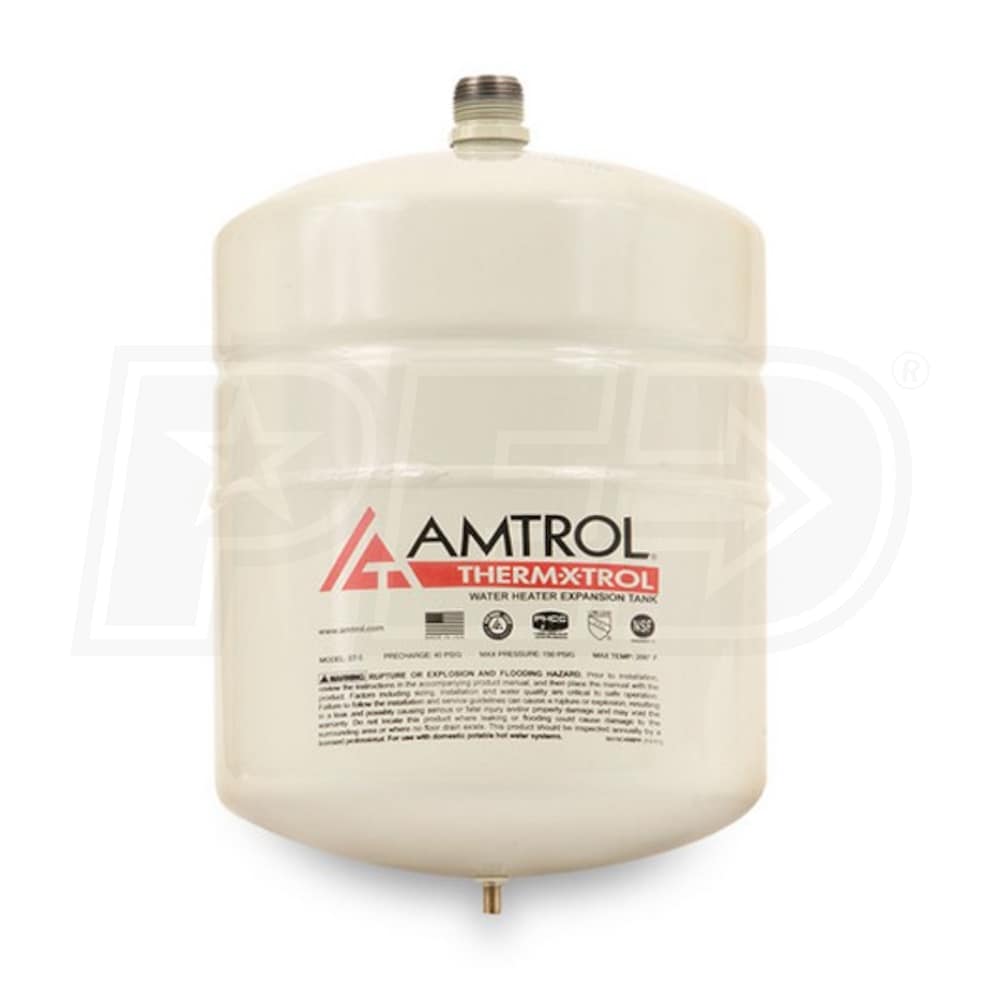

Amtrol Therm-X-Trol - 3.2 Gallon - In-Line Thermal Expansion Tank
Model: ST-8
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$55.00
In-Stock
Ships in 2-3 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Storage Volume (Gallons)
ASME Certified Learn More
ASME Certified
The largest focus of the American Society of Mechanical Engineers is the Boiler and Pressure Vessel Code (BPVC). The BPVC provides regulations for design, fabrication, installation, inspection, care, and use of boilers, pressure vessels, and nuclear components. This certification is given to show that these standards are met.
Share
  • Product Description
  • 1
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    In 1954, Amtrol invented the thermal expansion tank to control pressure build-up in closed, hot water systems. Today they are continuing to roll out efficient and reliable tanks to improve your system. The ST in-line thermal expansion tank is a perfect example of this. By accepting expanded water caused by thermal expansion, the ST is able to then return the water to the system when hot water is used. The ST also prevents pressure relief valve discharge, dripping faucets, and intermittent toilet fill. From the strong deep drawn steel domes with corrosion resistant liner to the welded air charge fitting, the ST is designed to prevent damaging pressure buildup and eliminate energy and water waste. The ST-8 is ideal for residential applications.
Specifications
General Information
Product Line
Therm-X-Trol
Connection Type
NPT
Color
Tan
UPC
642031551405
Performance
Maximum Operating Temperature
200 F
Maximum Operating Pressure
150 PSI
Dimensions
Storage Volume
3.2 Gallons
Maximum Acceptance Volume
1.9 Gallons
Connection Size
3/4 Inch
Product Diameter
9 Inches
Product Height
15 Inches
Shipping Width
9 Inches
Shipping Height
15 Inches
Shipping Length
9 Inches
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    In 1954, Amtrol invented the thermal expansion tank to control pressure build-up in closed, hot water systems. Today they are continuing to roll out efficient and reliable tanks to improve your system. The ST in-line thermal expansion tank is a perfect example of this. By accepting expanded water caused by thermal expansion, the ST is able to then return the water to the system when hot water is used. The ST also prevents pressure relief valve discharge, dripping faucets, and intermittent toilet fill. From the strong deep drawn steel domes with corrosion resistant liner to the welded air charge fitting, the ST is designed to prevent damaging pressure buildup and eliminate energy and water waste. The ST-8 is ideal for residential applications.
Specifications
General Information
Product Line
Therm-X-Trol
Connection Type
NPT
Color
Tan
UPC
642031551405
Performance
Maximum Operating Temperature
200 F
Maximum Operating Pressure
150 PSI
Dimensions
Storage Volume
3.2 Gallons
Maximum Acceptance Volume
1.9 Gallons
Connection Size
3/4 Inch
Product Diameter
9 Inches
Product Height
15 Inches
Shipping Width
9 Inches
Shipping Height
15 Inches
Shipping Length
9 Inches
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
