Amtrol Therm-X-Trol - 14 Gallon - Vertical Thermal Expansion Tank

Model:

ST-30V

Write a Review
$327.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days

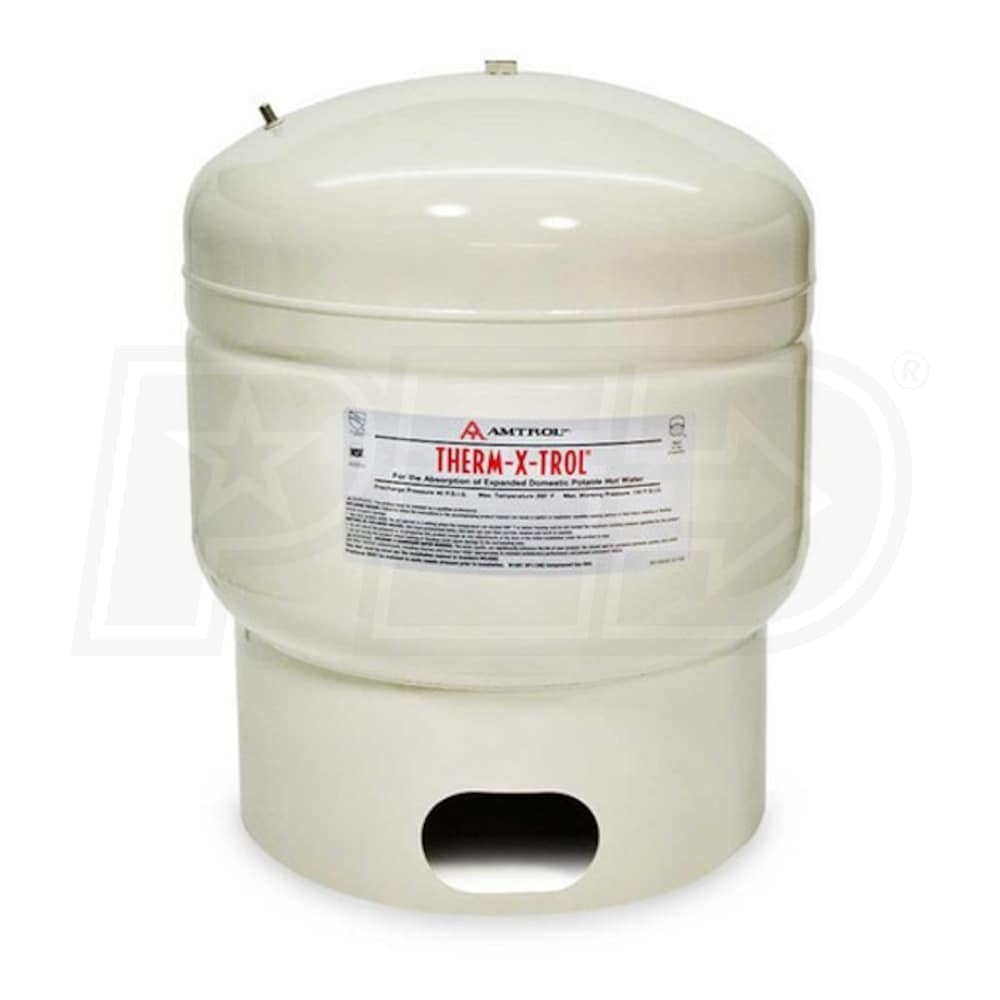

Amtrol Therm-X-Trol - 14 Gallon - Vertical Thermal Expansion Tank
Amtrol Therm-X-Trol - 14 Gallon - Vertical Thermal Expansion Tank
Model: ST-30V
$327.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    In 1954, Amtrol invented the thermal expansion tank to control pressure build-up in closed, hot water systems. Today they are continuing to roll out efficient and reliable tanks to improve your system. The ST vertical thermal expansion tank is a perfect example of this. By accepting expanded water caused by thermal expansion, the ST is able to then return the water to the system when hot water is used. The ST also prevents pressure relief valve discharge, dripping faucets, and intermittent toilet fill. From the strong deep drawn steel domes with corrosion resistant liner to the welded air charge fitting, the ST is designed to prevent damaging pressure buildup and eliminate energy and water waste. The ST-30V is ideal for large residential and light commercial applications.
  • USA Made
  • All ST thermal expansion tanks are made in the USA at facilities certified for maintaining high-quality standards.
  • Heavy Duty Tank
  • From the deep drawn steel dome with rigid polypropylene liner to the welded air charge fitting, this thermal expansion tank is constructed from top to bottom for maximum strength and corrosion resistance.
  • Eliminates Wasted Energy
  • Expanded water caused by thermal expansion is collected by the ST tank which returns the water back to your system which preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.
  • Protection for Your System
  • ST thermal expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.
  • Adaptable
  • Multiple tanks can be installed to accommodate large systems.

Specifications

ST-30V
specs product image PID-45599
General Information
Product Line
Therm-X-Trol
Connection Type
NPT
Color
Tan
UPC
642031395696
Performance
Maximum Operating Temperature
200 F
Maximum Operating Pressure
150 PSI
Dimensions
Storage Volume
14 Gallons
Maximum Acceptance Volume
11.3 Gallons
Connection Size
3/4 Inch
Product Diameter
15 3/8 Inches
Product Height
23 7/8 Inches
Shipping Width
15 Inches
Shipping Height
24 Inches
Shipping Length
15 Inches
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
1 Year
