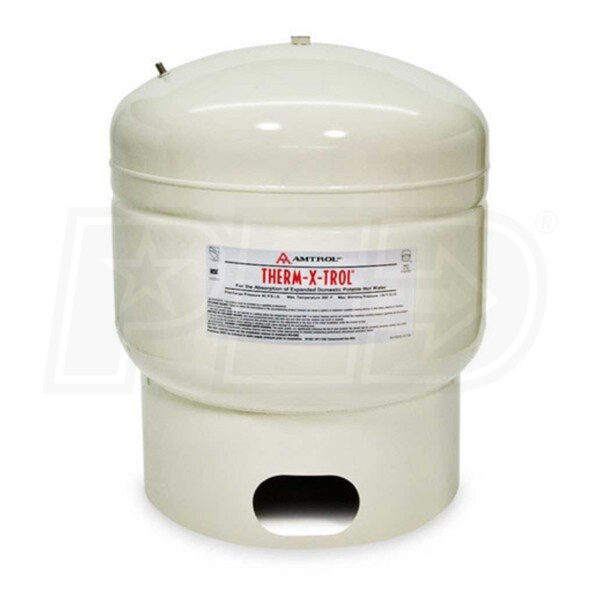

Amtrol Therm-X-Trol - 62 Gallon - Vertical Thermal Expansion Tank

Amtrol Therm-X-Trol - 62 Gallon - Vertical Thermal Expansion Tank
Model: ST-180V
$699.99
In-Stock
Ships Tuesday, Jan 23rd
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Storage Volume (Gallons)
ASME Certified
Add-Ons

Free ShippingNo Sales Tax* (Except IL)$699.99Buy Now
No Sales Tax* (Except IL)$699.99Visit Site
In-Stock
Ships Tuesday, Jan 23rd
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    In 1954, Amtrol invented the first expansion tank to control pressure build-up in closed, hot water systems. Today they are continuing to roll out efficient and reliable tanks to improve your system. The ST vertical thermal expansion tank is a perfect example of this. By accepting expanded water caused by thermal expansion, the ST is able to then return the water to the system when hot water is used. The ST also prevents pressure relief valve discharge, dripping faucets, and intermittent toilet fill. From the strong deep drawn steel dome with corrosion resistant liner to the welded air charge fitting, the ST is designed to prevent damaging pressure buildup and eliminate energy and water waste. The ST-180V is ideal for large residential and light commercial applications.

    Product Features

    USA Made
    All ST thermal expansion tanks are made in the USA at facilities certified for maintaining high-quality standards.

    Heavy Duty Tank
    From the deep drawn steel dome with rigid polypropylene liner to the welded air charge fitting, this thermal expansion tank is constructed from top to bottom for maximum strength and corrosion resistance.

    Eliminates Wasted Energy
    Expanded water caused by thermal expansion is collected by the ST tank which returns the water back to your system which preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.

    Protection for Your System
    ST thermal expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.

    Adaptable
    Multiple tanks can be installed to accommodate large systems.

Specifications
General Information
Product Line
Therm-X-Trol
Connection Type
NPT
Color
Tan
UPC
642031395733
Performance
Maximum Operating Pressure
150 PSI
Maximum Operating Temperature
200 F
Dimensions
Storage Volume
62 Gallons
Maximum Acceptance Volume
34.1 Gallons
Connection Size
1.25 Inches
Product Diameter
22 Inches
Product Height
46.75 Inches
Shipping Height
47 Inches
Shipping Width
22 Inches
Shipping Length
22 Inches
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Certifications
Country of Origin
USA
Features
Features

    In 1954, Amtrol invented the first expansion tank to control pressure build-up in closed, hot water systems. Today they are continuing to roll out efficient and reliable tanks to improve your system. The ST vertical thermal expansion tank is a perfect example of this. By accepting expanded water caused by thermal expansion, the ST is able to then return the water to the system when hot water is used. The ST also prevents pressure relief valve discharge, dripping faucets, and intermittent toilet fill. From the strong deep drawn steel dome with corrosion resistant liner to the welded air charge fitting, the ST is designed to prevent damaging pressure buildup and eliminate energy and water waste. The ST-180V is ideal for large residential and light commercial applications.

    Product Features

    USA Made
    All ST thermal expansion tanks are made in the USA at facilities certified for maintaining high-quality standards.

    Heavy Duty Tank
    From the deep drawn steel dome with rigid polypropylene liner to the welded air charge fitting, this thermal expansion tank is constructed from top to bottom for maximum strength and corrosion resistance.

    Eliminates Wasted Energy
    Expanded water caused by thermal expansion is collected by the ST tank which returns the water back to your system which preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.

    Protection for Your System
    ST thermal expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.

    Adaptable
    Multiple tanks can be installed to accommodate large systems.

Specifications
General Information
Product Line
Therm-X-Trol
Connection Type
NPT
Color
Tan
UPC
642031395733
Performance
Maximum Operating Pressure
150 PSI
Maximum Operating Temperature
200 F
Dimensions
Storage Volume
62 Gallons
Maximum Acceptance Volume
34.1 Gallons
Connection Size
1.25 Inches
Product Diameter
22 Inches
Product Height
46.75 Inches
Shipping Height
47 Inches
Shipping Width
22 Inches
Shipping Length
22 Inches
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Certifications
Country of Origin
USA
Product Specs
+
Specifications
General Information
Product Line
Therm-X-Trol
Connection Type
NPT
Color
Tan
UPC
642031395733
Performance
Maximum Operating Pressure
150 PSI
Maximum Operating Temperature
200 F
Dimensions
Storage Volume
62 Gallons
Maximum Acceptance Volume
34.1 Gallons
Connection Size
1.25 Inches
Product Diameter
22 Inches
Product Height
46.75 Inches
Shipping Height
47 Inches
Shipping Width
22 Inches
Shipping Length
22 Inches
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Certifications
Country of Origin
USA
