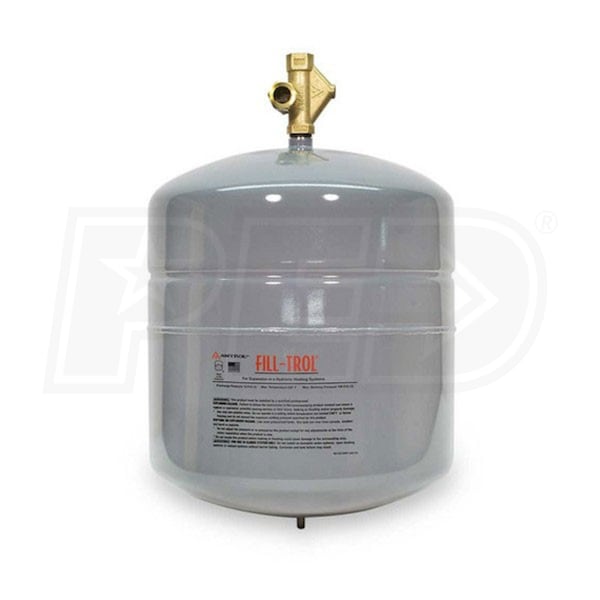

Amtrol Fill-Trol - 4.4 Gallon - Expansion Tank & Fill Valve Combination Kit - 1" Purger & Vent

Model:

FT-110-100

Write A Review
$187.00
In-Stock
Ships Wednesday, Mar 20th
Shipping to60601
synchrony card logo
$32 / Month
Suggested monthly payments with 6 month financing.
Amtrol Fill-Trol - 4.4 Gallon - Expansion Tank & Fill Valve Combination Kit - 1
Amtrol Fill-Trol - 4.4 Gallon - Expansion Tank & Fill Valve Combination Kit - 1" Purger & Vent
Model: FT-110-100
$187.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

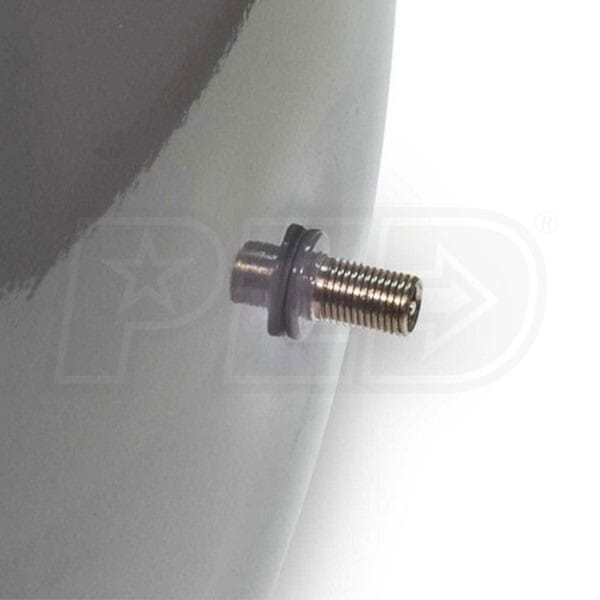

    In 1954, Amtrol invented the first expansion tank to control pressure build-up and energy consumption in heating and chilled water systems. More than 50 years later they are still the world?s leading expansion tank manufacturer. The FT expansion tank collects expanded water as system temperatures rise, reducing potentially dangerous pressure build-up. Ideal for residential applications, the FT is equipped with an automatic fill valve, 100 percent tested sealed air cushion, water-tight reservoir, air stem for pre-charge adjustment, and a deep drawn steel tank, all ensuring the reliability of your tank over the long haul. FT-110-100 also includes an air purger that separates water from air, as well as an automatic air vent that eliminates system air. This keeps your whole system running smoother, quieter, and more effectively.
  • FILL-TROL System
  • FT's FILL-TROL system eliminates the need for a separate fill valve, as it is built right into the tank, allowing tank pressure to control the system fill.
  • Heavy Duty Tank
  • From the deep drawn steel tank to the water-tight reservoir for expanded water, this thermal expansion tank is constructed for maximum strength and efficient energy consumption.
  • Eliminates Wasted Energy
  • Expanded water caused by thermal expansion is collected by the FT tank which returns the water back to your system which preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.
  • Protection for Your System
  • FT expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.
  • Air Vent
  • The included automatic air vent eliminates system air, keeping your system running smoothly.
  • Air Purger
  • The air purger separates air from water before sending the water into the expansion tank and air to the vent.
  • Product Includes
  • (1) Amtrol FT-110 Expansion Tank
  • (1) Amtrol 700-C Air Vent
  • (1) Amtrol 443 Air Purger
  • Product Includes
    • (1) Amtrol Fill-Trol - 4.4 Gallon - Expansion Tank & Fill Valve (FT-110)
    • (1) Amtrol 443-1 - 1" Air Purger (443)
    • (1) Amtrol Automatic Air Vent - 1/8" MPS (700-C)

Specifications

Product Includes
  • (1) Amtrol Fill-Trol - 4.4 Gallon - Expansion Tank & Fill Valve (FT-110)
  • (1) Amtrol 443-1 - 1" Air Purger (443)
  • (1) Amtrol Automatic Air Vent - 1/8" MPS (700-C)
FT-110-100
specs product image PID-23069
Overview
Product Category
Boiler Accessories
UPC
642031114600
General Information
Product Line
Fill-Trol
Product Category
Boiler Accessories
Connection Type
NPT
Performance
Maximum Operating Temperature
240 F
Maximum Operating Pressure
100 PSI
Dimensions
Storage Volume
4 Gallons
Maximum Acceptance Volume
2.5 Gallons
Connection Size
1/2 Inch
Product Diameter
11 Inches
Product Height
16 Inches
Product Weight
17 Pounds
Shipping Width
11 Inches
Shipping Height
23 Inches
Shipping Length
11 Inches
Shipping Weight
23 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
General Information
Product Line
Fill-Trol
Product Category
Boiler Accessories
Connection Type
NPT
Performance
Maximum Operating Temperature
240 F
Maximum Operating Pressure
100 PSI
Dimensions
Storage Volume
4 Gallons
Maximum Acceptance Volume
2.5 Gallons
Connection Size
1/2 Inch
Product Diameter
11 Inches
Product Height
16 Inches
Product Weight
12 Pounds
Shipping Width
11 Inches
Shipping Height
17 Inches
Shipping Length
11 Inches
Shipping Weight
17 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Boiler Accessories
General Information
Type
Air Purger
Product Category
Boiler Accessories
Connection Type
NPT
Material
Cast Iron
Performance
Maximum Operating Pressure
125 PSI
Dimensions
Connection Size
1 Inch
Product Height
4 Inches
Product Width
2 1/2 Inches
Product Length
6 Inches
Product Weight
4 Pounds
Shipping Weight
4 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Overview
Product Category
Boiler Accessories
General Information
Product Category
Boiler Accessories
Connection Type
MPS
Performance
Maximum Operating Temperature
240 F
Maximum Operating Pressure
150 PSI
Dimensions
Connection Size
1/8 Inch
Product Height
3 3/4 Inches
Product Width
2 Inches
Product Length
2 Inches
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Boiler Accessories
