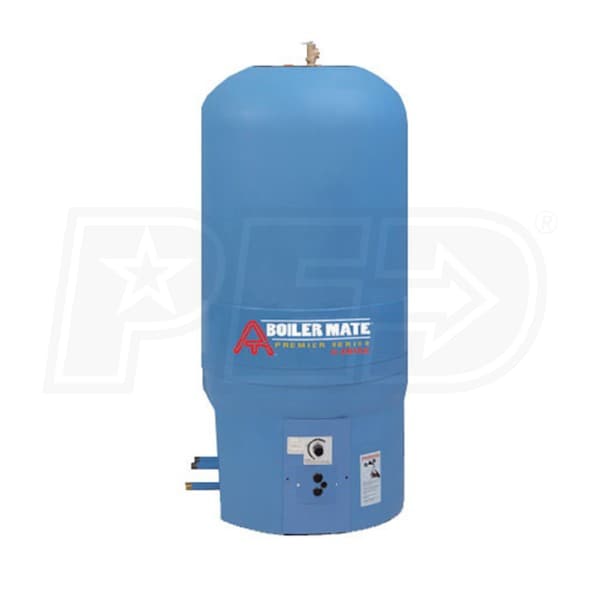

Amtrol DC-80DW - 80 Gal. - Double Wall Indirect Water Heater

Model:

DC-80DW

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Amtrol DC-80DW - 80 Gal. -  Double Wall Indirect Water Heater
Amtrol DC-80DW - 80 Gal. - Double Wall Indirect Water Heater
Model: DC-80DW
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Amtrol has made a name for itself by engineering units to meet almost any need. The DC indirect-fired water heater is no different, because it is designed to handle the high demands of large residential and commercial applications at a lower cost. Twin heat exchangers deliver reliable hot water right when it is needed, and they can be piped separately if dual energy sources are being used. DC has a sleek look and it is constructed with a bottom drain valve for convenience, efficient insulation that minimizes heat loss, and a large 316L stainless steel water reservoir. The DC is equipped with a digital control that provides you with built-in relays and diagnostics. This water heater is equipped with an aquastat that allows for easy control and a double walled coil for regional code compliance.

    Product Features

    Dual Coils
    Dual heat exchangers allow for maximum recovery and may be piped separately for dual energy solutions.

    Bottom Mounted Drain Valve
    A pre-installed bottom mounted drain valve completely empties the tank while a sediment trap captures and flushes debris that would otherwise be left in the tank.

    Durable Heat Exchanger
    The heat exchanger is removable allowing for easy service, has a scale resistant coating, and meets stringent codes.

    Stainless Steel Tank
    The tank is constructed from high grade 316-L stainless steel which provides fresh, clean water, while a urethane insulation prevents heat loss.

Specifications

DC-80DW
specs product image PID-23052
General Information
Product Line
Premier
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Connection Type
Sweat
Material
Stainless Steel
UPC
642031584182
Performance
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
340 Gallons
Continuous Recovery Rate
344 Gallons
Dimensions
Storage Volume
80 Gallons
Connection Size
3/4 Inch
Product Diameter
26 Inches
Product Height
66 Inches
Shipping Width
26 Inches
Shipping Height
66 Inches
Shipping Length
26 Inches
Certifications
Country of Origin
USA
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
