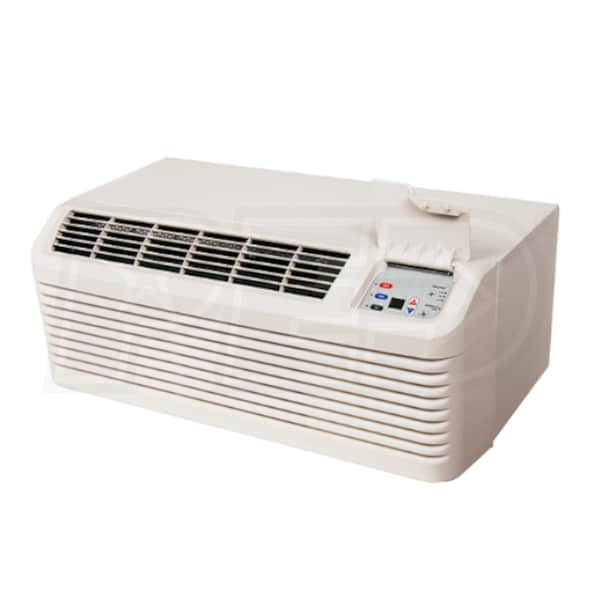

Amana 11,500 BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 5 kW Electric Heat - 208-230 Volt
Model:
PTH123G50AXXX
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Bob, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
The Amana PTH123G50AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.
Product Features
Condensate Dispersion System
The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.
Fan-Off Delay
After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.
Quiet Operation
Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.
Product Note
PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
PTH123G50AXXX
Overview
Product Category
PTAC Unit
General Information
Type
PTAC
Product Line
PTH
Product Category
PTAC Unit
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Electric Heat
Yes
Performance
Nominal Cooling Capacity
12000 BTU
Heating BTU
14000
Electric Heat Capacity
5 kW
Moisture Removal
3.6 Pints/Hour
Heating Capacity (kW)
5.0 kW
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.0
Maximum Air Flow
290 CFM
Minimum Air Flow
264 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
34.3 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
115 Pounds
Shipping Weight
132 Pounds
Certifications
Country of Origin
United States
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
