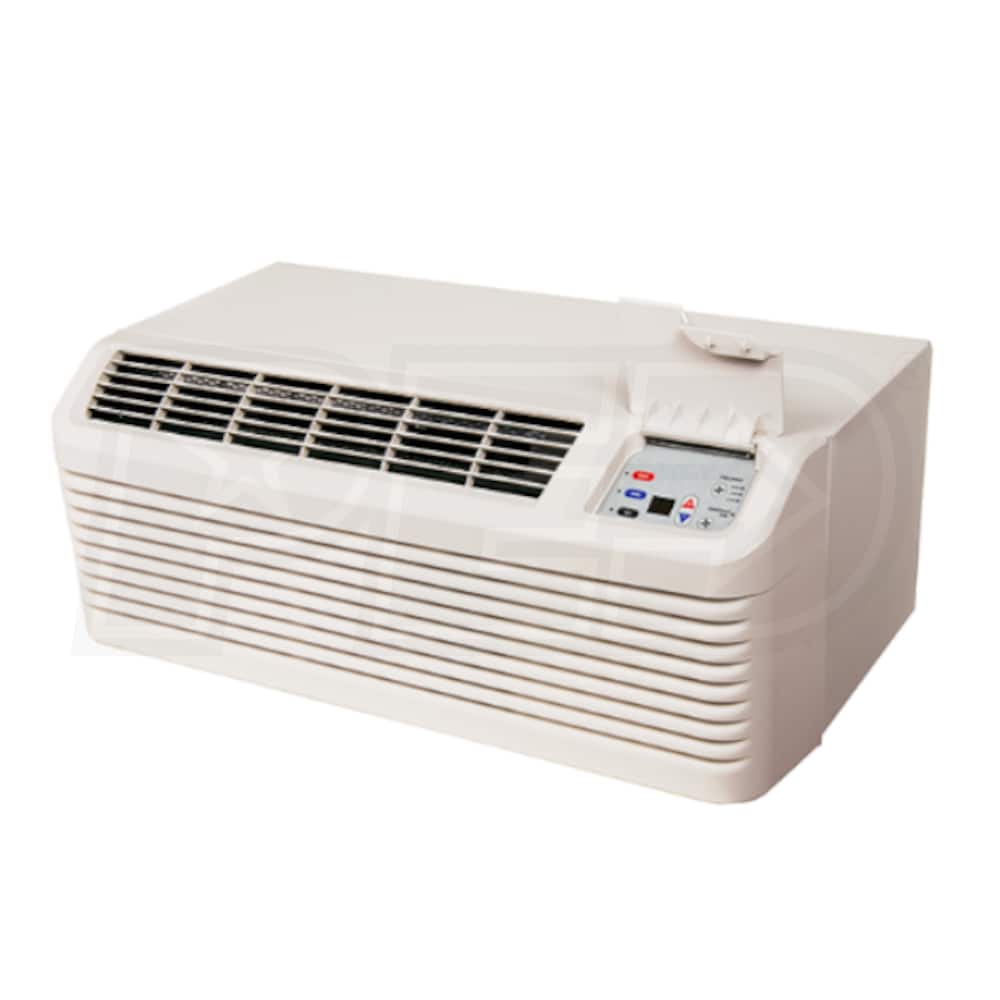

Amana 9,000 BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.5 kW Electric Heat - 208-230 Volt

Amana 9,000 BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.5 kW Electric Heat - 208-230 Volt
Model: PTH093G35AXXX
$876.59
In-Stock
Ships Wednesday, Jan 17th
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons

In-Stock
Ships Wednesday, Jan 17th
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    The Amana PTH096G35AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.

    Product Features

    Condensate Dispersion System
    The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.

    Fan-Off Delay
    After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.

    Quiet Operation
    Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.

Specifications
General Information
Type
PTAC
Product Line
PTH
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Electric Heat
Yes
Performance
Moisture Removal
2.2 Pints/Hour
Heating Capacity
3.5 kW
Nominal Heating Capacity
8300 BTU
Nominal Cooling Capacity
9000 BTU
Electric Heat Capacity
3.5 kW
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Minimum Air Flow
264 CFM
Maximum Air Flow
290 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24.4 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
16.0625 Inches
Product Width
42 Inches
Product Depth
21.5 Inches
Product Weight
112 Pounds
Shipping Weight
127 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Certifications
Country of Origin
United States
AHRI Certified
Yes
Features
Features

    The Amana PTH096G35AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.

    Product Features

    Condensate Dispersion System
    The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.

    Fan-Off Delay
    After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.

    Quiet Operation
    Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.

Specifications
General Information
Type
PTAC
Product Line
PTH
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Electric Heat
Yes
Performance
Moisture Removal
2.2 Pints/Hour
Heating Capacity
3.5 kW
Nominal Heating Capacity
8300 BTU
Nominal Cooling Capacity
9000 BTU
Electric Heat Capacity
3.5 kW
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Minimum Air Flow
264 CFM
Maximum Air Flow
290 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24.4 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
16.0625 Inches
Product Width
42 Inches
Product Depth
21.5 Inches
Product Weight
112 Pounds
Shipping Weight
127 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Certifications
Country of Origin
United States
AHRI Certified
Yes
Product Specs
+
Specifications
General Information
Type
PTAC
Product Line
PTH
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Electric Heat
Yes
Performance
Moisture Removal
2.2 Pints/Hour
Heating Capacity
3.5 kW
Nominal Heating Capacity
8300 BTU
Nominal Cooling Capacity
9000 BTU
Electric Heat Capacity
3.5 kW
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Minimum Air Flow
264 CFM
Maximum Air Flow
290 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24.4 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
16.0625 Inches
Product Width
42 Inches
Product Depth
21.5 Inches
Product Weight
112 Pounds
Shipping Weight
127 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Certifications
Country of Origin
United States
AHRI Certified
Yes
Reviews
(1)
+
Amana PTH093G35AXXX Reviews & Ratings
Product Q&A
+
Be the first to ask a question.
How-To Articles
+
Manuals
+


×
