Amana PTC153G35AXXX
Amana PTC153G35AXXX
Hover to zoom
1 Of 5

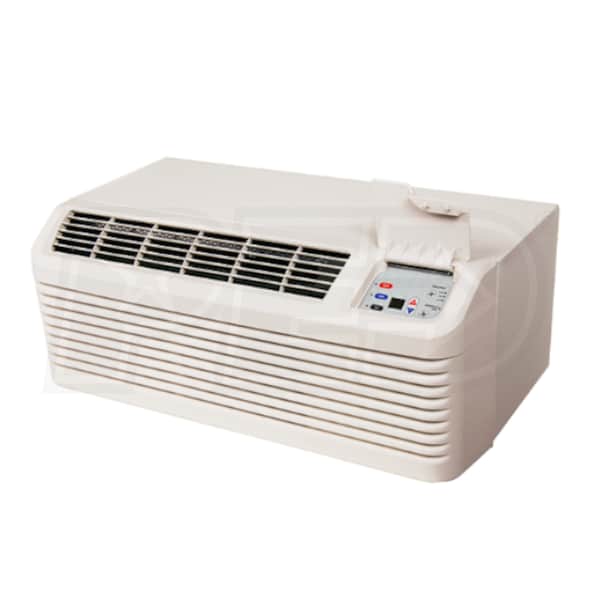

Amana 15k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - 3.5 kW Electric Heat - 208-230 Volt
Model: PTC153G35AXXX
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Number of Reviews(6)
Write a Review
$860.00
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-3 Business Days
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Cooling Capacity (BTU/Hr)
Voltage (Volts)
Unit Quantity
Corrosion Protection
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 6
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The Amana PTC153G35AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.
  • Condensate Dispersion System
  • The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.
  • Fan-Off Delay
  • After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.
  • Quiet Operation
  • Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.
  • Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
Specifications
General Information
Type
PTAC
Product Line
PTC
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Electric Heat
Electric Heat
Yes
UPC
093645902945
Performance
Cooling BTU
15000
Cooling Capacity
15000 BTU
Moisture Removal
4.4 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.0
Cooling Power Input
1500 Watts
Maximum Air Flow
360 CFM
Minimum Air Flow
314 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7 Amps
Recommended Breaker Size
20 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
117 Pounds
Shipping Weight
134 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    The Amana PTC153G35AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.
  • Condensate Dispersion System
  • The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.
  • Fan-Off Delay
  • After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.
  • Quiet Operation
  • Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.
  • Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
