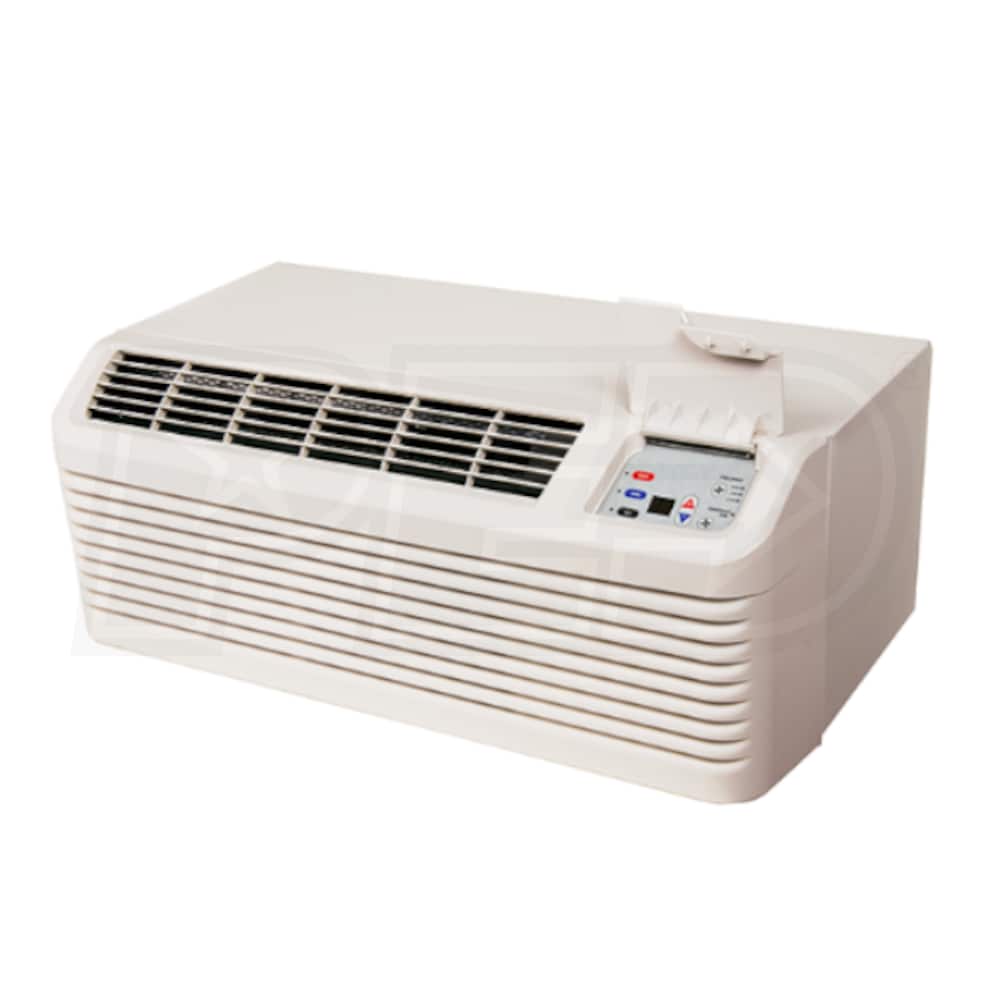

Amana 9k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - 3.5 kW Electric Heat - 208-230 Volt

Amana 9k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - 3.5 kW Electric Heat - 208-230 Volt
Our Price
Compare Prices
Shipping Info
Model: PTC093G35AXXX
(Based on expert analysis, manufacturer ratings and customer reviews)
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
Number of Reviews (3)
Write A Review
$799.00

In-Stock
Ships Monday, Dec 16th
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Cooling Capacity (BTU/Hr)
Voltage (Volts)
Unit Quantity
Corrosion Protection
Add-Ons
Free Shipping$799.00Buy Now
$799.00Visit Site
In-Stock
Ships Monday, Dec 16th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The Amana PTC093G35AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.
  • Condensate Dispersion System
  • The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.
  • Fan-Off Delay
  • After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.
  • Quiet Operation
  • Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.
  • Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
Specifications
General Information
Type
PTAC
Product Line
PTC
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Electric Heat
Electric Heat
Yes
UPC
663051475434
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Moisture Removal
2.2 Pints/Hour
EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.3
Cooling Power Input
805 Watts
Maximum Air Flow
310 CFM
Minimum Air Flow
264 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
4.1 Amps
Recommended Breaker Size
20 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
103 Pounds
Shipping Weight
118 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    The Amana PTC093G35AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.
  • Condensate Dispersion System
  • The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.
  • Fan-Off Delay
  • After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.
  • Quiet Operation
  • Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.
  • Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
