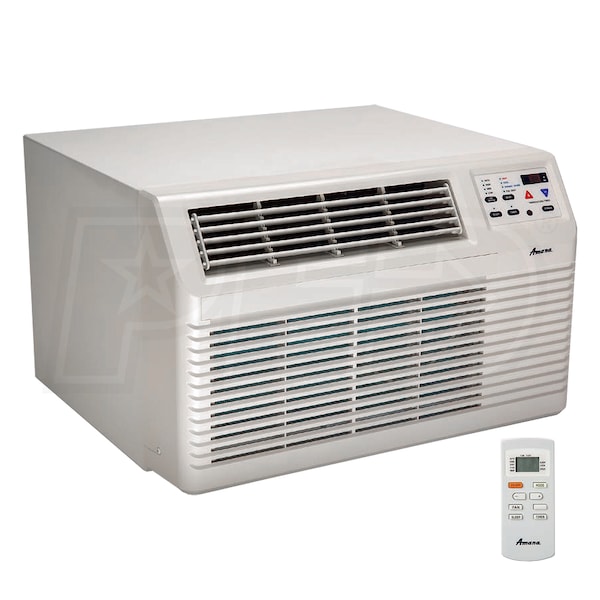

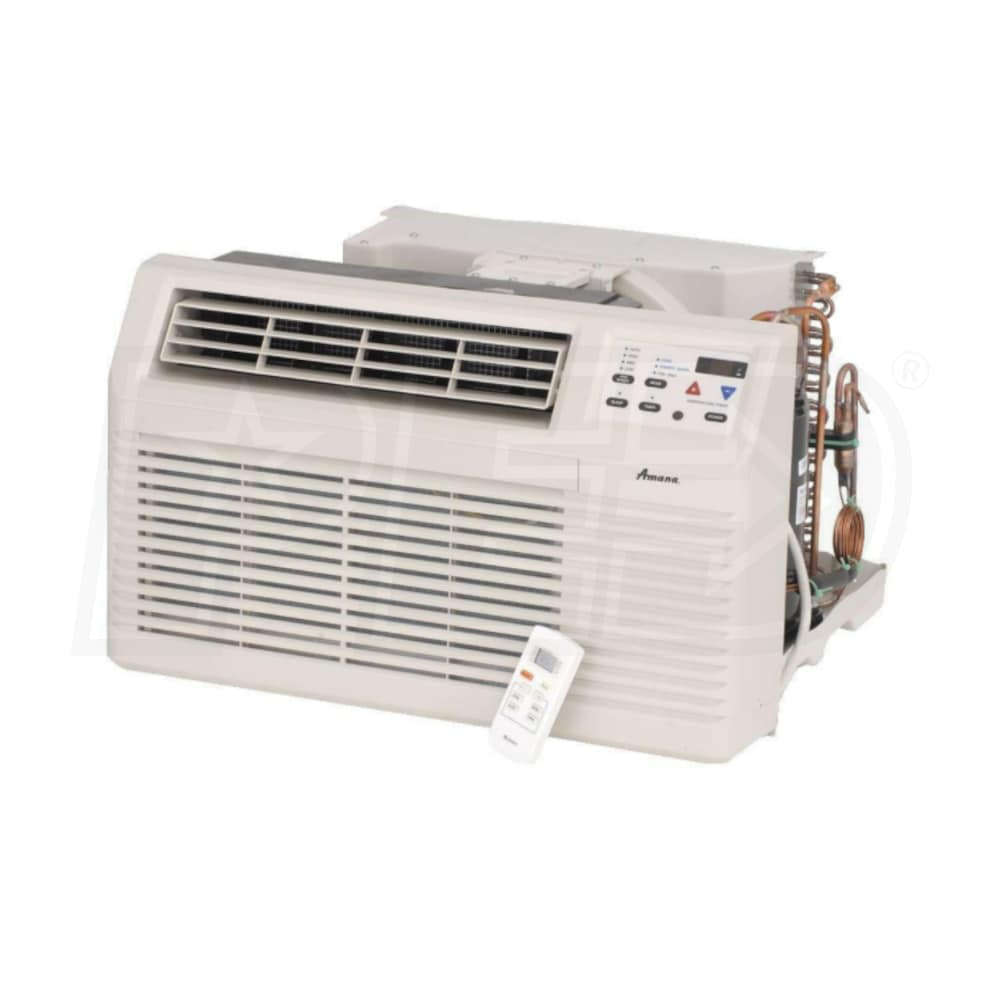

Amana PBH09 - 9,000 BTU - Wall Heat Pump - 3.5 kW Electric Heat - 208/230V

Model:

PBH093G35CC

Write A Review
$910.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$152 / Month
Suggested monthly payments with 6 month financing.
Amana PBH09 - 9,000 BTU - Wall Heat Pump - 3.5 kW Electric Heat - 208/230V
Amana PBH09 - 9,000 BTU - Wall Heat Pump - 3.5 kW Electric Heat - 208/230V
Model: PBH093G35CC
$910.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Looking for complete room comfort without breaking the bank on a central air system? The Amana PBH09 is a powerful 9,000 BTU through-the-wall heat pump that features high-efficiency operation with an array of convenient features. With both heating and cooling capabilities, the PBH09 will keep your room comfortable no matter the season.
  • Heating and Cooling
  • Unlike most through-the-wall air conditioners, the PBH09 is a heat pump that provides both heating and cooling operation. The PBH09 also features electric heating for lower heat applications.
  • Two Speed Fan
  • Adjust the settings to cater to your needs by choosing between two separate fan speeds to find the best air output and noise levels.
  • Wireless Remote Included
  • There's no need to get up and walk across the room to change the temperature or settings. The PBH09 comes with a wireless remote to easily switch between modes and adjust the set temperature.
  • Slide-Out Filter
  • The PBH09 includes an easily accessible front slide-out filter that can be cleaned and used throughout the life of the heat pump.
  • Removable Condenser Top
  • The PBH09 features a removeable condenser top that allows for quick and complete cleaning of the outdoor coils.
  • Product Note
    The PBH093G35CC does not include a wall sleeve. Please see Accessories for the wall sleeve.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
Plug Type (NEMA 6-20P): This appliance uses NEMA 6-20P standard size power plug. It's designed for a 240V 20A household power supply. Please verify that your home's power supply is compatible with this appliance before purchase.
PBH093G35CC
specs product image PID-100210
Overview
Product Category
Air Conditioner - Room-Window
General Information
Type
Through-the-Wall Heat Pump
Product Line
PBH
Product Category
Air Conditioner - Room-Window
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Remote Control
Included
Blower Motor Speed
2-Speed
Programmability
No
Electric Heat
Yes
Interface
Electronic
Color
White
Installation Type
Through-the-Wall
Performance
Cooling Capacity
9100 BTU
Heating Capacity
8600 BTU
Electric Heat Capacity
3.5 kW
Moisture Removal
2.3 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.7
Cooling Power Input
960 Watts
Heating Power Input
860 Watts
Electrical Data
Plug Type
NEMA 6-20P
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Current Draw
4.8 Amps
Dimensions
Product Height
15 5/8 Inches
Product Width
26 Inches
Product Depth
21 7/8 Inches
Product Weight
96 Pounds
Shipping Weight
106 Pounds
Power Cord Length
6 Feet
Certifications
UL Listed
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
