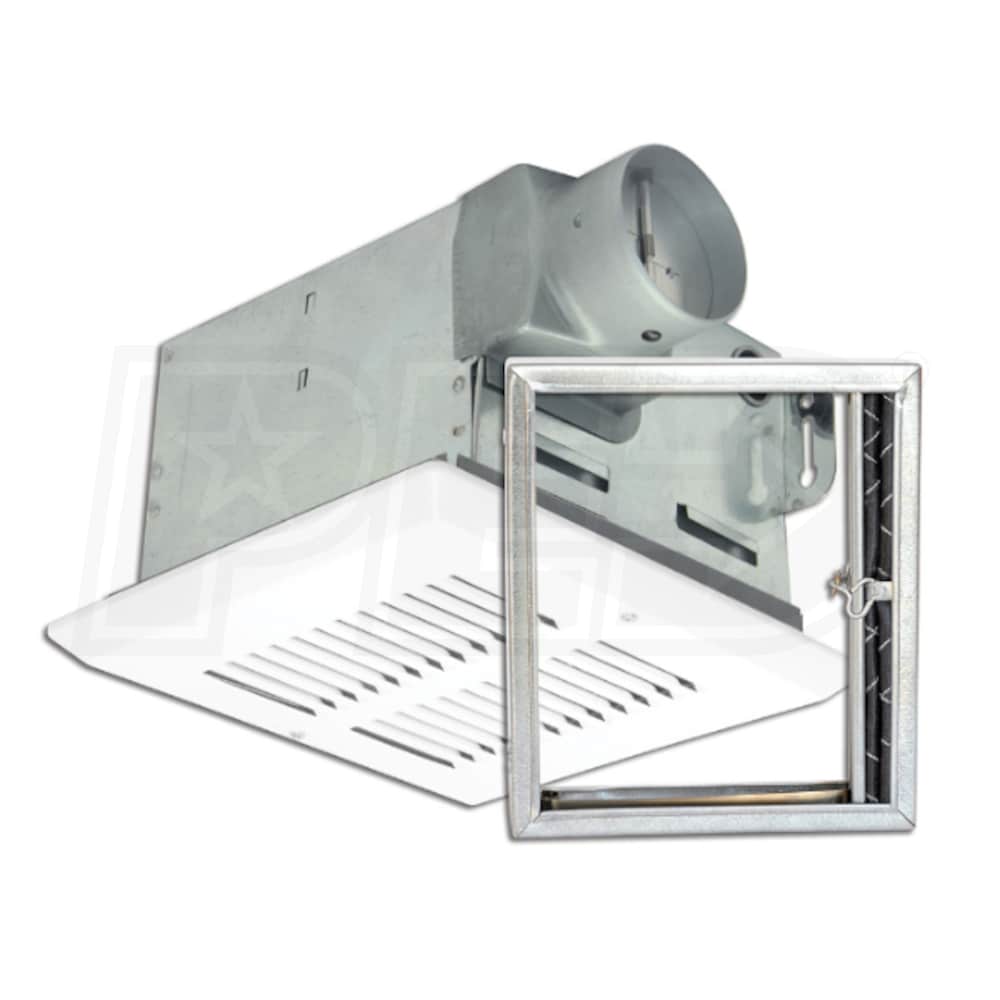

Air King FRAS50 - 50 CFM - Fire Rated Bathroom Exhaust Fan - 3" Duct
Model: FRAS50
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$70.26
In-Stock
Ships in 2-3 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Air Flow (CFM)
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    For over forty years and counting, Air King continues to demonstrate their reputation for making high quality ventilation products. The Air King FRAS50 is a 50 CFM bathroom exhaust fan with a low-profile grille that blends right into the ceiling. This Air King line of fire rated exhaust fans have been tested and UL listed for use in wood frame construction. They are designed to automatically shut off and seal the duct if high temperatures are detected. The FRAS50 is simple to install with included adjustable hanging brackets and features a 3-inch metal duct collar with a built-in damper to protect against backdrafts. Effective for areas up to 60 square feet, the Air King FRAS50 can provide exceptional ventilation in most home applications.
  • Fire Rated System
  • The FRAS50 exhaust fan is UL rated to be installed into wood frame construction and are designed to automatically shut off and seal the duct if high temperatures are detected.
  • Back Draft Damper
  • A metallic, fire rated back draft damper comes included with the FRAS50 to eliminate back drafts and keep volume levels to a minimum.
  • Low-Profile Grille
  • The low-profile grille featured on the FRAS50 sits nearly flush with the ceiling, preventing the fan from detracting from your bathroom aesthetic while still adhering to fire rating regulations.
  • Simple Installation
  • Adjustable mounting brackets included with the FRAK80 allow for quick and easy installation.
  • Warranty
  • Every Air King product is warranted against defects in workmanship and materials for 1 year from the date of the purchase. During the warranty period, Air King will repair or replace any defective parts, or replace the entire product.
Specifications
General Information
Type
Bathroom Fan
Mount Type
Ceiling
Color
White
Housing Material
Steel
Includes Light
No
UPC
083162253125
Performance
Maximum Air Flow
50 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
3 Sones
RPM
2125 RPM
Electrical Data
Voltage
120 Volts
Power Consumption
48 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.9 Amps
Dimensions
Duct Connection
3 Inches
Product Height
5 7/8 Inches
Product Width
7 7/8 Inches
Product Length
7 3/8 Inches
Certifications
Country of Origin
United States
ETL Listed
Yes
Features
Features
    For over forty years and counting, Air King continues to demonstrate their reputation for making high quality ventilation products. The Air King FRAS50 is a 50 CFM bathroom exhaust fan with a low-profile grille that blends right into the ceiling. This Air King line of fire rated exhaust fans have been tested and UL listed for use in wood frame construction. They are designed to automatically shut off and seal the duct if high temperatures are detected. The FRAS50 is simple to install with included adjustable hanging brackets and features a 3-inch metal duct collar with a built-in damper to protect against backdrafts. Effective for areas up to 60 square feet, the Air King FRAS50 can provide exceptional ventilation in most home applications.
  • Fire Rated System
  • The FRAS50 exhaust fan is UL rated to be installed into wood frame construction and are designed to automatically shut off and seal the duct if high temperatures are detected.
  • Back Draft Damper
  • A metallic, fire rated back draft damper comes included with the FRAS50 to eliminate back drafts and keep volume levels to a minimum.
  • Low-Profile Grille
  • The low-profile grille featured on the FRAS50 sits nearly flush with the ceiling, preventing the fan from detracting from your bathroom aesthetic while still adhering to fire rating regulations.
  • Simple Installation
  • Adjustable mounting brackets included with the FRAK80 allow for quick and easy installation.
  • Warranty
  • Every Air King product is warranted against defects in workmanship and materials for 1 year from the date of the purchase. During the warranty period, Air King will repair or replace any defective parts, or replace the entire product.
Specifications
General Information
Type
Bathroom Fan
Mount Type
Ceiling
Color
White
Housing Material
Steel
Includes Light
No
UPC
083162253125
Performance
Maximum Air Flow
50 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
3 Sones
RPM
2125 RPM
Electrical Data
Voltage
120 Volts
Power Consumption
48 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.9 Amps
Dimensions
Duct Connection
3 Inches
Product Height
5 7/8 Inches
Product Width
7 7/8 Inches
Product Length
7 3/8 Inches
Certifications
Country of Origin
United States
ETL Listed
Yes
Product Specs
+
Specifications
General Information
Type
Bathroom Fan
Mount Type
Ceiling
Color
White
Housing Material
Steel
Includes Light
No
UPC
083162253125
Performance
Maximum Air Flow
50 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
3 Sones
RPM
2125 RPM
Electrical Data
Voltage
120 Volts
Power Consumption
48 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.9 Amps
Dimensions
Duct Connection
3 Inches
Product Height
5 7/8 Inches
Product Width
7 7/8 Inches
Product Length
7 3/8 Inches
Certifications
Country of Origin
United States
ETL Listed
Yes
