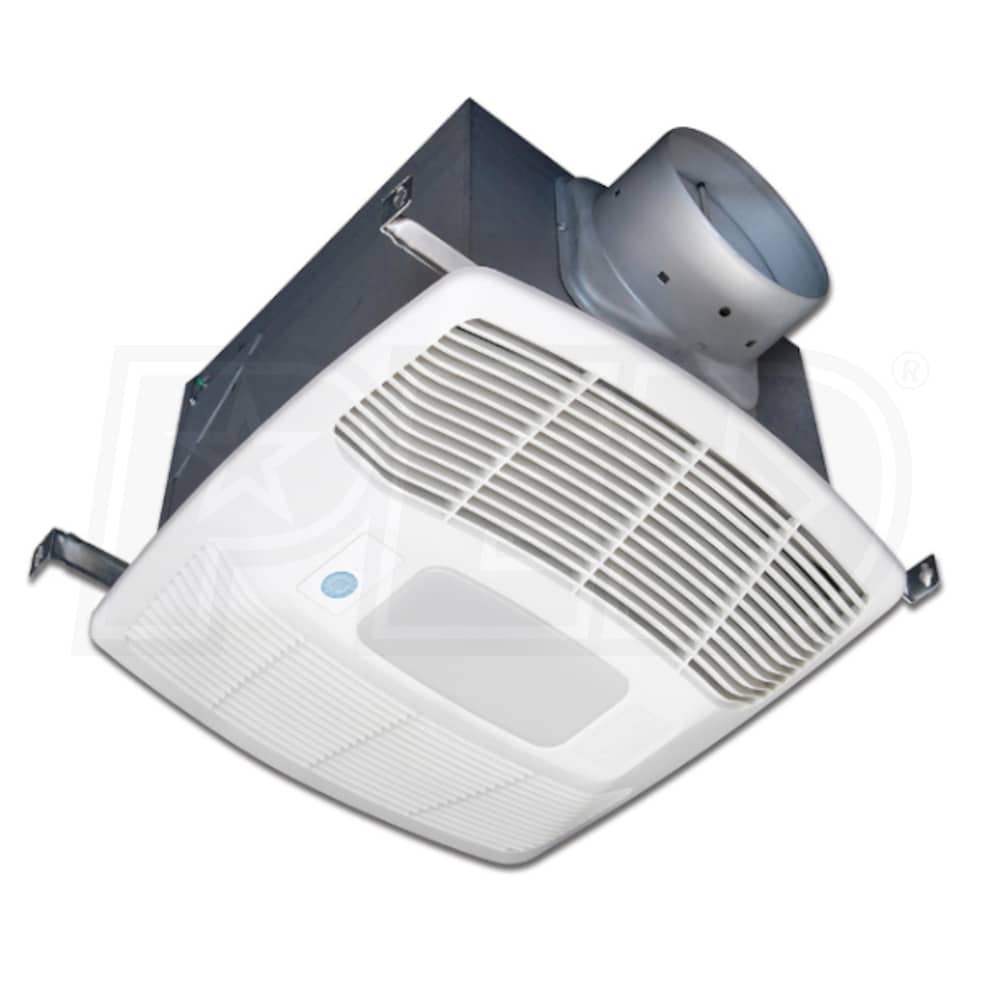

Air King EL130SGH - 130 CFM - Humidity and Motion Sensing Bathroom Exhaust Fan with BOOST Setting - 6" Duct - With Light

Model:

EL130SGH

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Air King EL130SGH - 130 CFM - Humidity and Motion Sensing Bathroom Exhaust Fan with BOOST Setting - 6
Air King EL130SGH - 130 CFM - Humidity and Motion Sensing Bathroom Exhaust Fan with BOOST Setting - 6" Duct - With Light
Model: EL130SGH
Was $252.00
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    For over forty years and counting, Air King continues to demonstrate their reputation for making high quality ventilation products. The Air King E130SGH is a 130 CFM bathroom exhaust fan with a low-profile grille that blends right into the ceiling. The integrated humidistat senses the humidity level of the room and automatically turns the fan on until the humidity level is below a preset percentage. The E130SGH also includes a motion sensor that automatically turns the fan on when the room is occupied. The E130SGH is simple to install with included adjustable hanging brackets and features a 6-inch plastic duct collar with a built-in damper to protect against backdrafts and ensure quiet operation. At less than 0.3 sones, the E130SGH is truly a quiet fan. Effective for areas up to 160 square feet, the Air King E130SGH can provide exceptional ventilation in any home application.
  • Quiet Operation
  • With an air flow of 130 CFM and a sound level of less than 0.3 sones, the Air King E130SGH provides effective ventilation while being one of the quietest bathroom fans on the market.
  • BOOST Setting
  • The E130SGH features an optional BOOST setting for homes with high static pressure duct systems, ensuring the fan is operating at the proper CFM.
  • Humidity and Motion Sensing
  • The E130SGH features an integrated humidistat that senses the humidity in the room and automatically turns off the fan when humidity levels fall below a set level. A motion sensor turns the fan on when motion is detected.
  • Backdraft Damper
  • A non-metallic backdraft damper comes included with every Air King bathroom exhaust fan to eliminate back drafts and keep volume levels to a minimum.
  • Low-Profile Grille
  • The low-profile grille featured on the E130SGH sits nearly flush with the ceiling, preventing the fan from detracting from your bathroom aesthetic.
  • Simple Installation
  • Adjustable mounting brackets included with the E130SGH allow for quick and easy installation.
  • Warranty
  • Every Air King product is warranted against defects in workmanship and materials for 1 year from the date of the purchase. During the warranty period, Air King will repair or replace any defective parts, or replace the entire product.

Specifications

EL130SGH
specs product image PID-80033
General Information
Type
Bathroom Fan
Product Line
ECO
Mount Type
Ceiling
Color
White
Housing Material
Steel
Includes Light
Yes
UPC
083162942029
Performance
Maximum Air Flow
130 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
0.3 Sones
RPM
783 RPM
Electrical Data
Voltage
115/120 Volts
Power Consumption
37 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.7 Amps
Dimensions
Duct Connection
6 Inches
Product Height
9 7/8 Inches
Product Width
17 Inches
Product Length
15 7/8 Inches
Shipping Weight
18 Pounds
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
