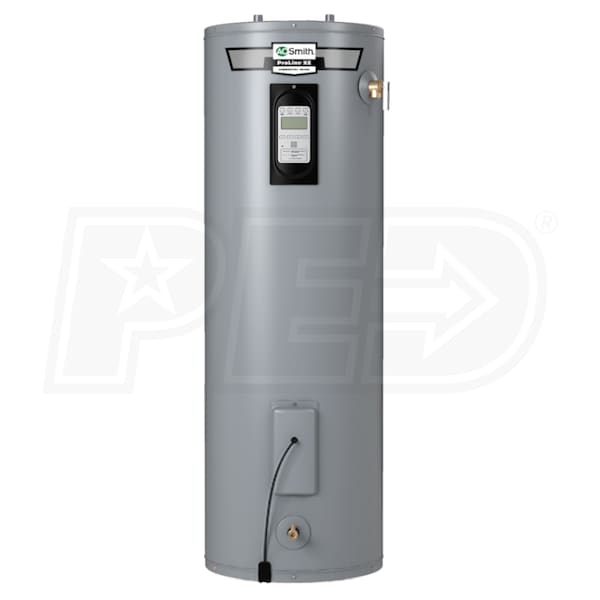

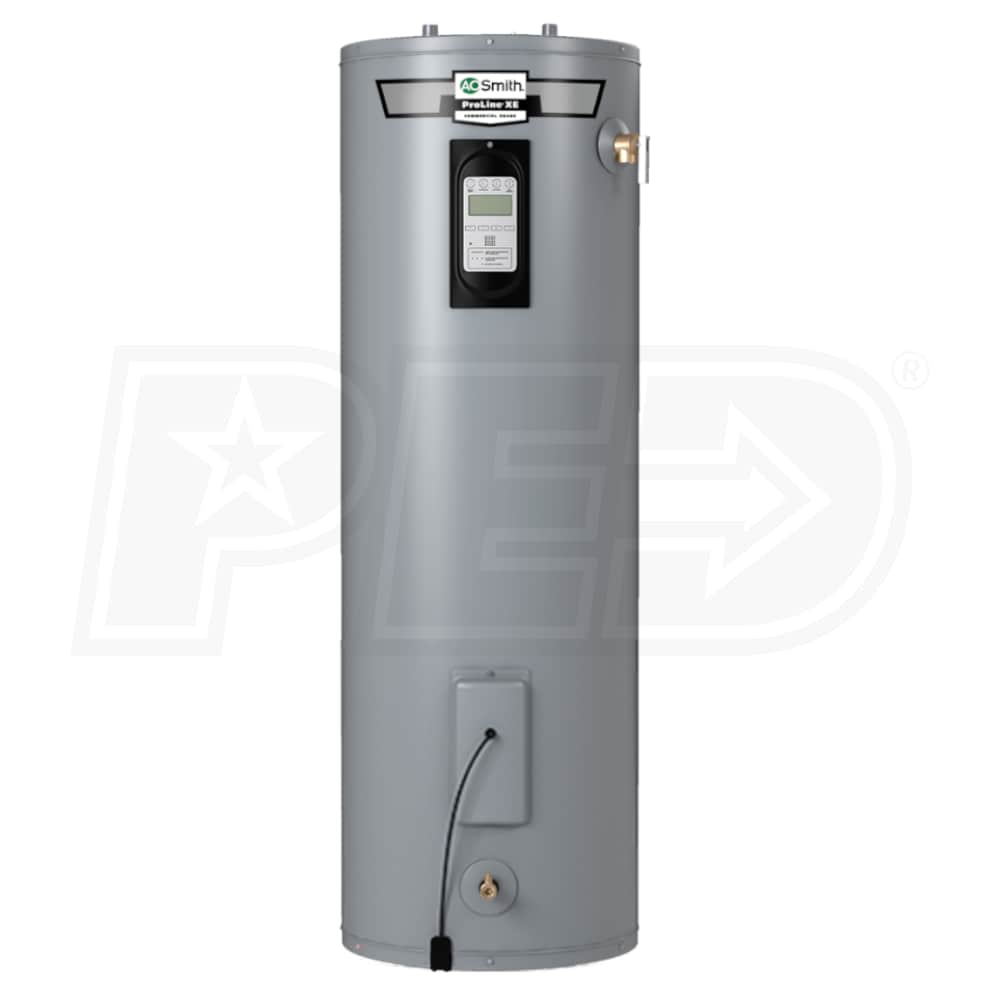

A.O. Smith ProLine® XE - 240V Single Phase Water Heater - 40 Gal. Storage - 59 Gal. First Hour Delivery - 0.93 UEF - Leak Detection - Tall

Model:

PXGT-40

Write A Review
$1,096.97
Shipping Not Available
synchrony card logo
$183 / Month
Suggested monthly payments with 6 month financing.
A.O. Smith ProLine® XE - 240V Single Phase Water Heater - 40 Gal. Storage - 59 Gal. First Hour Delivery - 0.93 UEF - Leak Detection - Tall
A.O. Smith ProLine® XE - 240V Single Phase Water Heater - 40 Gal. Storage - 59 Gal. First Hour Delivery - 0.93 UEF - Leak Detection - Tall
Model: PXGT-40
$1,096.97
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    A.O. Smith has led the way in innovative hot water solutions for nearly 80 years. With unmatched quality and diversity, A.O. Smith can provide hot water anywhere it's needed. The A.O. Smith ProLine® XE is a commercial-grade residential electric water heater featuring an electronic display and leak detection. The simple-to-use touchscreen display has multiple operating modes for improved efficiency and provides diagnostic feedback for your convenience. The enhanced heating elements in the ProLine® XE feature dual 4,500 watt elements, allowing for faster recovery. The ProLine® XE is equipped with the DynaClean™ system, reducing sediment buildup. Featuring a CoreGard™ anode rod with a stainless steel core, the A.O. Smith ProLine® XE series has an extended life due to superior tank protection.
  • Leak Detection Sensor
  • With built-in leak detection, the A.O. Smith ProLine® XE sounds an audible alarm when water is detected.
  • Electronic Interface
  • The touchscreen displays multiple operating modes like energy saver and vacation modes, that provide increased efficiency. The interface also provides diagnostic feedback and dry fire protection.
  • Heating Elements
  • With dual 4,500 watt enhanced heating elements, the water heater delivers reliable operation and fast recovery times.
  • Brass Drain Valve
  • The solid brass, ball type, tamper resistant drain valve on the A.O. Smith ProLine® XE provides enhanced flow. Use with a standard female hose fitting for simple draining and maintenance.
  • Glass Coating
  • Featuring Blue Diamond® glass coating, the ProLine® XE has better corrosion resistance compared to standard glass lining.
  • Warranty
  • 10 Year Parts
  • 10 Year Tank

Specifications

PXGT-40
specs product image PID-117120
Overview
Product Category
Water Heater - Tank
UPC
671657250652
General Information
Type
Electric Water Heater
Product Line
ProLine XE
Product Category
Water Heater - Tank
Delivery Options
Pickup Only
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Storage Type
Tank
Application
Residential
Mount Type
Floor
Performance
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
59 Gallons
Uniform Energy Factor Learn More
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.93
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Dimensions
Storage Volume
40 Gallons
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
60 1/4 Inches
Product Width
20 Inches
Product Depth
20 Inches
Shipping Weight
118 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
206445813
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Vessel Warranty
10 Years
