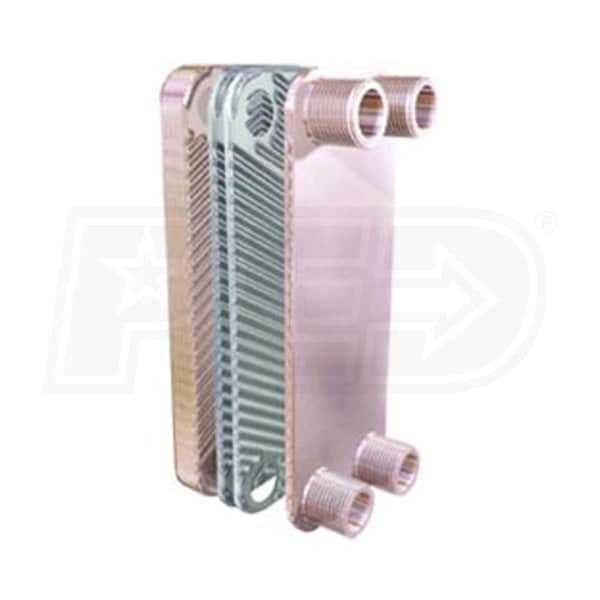

AIC Alliance LC110-50DWRB, Brazed Flat Plate to Plate Heat Exchanger - Double Wall

AIC Alliance LC110-50DWRB, Brazed Flat Plate to Plate Heat Exchanger - Double Wall
Our Price
Compare Prices
Shipping Info
Model: LC110-50DWRB
$3,657.95
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping

Factory-Direct
Ships in 4-7 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    AIC LC110-50DWRB Brazed Flat Plate to Plate Heat Exchanger is designed with copper double wall plates and stainless steel connections. L-line heat exchangers have a working temperature up to 445-degrees F. Typical applications include potable water heating and domestic hot water heating. The LC110-50DWRB has a working pressure up to 481 psi.
  • AIC Alliance LC110-50DWRB Features
  • Copper double wall plate
  • Stainless steel connections
  • Working pressure up to 481 psi
  • Working temperature up to 445-degrees F
  • 2-1/2" MPT connections
Specifications
General Information
Product Line
L-Line
Refrigerant Type
Hydronic
Casing
Uncased
Shape
Slab
Dimensions
Supply Connection
2.5 Inches
Return Connection
2.5 Inches
Product Height
20.9 Inches
Product Width
9.8 Inches
Product Weight
20 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Features
Features
    AIC LC110-50DWRB Brazed Flat Plate to Plate Heat Exchanger is designed with copper double wall plates and stainless steel connections. L-line heat exchangers have a working temperature up to 445-degrees F. Typical applications include potable water heating and domestic hot water heating. The LC110-50DWRB has a working pressure up to 481 psi.
  • AIC Alliance LC110-50DWRB Features
  • Copper double wall plate
  • Stainless steel connections
  • Working pressure up to 481 psi
  • Working temperature up to 445-degrees F
  • 2-1/2" MPT connections
Specifications
General Information
Product Line
L-Line
Refrigerant Type
Hydronic
Casing
Uncased
Shape
Slab
Dimensions
Supply Connection
2.5 Inches
Return Connection
2.5 Inches
Product Height
20.9 Inches
Product Width
9.8 Inches
Product Weight
20 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Product Specs
+
Specifications
General Information
Product Line
L-Line
Refrigerant Type
Hydronic
Casing
Uncased
Shape
Slab
Dimensions
Supply Connection
2.5 Inches
Return Connection
2.5 Inches
Product Height
20.9 Inches
Product Width
9.8 Inches
Product Weight
20 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
What is the difference between a single plate and a double plate heat exchanger?
Terry
from Connecticut
April 27, 2016
Answer
The single wall heat exchangers have just a single plate between the two fluids. If a leak develops it will allow the two fluids to mix. A double wall heat exchanger has two plates between the fluids with a small air gap between the plates. If a leak develops in this type of heat exchanger, the fluid will leak out of the air gap before the two fluids are allowed to mix. Double wall heat exchangers are often recommended or required for domestic hot water applications.
