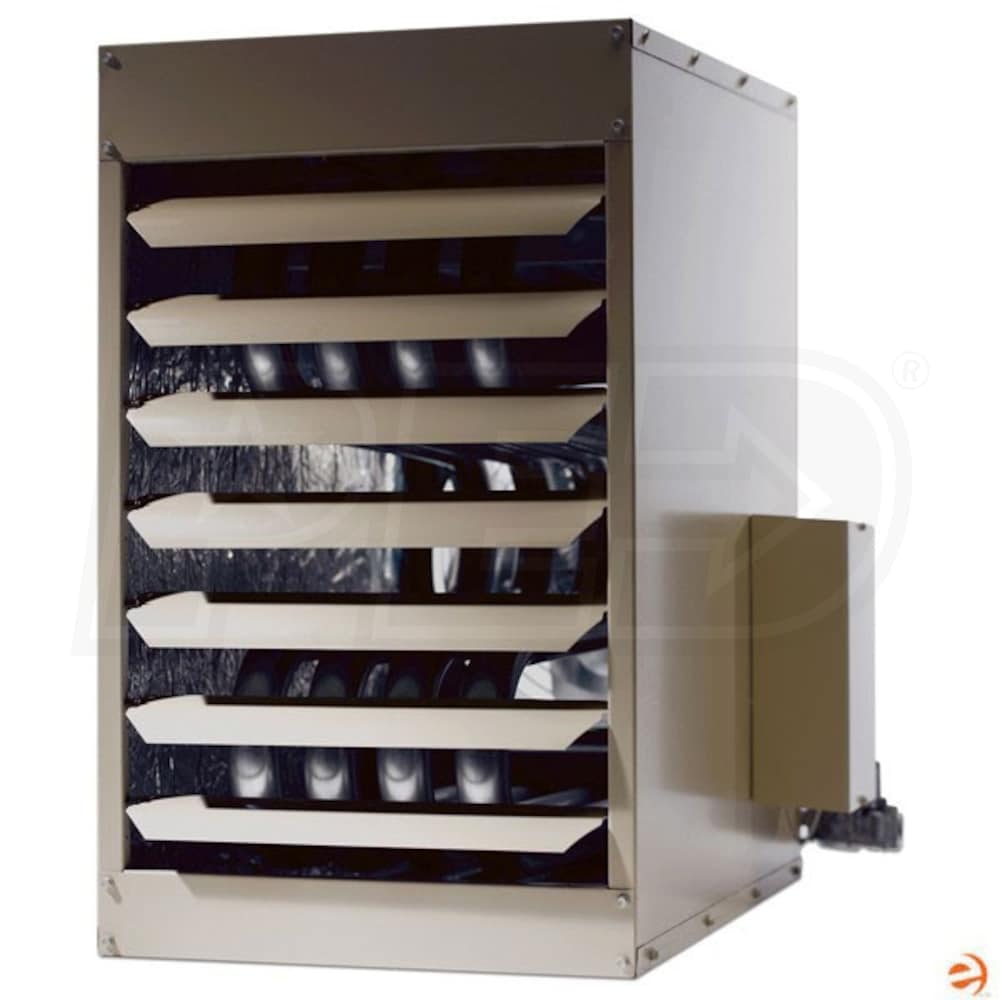

ADP SEP-175AN Standard Combustion Commercial Unit Heater, Aluminized Steel Heat Exchanger, NG - 175,000 BTU

Model:

SEP-175AN

Write a Review
$1,219.00
Closeout Item Icon
Closeout Item
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$204 / Month
Suggested monthly payments with 6 month financing.
ADP SEP-175AN Standard Combustion Commercial Unit Heater, Aluminized Steel Heat Exchanger, NG - 175,000 BTU
ADP SEP-175AN Standard Combustion Commercial Unit Heater, Aluminized Steel Heat Exchanger, NG - 175,000 BTU
Model: SEP-175AN
$1,219.00
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Introducing the SEP Series by ADP. These large commercial unit heaters are the perfect solution for heating warehouse and garage spaces. ADP's dedication for perfect quality products, extremely advanced designs, unique processes, propriety testing technologies and a trouble-free customer experience are integrated into the manufacturing process. The SEP series gas-fired propeller unit heaters deliver 80% thermal efficiency and 78% seasonal efficiency using natural gas or LPG in all models. This excellent efficiency sets a new standard for savings when using gas-fired unit heaters. The design of this unit heater has proven itself to be superior during the fourteen years and hundreds of thousands of hours of tough winter climate and laboratory life cycle testing under extreme conditions. The SEP has been designed to provide a long, trouble-free service life. Every heater undergoes continuous quality checks at all stages of manufacturing. After assembly, each heater is test fired and functionally tested to provide final assurance that it is performing in accordance with ADP's rigorous quality standards. Constructed on 18- to 22-gauge cold rolled steel, each cabinet has a pre-painted finish for superior resistance to corrosive elements. Each cabinet has a two-point (3/8" X 16" spotnut) suspension system for easy installation. The two fan models have four-point suspensions. Generous use of inside cabinet insulation keeps the outer surface temperatures low. The wiring junction box is conveniently located on the side of the cabinet for easy access and adequate protection.
  • Tubular Heat Exchanger
  • Constructed of aluminized steel for superior resistance to corrosion and oxidation. Additional protection is available with an optional stainless steel heat exchanger.
  • The curving design provides for complete exposure of the heating surface to the supply air stream. Rounded surfaces minimize air resistance and permit air to surround all heat transfer surfaces for excellent heat transfer.
  • Tubular design means lighter weight and significantly longer service life due to lower thermal-induced stresses.
  • Further, the tubular exchangers create less resistance to air flowing through the unit, therefore providing higher airflow and great throw distance of the heated air to the space.
  • Inshot burner
  • These lightweight aluminized steel burners are maintenance-free and never require adjustment. The burning venturi mixes air and gas in the correct proportion for efficient combustion. The entire burner assembly is removable for ease of service.
  • Direct spark ignition
  • In combination with the 24-volt main gas valve with 100% shutoff for safety, the direct spark ignition control provides reliable and safe main burner ignition. This eliminates the need for a pilot light, improving system efficiency and reliability.
  • Air distribution
  • All models are equipped with efficient, quiet, direct-drive propeller fans, which have been balanced for smooth operation. Heated air flows easily through the tubular heat exchangers and is effectively, directed to the heated space through outlet louvers.
  • Product Includes
  • A completely assembled heater
  • Installation and operation instructions
  • Warranty certificate
  • Flue transition
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

SEP-175AN
specs product image PID-30345
General Information
Heat Exchanger Material
Aluminized Steel
Fuel Type Learn More
Natural Gas
Vent Type Learn More
Power Vent
Configuration Learn More
Horizontal
Performance
Heating Capacity
138000 BTU
Maximum Input Capacity Learn More
172500 BTU
Efficiency
80 %
Air Throw
65 Feet
Maximum Air Flow
2200 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
5 Inches
Gas Piping Diameter
1/2 Inch
Product Height
32 3/16 Inches
Product Width
23 1/8 Inches
Product Depth
31 1/8 Inches
Product Weight
145 Pounds
Shipping Weight
185 Pounds
Warranty Information
Heat Exchanger Warranty
10 Years
