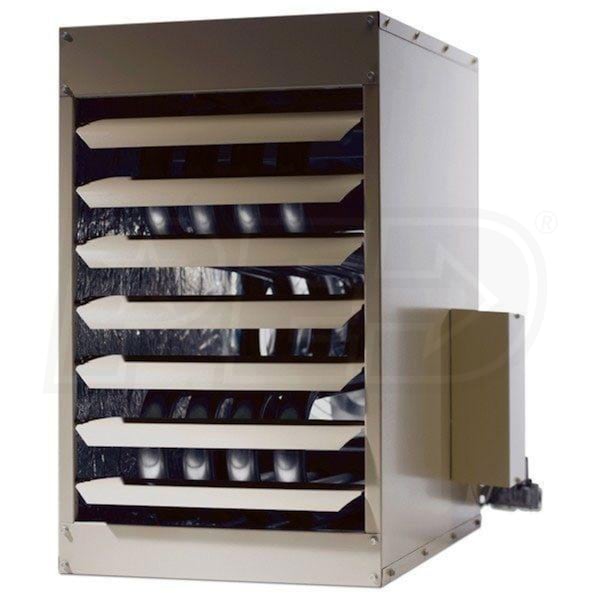

ADP SEP-115AN Standard Combustion Commercial Unit Heater, Aluminized Steel Heat Exchanger, NG - 115,000 BTU

ADP SEP-115AN Standard Combustion Commercial Unit Heater, Aluminized Steel Heat Exchanger, NG - 115,000 BTU
Our Price
Compare Prices
Shipping Info
Model: SEP-115AN
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$980.00
In-Stock
Ships Tuesday, Dec 11th
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Add-Ons

Free Shipping$980.00Buy Now
$980.00Visit Site
In-Stock
Ships Tuesday, Dec 11th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Introducing the SEP Series by ADP. These large commercial unit heaters are the perfect solution for heating warehouse and garage spaces. ADP's dedication for perfect quality products, extremely advanced designs, unique processes, propriety testing technologies and a trouble-free customer experience are integrated into the manufacturing process. The SEP series gas-fired propeller unit heaters deliver 80% thermal efficiency and 78% seasonal efficiency using natural gas or LPG in all models. This excellent efficiency sets a new standard for savings when using gas-fired unit heaters. The design of this unit heater has proven itself to be superior during the fourteen years and hundreds of thousands of hours of tough winter climate and laboratory life cycle testing under extreme conditions. The SEP has been designed to provide a long, trouble-free service life. Every heater undergoes continuous quality checks at all stages of manufacturing. After assembly, each heater is test fired and functionally tested to provide final assurance that it is performing in accordance with ADP's rigorous quality standards. Constructed on 18- to 22-gauge cold rolled steel, each cabinet has a pre-painted finish for superior resistance to corrosive elements. Each cabinet has a two-point (3/8" X 16" spotnut) suspension system for easy installation. The two fan models have four-point suspensions. Generous use of inside cabinet insulation keeps the outer surface temperatures low. The wiring junction box is conveniently located on the side of the cabinet for easy access and adequate protection.
  • Tubular Heat Exchanger
  • Constructed of aluminized steel for superior resistance to corrosion and oxidation. Additional protection is available with an optional stainless steel heat exchanger.
  • The curving design provides for complete exposure of the heating surface to the supply air stream. Rounded surfaces minimize air resistance and permit air to surround all heat transfer surfaces for excellent heat transfer.
  • Tubular design means lighter weight and significantly longer service life due to lower thermal-induced stresses.
  • Further, the tubular exchangers create less resistance to air flowing through the unit, therefore providing higher airflow and great throw distance of the heated air to the space.
  • Inshot burner
  • These lightweight aluminized steel burners are maintenance-free and never require adjustment. The burning venturi mixes air and gas in the correct proportion for efficient combustion. The entire burner assembly is removable for ease of service.
  • Direct spark ignition
  • In combination with the 24-volt main gas valve with 100% shutoff for safety, the direct spark ignition control provides reliable and safe main burner ignition. This eliminates the need for a pilot light, improving system efficiency and reliability.
  • Air distribution
  • All models are equipped with efficient, quiet, direct-drive propeller fans, which have been balanced for smooth operation. Heated air flows easily through the tubular heat exchangers and is effectively, directed to the heated space through outlet louvers.
  • Product Includes
  • A completely assembled heater
  • Installation and operation instructions
  • Warranty certificate
  • Flue transition
Specifications
General Information
Heat Exchanger Material
Aluminized Steel
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
92000 BTU
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
115000 BTU
Efficiency
80 %
Maximum Air Flow
1900 CFM
Air Throw
60 Feet
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
4 Inches
Gas Piping Diameter
1/2 Inch
Product Height
32 3/16 Inches
Product Width
20 3/16 Inches
Product Depth
31 1/8 Inches
Product Weight
125 Pounds
Shipping Weight
150 Pounds
Warranty Information
Heat Exchanger Warranty
10 Years
Features
Features
    Introducing the SEP Series by ADP. These large commercial unit heaters are the perfect solution for heating warehouse and garage spaces. ADP's dedication for perfect quality products, extremely advanced designs, unique processes, propriety testing technologies and a trouble-free customer experience are integrated into the manufacturing process. The SEP series gas-fired propeller unit heaters deliver 80% thermal efficiency and 78% seasonal efficiency using natural gas or LPG in all models. This excellent efficiency sets a new standard for savings when using gas-fired unit heaters. The design of this unit heater has proven itself to be superior during the fourteen years and hundreds of thousands of hours of tough winter climate and laboratory life cycle testing under extreme conditions. The SEP has been designed to provide a long, trouble-free service life. Every heater undergoes continuous quality checks at all stages of manufacturing. After assembly, each heater is test fired and functionally tested to provide final assurance that it is performing in accordance with ADP's rigorous quality standards. Constructed on 18- to 22-gauge cold rolled steel, each cabinet has a pre-painted finish for superior resistance to corrosive elements. Each cabinet has a two-point (3/8" X 16" spotnut) suspension system for easy installation. The two fan models have four-point suspensions. Generous use of inside cabinet insulation keeps the outer surface temperatures low. The wiring junction box is conveniently located on the side of the cabinet for easy access and adequate protection.
  • Tubular Heat Exchanger
  • Constructed of aluminized steel for superior resistance to corrosion and oxidation. Additional protection is available with an optional stainless steel heat exchanger.
  • The curving design provides for complete exposure of the heating surface to the supply air stream. Rounded surfaces minimize air resistance and permit air to surround all heat transfer surfaces for excellent heat transfer.
  • Tubular design means lighter weight and significantly longer service life due to lower thermal-induced stresses.
  • Further, the tubular exchangers create less resistance to air flowing through the unit, therefore providing higher airflow and great throw distance of the heated air to the space.
  • Inshot burner
  • These lightweight aluminized steel burners are maintenance-free and never require adjustment. The burning venturi mixes air and gas in the correct proportion for efficient combustion. The entire burner assembly is removable for ease of service.
  • Direct spark ignition
  • In combination with the 24-volt main gas valve with 100% shutoff for safety, the direct spark ignition control provides reliable and safe main burner ignition. This eliminates the need for a pilot light, improving system efficiency and reliability.
  • Air distribution
  • All models are equipped with efficient, quiet, direct-drive propeller fans, which have been balanced for smooth operation. Heated air flows easily through the tubular heat exchangers and is effectively, directed to the heated space through outlet louvers.
  • Product Includes
  • A completely assembled heater
  • Installation and operation instructions
  • Warranty certificate
  • Flue transition
Specifications
General Information
Heat Exchanger Material
Aluminized Steel
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
92000 BTU
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
115000 BTU
Efficiency
80 %
Maximum Air Flow
1900 CFM
Air Throw
60 Feet
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
4 Inches
Gas Piping Diameter
1/2 Inch
Product Height
32 3/16 Inches
Product Width
20 3/16 Inches
Product Depth
31 1/8 Inches
Product Weight
125 Pounds
Shipping Weight
150 Pounds
Warranty Information
Heat Exchanger Warranty
10 Years
Product Specs
+
Specifications
General Information
Heat Exchanger Material
Aluminized Steel
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
92000 BTU
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
115000 BTU
Efficiency
80 %
Maximum Air Flow
1900 CFM
Air Throw
60 Feet
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
4 Inches
Gas Piping Diameter
1/2 Inch
Product Height
32 3/16 Inches
Product Width
20 3/16 Inches
Product Depth
31 1/8 Inches
Product Weight
125 Pounds
Shipping Weight
150 Pounds
Warranty Information
Heat Exchanger Warranty
10 Years
Reviews
(1)
+
ADP SEP-115AN Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
What does SEP & HED stand for?
Randy
from Oregon
May 06, 2016
Answer
The SEP-Series are commercial unit heaters whereas the HED-Series are duct furnaces. The main difference between the two is that the HED-series units do not include a fan to circulate air and will need to be ducted in a system that includes a separate blower. The SEP-series units have a built in fan and do not connect to ducts. Please refer to this brochure for a detailed comparison of the two product lines from ADP.
