Venmar 44103
Venmar 44103
Hover to zoom
1 of 1

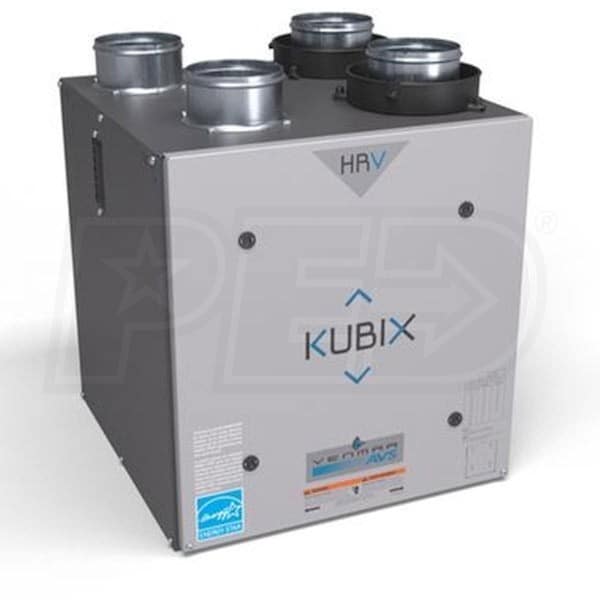

Venmar AVS Kubix HRV Plus Heat Recovery Ventilator with Side Ports

Model:

44103

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Venmar AVS Kubix HRV Plus Heat Recovery Ventilator with Side Ports
Venmar AVS Kubix HRV Plus Heat Recovery Ventilator with Side Ports
Model: 44103
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

    Venmar 44103 AVS Kubix HRV Plus Heat Recovery Ventilator with Side Ports

    The Venmar Kubix Series 44103 HRV is the ideal choice for condominiums, apartments and other limited space applications that require up to 70 cfm of continuous ventilation. With its compact size and 4-inch vertical or horizontal ports, it can be installed in small spaces such as a closet or mechanical room above a hot water tank.

    Venmar 44103 AVS Kubix HRV Plus Heat Recovery Ventilator with Side Ports Maintenance:

    All parts of the Venmar 44103 Kubix HRV that could need maintenance can be removed in less than five minutes, allowing direct access for easy repairs. The PSC motor is permanently lubricated.

    The Venmar 44103 AVS Kubix HRV Plus Heat Recovery Ventilator with Side Ports Features:
    • Removable terminal block to ease auxiliary wall control connections
    • Features integrated hooks to simplify installation
    • Less than 4 zones at 64 cfm
    Venmar 44103 AVS Kubix HRV Plus Heat Recovery Ventilator with Side Ports Warranty:
    • Limited Lifetime Heat Recovery Core
    • 2 years parts

Specifications

44103
specs product image PID-22926
General Information
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Port Location
Side
Performance
Maximum Air Flow
70 CFM
Apparent Sensible Effectiveness
0.77 %
Minimum Air Flow
35 CFM
Sensible Recovery Efficiency
0.67 %
Electrical Data
Voltage
120 Volts
Power Consumption
60 Watts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
4 Inches
Product Height
16 1/4 Inches
Product Width
15 1/2 Inches
Product Depth
15 5/8 Inches
Product Weight
30 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
Lifetime Years

Reviews

(1)
Venmar 44103 Reviews & Ratings
Verified Buyer
Verified Buyer
Mr
By Jo J.
IL
Review Posted 08/10/2013
Good small ventilator after duct setup, which is a bit involved, even with easy access for duct hanging. I've had it 18 months now in my home woodshop, to remove stinks without losing too much heat. The shop volume is 3400 cu ft. It works well from the coldest to the hottest days (ca. 10F and 95F on Long Island, NY). Filter maintenance, frequent in a woodshop, is easy after the first time, when initially getting the core to slide out was tricky. (I sprayed the rubber seals and the case slots with silicone, which improved things.) I use it with a Constructo Lite-Touch control, which is dead easy to wire. It provides 70, 40, and an effective 15 cfm on the intermittent setting. 40 cfm for this room volume is fine most of the time, but 70 cfm is useful for quickly venting bad stinks (varnishes, lacquers, etc). 15 cfm is good for overnight. I haven't checked the efficiency (measuring temps of incoming and outgoing air), but it seems very efficient, in line with specs. It's also very quiet. BTW, E-Comfort is great with advice, and then with fast shipping: good service.
What's a Related Review? Learn More
Related Reviews
*Related reviews were originally written for products that are very similar to this one. While the reviewed product may differ in color, size, fuel type, or another aspect, we believe it is applicable to this model.
This review was originally written for the 44102.
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
