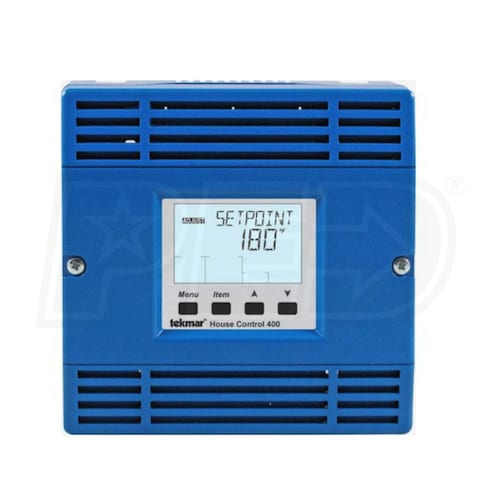

Tekmar 400 - House Control - tN2 Compatible - 4 Zone Valves - Outdoor Temp. Reset - Boiler - DHW - Setpoint

Model:

400

Write A Review
$703.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$118 / Month
Suggested monthly payments with 6 month financing.
Tekmar 400 - House Control - tN2 Compatible - 4 Zone Valves - Outdoor Temp. Reset - Boiler - DHW - Setpoint
Tekmar 400 - House Control - tN2 Compatible - 4 Zone Valves - Outdoor Temp. Reset - Boiler - DHW - Setpoint
Model: 400
$703.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For nearly three decades, tekmar has been providing zoning and control solutions for a variety of heating and cooling applications. Products made by tekmar can improve the efficiency and comfort delivered by almost any system. The tekmar 400 House Control controls a single water temperature. It is equipped to operate a system pump, a DHW pump, and four zone valves in addition to a two-stage, or modulating, boiler or two single-stage boilers in order to satisfy heating, DHW, and setpoint demands in a hydronic system. The 400 House Control is tekmarNet 2 compatible, and it possesses several energy saving features, including outdoor temperature reset, to make your system more economical.
  • Synchronize Your Zones, Save Energy
  • This tekmar control allows your tekmarNet 2 thermostats to communicate with each other. Communication means that your thermostats can synchronize their cycles, when possible, instead of operating independently.
  • tekmarNet 4 Expansion
  • The tekmar 400 contains an expansion terminal, which allows you to add a tekmarNet 4 control into your communication system. Find the perfect configuration to maximize your efficiency and comfort.
  • Intelligent Control
  • The tekmar 400 monitors the outdoor temperature and the water temperature at various points throughout the system. Using this information it is able to determine the most appropriate supply temperature and boiler firing rate.
  • By constantly monitoring conditions and making continuous adjustments, the tekmar 4002 delivers unparalleled comfort and efficiency.
  • Product Includes
  • (1) tekmar 400 House Control
  • (1) tekmar 082 Universal Sensor
  • (1) tekmar 070 Outdoor Sensor
  • Product Note
    The Tekmar 082 Sensor is being temporarily substituted for the Tekmar 071. The Tekmar 071 has a 12" cable while the Tekmar 082 has an 8' cable.

Specifications

400
specs product image PID-32825
Overview
Product Category
Thermostats and Controls
Additional Model Numbers

400-0, 400

General Information
Product Category
Thermostats and Controls
Voltage Type
Line-Voltage
Interface
Buttons
Electrical Data
Maximum Load
5 Amps
Dimensions
Product Height
5 1/2 Inches
Product Width
5 1/2 Inches
Product Depth
2 1/4 Inches
Product Weight
1.4 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
