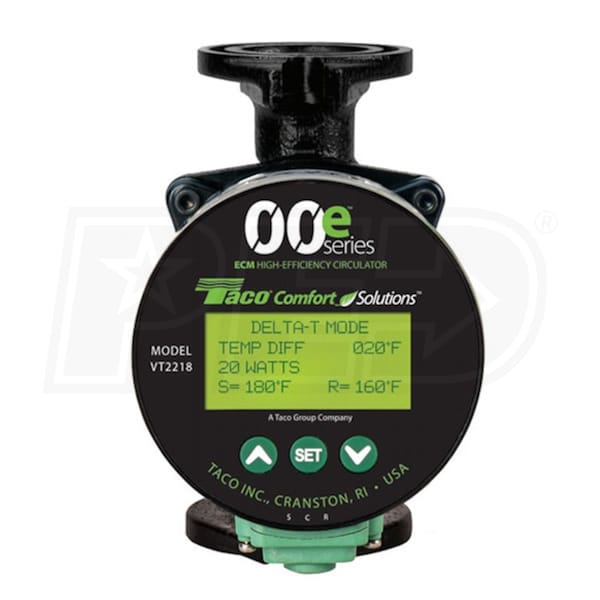

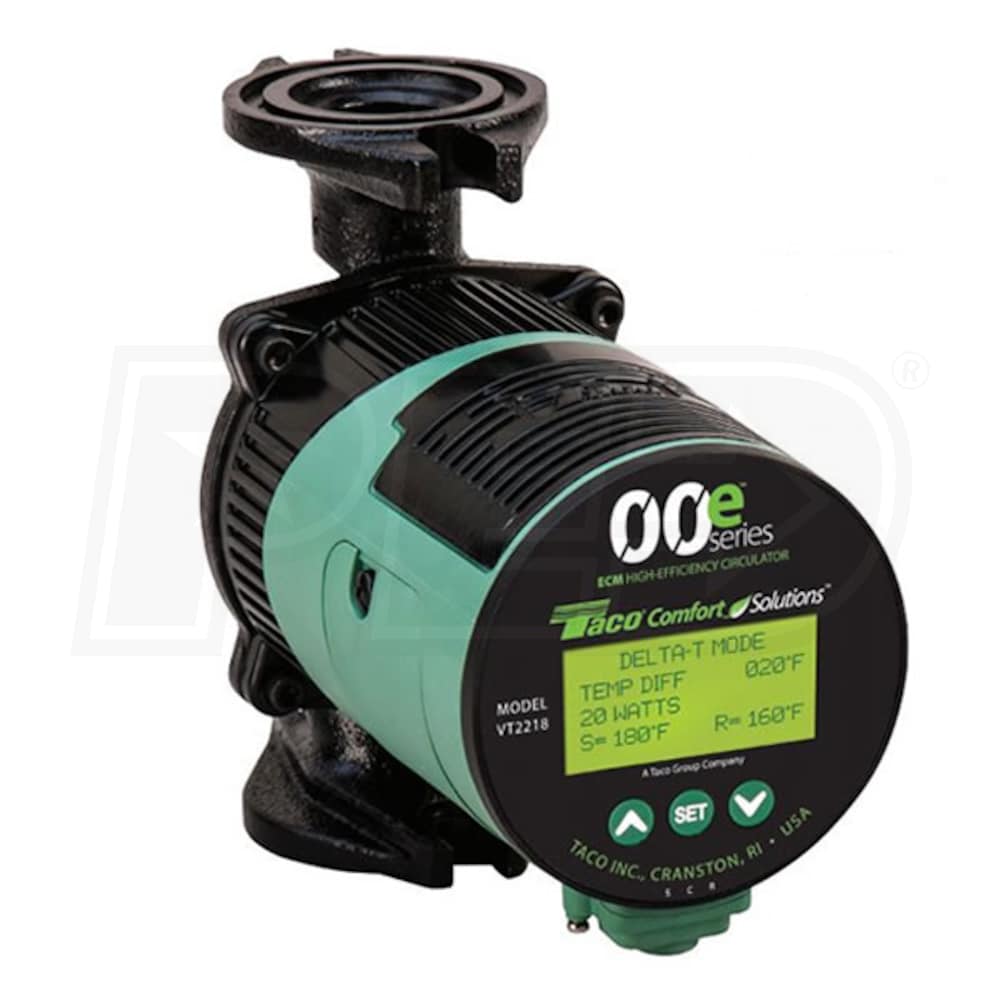

Taco VT2218 - Delta-T - Temperature Sensing Variable Speed Circulator Pump - Cast Iron - Universal Flange
Model:
VT2218-HY2-4C1A00
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
3
$512.00
In-Stock
$500.00
In-Stock
$500.00
In-Stock
Features
- Temperature Sensing
- The VT2218 features a temperature sensing system unlike any other in its class. This allows for a Delta-T differential temperature mode, set point heat with boiler protection, and a set point cool mode.
- Multiple Modes
- The versatility of the VT2218 can be seen in the number of modes available. With variable and multi-speed operation options, the VT2218 is a perfect fit for almost any hydronic system application.
- LCD Display
- A fully backlit LCD screen on the VT2218 displays operating mode, temperature or speed setting, watts, supply/return temperatures, error code diagnostics, and the ability to switch between English and Metric units.
- Reliable Operation
- The VT2218 features Taco's BIO Barrier® that protects the pump from system contaminants, a SureStart™ setting that automatically unblocks and purges air in your system, and an integral flow check to prevent backflow.
- High Efficiency
- The Taco VT2218 includes an efficient ECM permanent magnet motor that uses up to 85% less electricity than most standard pumps, allowing you to potentially save hundreds in fuel costs.
- Universal Flange
- This VT2218 features a 2-way flange that provides universal fit-up to any flange position.
Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. The Taco 00e™ series VT2218 Delta-T variable speed circulator is a temperature sensing, self-adjusting, high-efficiency wet rotor circulator featuring an ECM permanent magnet motor. Operating modes on the VT2218 include Delta-T differential temperature, 4 fixed speeds, set point heat and cool, and boiler protection. This versatile circulator is perfect for hydronic systems with zone valves, radiant loops, injection pumping, snowmelt, and hydro-air fan coils. The VT2218 also features a 4-bolt flange, allowing for universal fit-up to any flange position.
Product Note
Cast iron cannot be used in domestic hot water or potable water applications.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
VT2218-HY2-4C1A00
General Information
Type
Circulator
Product Line
00 Series
Motor Type
Variable Speed
Connection Type
Flanged
Material
Cast Iron
Flange Orientation
Universal 2-Way
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
UPC
190145182904
Performance
Maximum Head
22 Feet
Maximum Flow Rate
18 GPM
Maximum Fluid Temperature
230 F
Maximum Operating Pressure
125 PSI
RPM
4200 RPM
Electrical Data
Voltage
110/120 Volts
Power Consumption
58 Watts
Phase
1
Frequency
50/60 Hz
Current Draw
0.67 Amps
Dimensions
Product Height
6 3/8 Inches
Product Width
4 1/4 Inches
Product Depth
8 1/8 Inches
Product Weight
7.75 Pounds
Shipping Weight
8 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
(2)
Taco VT2218-HY2-4C1A00 Reviews & Ratings
Super quiet and works as advertised
By Mike A.
El Paso, Illinois
Purchased 02/06/2018 |
Review Posted 03/01/2018
I bought this to replace a noisy Bumblebee pump which had the same features. The Taco VT2218 is so quiet I was worried it wasn't even working at first. I'm using it in Delta T mode and it does a great job of regulating it's speed to reach my desired temperature differential. The display and programming on this are super easy to navigate and it has all the info you need displayed all the time. I will be recommending this to anyone I know in the market for an upgrade to their home boiler system.
Mike A. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Features, Easy To Use, Quiet, Exceeded Expectations
Awesome Product!
By Scott B.
Hamburg, New York
Purchased 02/08/2018 |
Review Posted 03/01/2018
This product seems like it will prevent a repeat problem that I had. My copper fin cast iron boiler was replaced under warranty due to a failed heat exchanger after only 4 years! After many months of research and investigation, it was determined (by me) that it was due to a grossly undersized Taco 007 circulator that the installer put on. This little gem keeping the delta T at 20 degrees should do just the trick to keep that problem from happening again. And I had to insist on it being installed this time around. My new hobby is staring at the LCD readout. It even tells you how many GPM are flowing through it at any given time. My only criticism would be that the directions do not give any option for using this with Primary/Secondary piping. That extra information would be a nice enhancement to the direction booklet. It also comes with a 3 year warranty. Let's hope it lasts - assuming that it does, it gets 5 stars from me!
Scott B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use, Quiet, High Quality, I'd Buy It Again
Cons:
Bad Instructions
