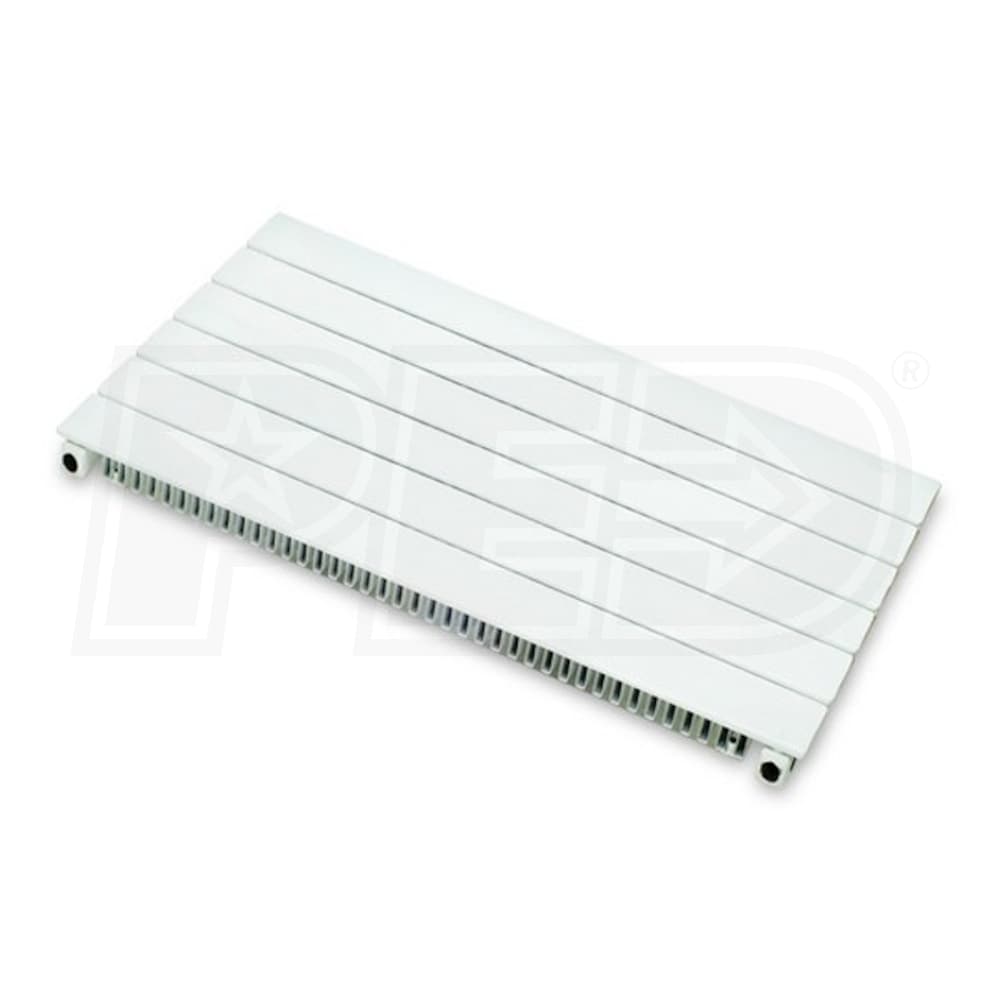

Runtal UF - 2,860 BTU - Hydronic Panel Radiator - 18" H - 24" W - 2" D



Write a Review
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
*We currently CANNOT ship this product to California or any destination outside of the United States
$101 / Month
Suggested monthly payments with 6 month financing.
Runtal UF - 2,860 BTU - Hydronic Panel Radiator - 18
Runtal UF - 2,860 BTU - Hydronic Panel Radiator - 18" H - 24" W - 2" D
Model: UF-6-24
How-To Articles


    Runtal's impressive longevity in the radiator market speaks to the reliability and effectiveness of their products. The UF line is Runtal's flagship horizontal panel radiator line. They are available in a variety of heights and lengths, so it is incredibly easy to design a UF system that suits your specific application. The UF-6-24 is a 2 foot hydronic panel radiator capable of supplying 2,860 BTU of heating. These radiators utilize Runtal's famous flat panel design that provides maximum surface area for efficient heating. Convenient piping options make it easy to connect multiple UF radiators and scale your system to provide ideal comfort in any space. If you're looking for an attractive and impressive hydronic heating solution, Runtal's UF series is the choice to make.
  • Attractive and Durable
  • Runtal prides itself on producing stylish, dependable radiators and the UF is no exception. Its clean, neutral design looks at home on any wall and with 10 radiator finishes available, it's easy to match your decor.
  • Low Profile

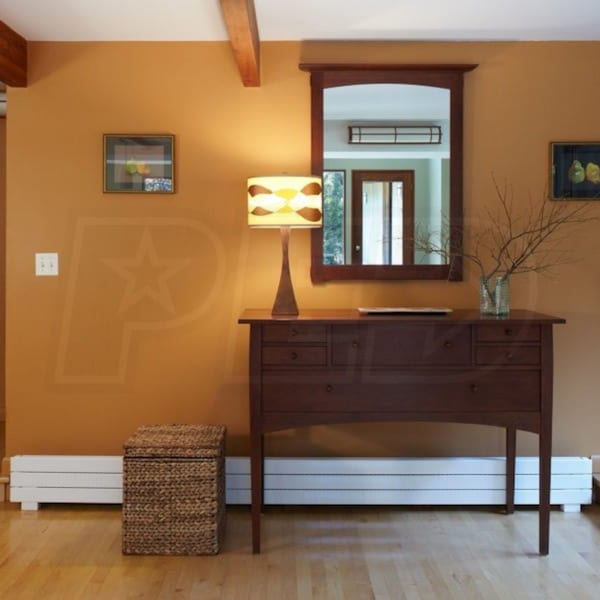

  • With a depth of only 2", the UF-6-24 is perfect for homes looking for unobtrusive hydronic comfort. Mounting beneath a window is an great way to mitigate drafts, but a UF radiator can be installed anywhere with an inch of clearance above the floor.
  • Quick Installation
  • The combination of bottom and side connection options with eight possible piping configurations affords you flexibility when selecting an installation location and makes it simple to connect multiple units in a series for larger applications.
  • Exceptional Efficiency

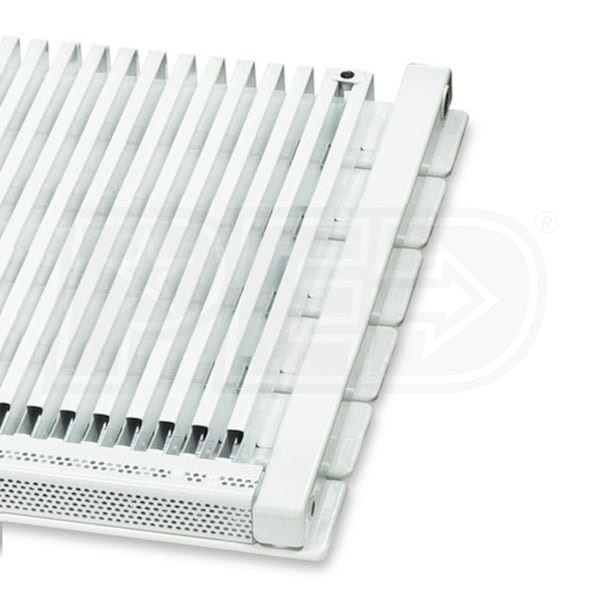

  • Energy waste is a drain on your wallet that can be avoided with Runtal. Between the flat tube heat exchanger and the welded-steel construction, Runtal developed a radiator design that transfers the most possible heat into your space.
  • An Easy Upgrade
  • Improving the efficiency and reducing the temperature variance of an existing hydronic system is easy with Runtal's UF hydronic wall panels. They may be used as a direct replacement for both fin-tube and cast iron radiators.
  • Application Versatility
  • The UF-6-24 may be used with any water temperature between 120 and 190 degrees Fahrenheit. This means that they are capable of being used as your primary heat source or as a supplement to another source.
  • Product Includes
  • (1) Runtal UF-6-24 Hydronic Panel Radiator
  • (1) Mounting Hardware Package
  • (1) Air Vent
  • Product Note
    Displayed lead time is for 9010R Runtal White. Orders with other colors are built to order and take four to six weeks to ship out. Built to order products are not eligible for returns, refunds, or cancellations. Please contact us with any questions prior to placing your order.


General Information
Product Line
Medium Learn More
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
With Fins
Connection Type
Additional Model Numbers

UF-6-24-9010R, UF-6-24

Heating BTU
Heating Capacity
2860 BTU
Supply Connection
1/2 Inch
Return Connection
1/2 Inch
Product Height
18 Inches
Product Width
24 Inches
Product Depth
2 Inches
Product Weight
23.4 Pounds
Country of Origin
United States
Warranty Information
Warranty Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
