Features
- High Efficiency Heating and Hot Water
- Rinnai's E series combines their high efficiency boiler technology with a space saving built-in hot water heater. With a rated 95.5% AFUE, this system is one of the most efficient on the market. The E75C can use up to 85k BTU/h for DHW production.
- Space Saving Boiler
- Due to their relatively small size, multiple venting and piping options, and built-in wall mount, the E Series can be installed in almost any application, saving valuable floor space and providing installation flexibility.
- Set-and-Connect Installation
- The E series boiler comes fully-assembled with multiple plumbing and venting options including PVC, CPVC, polyproylene, and stainless steel. Concentric venting adapters, sold separately, are also available to avoid multiple wall penetrations.
- Domestic Hot Water Production
- The E75C comes with the ability to produce Domestic Hot Water for your home. With a 2.1 GPM flow rate at 75 degree Fahrenheit temperature rise, the E75C can provide hot water for a typical 1 - 1.5 bath home.
- Product Includes
- Plumbing kit w/ low-loss header, isolation valves, PRV, boiler drain, T&P gauge. Wall mounting bracket, outdoor reset sensor, flow restrictor, and 3
Rinnai continues to provide state of the art, high efficiency home heating options with the E Combi Boiler series. Combining Rinnai's condensing boiler technology with an on-demand water heater, the E75C provides high efficiency home heating in a small, space-saving package. With a self-cleaning, down-fired stainless steel heat exchanger and the latest in condensing technology, the E75C boasts an impressive 95.5% AFUE efficiency rating, making it one of the most efficient Combi units on the market. Designed specifically for multifamily units or smaller single-family homes, the E75C provides hot water for 1 - 1.5 bath homes with no secondary piping. The E75C's compact size, multiple venting options, and easy-to-install nature make it perfect for new construction or remodeling. This Rinnai boiler also features a factory-assembled low-loss header, which eliminates the need for balanced pump sizing. The E75C offers unmatched flexibility and market-leading efficiency, while providing heat and hot water for your entire family.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
E75C
General Information
Product Line
E Series
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
10000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95.5 %
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
75000 BTU
Minimum Input Capacity
17000 BTU
DOE Heating Capacity
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
69000 BTU
Net I=B=R Capacity
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
72400 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
25 29/48 Inches
Product Width
19 17/24 Inches
Product Depth
15 29/48 Inches
Product Weight
91 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
2100934
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
12 Years
Reviews
(1)
Rinnai E75C Reviews & Ratings
Easy installation
By Charles R.
Caledonia, New York
Purchased 06/26/2016 |
Review Posted 07/26/2016
I'm very pleased with how easy the installation was and the domestic hot water is fast and plentiful. I am amazed as to how quick the boiler heats and circulates the water through the system, I am curious to see how efficient it will be come winter.
Charles R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
How-To Articles
Five Ways to Improve Boiler Efficiency
When purchasing a new boiler for your home, efficiency is the name of the game....
Hydronic System Accessory Guide
How warm does a coat keep you without gloves and a hat? Accessories are sometim...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

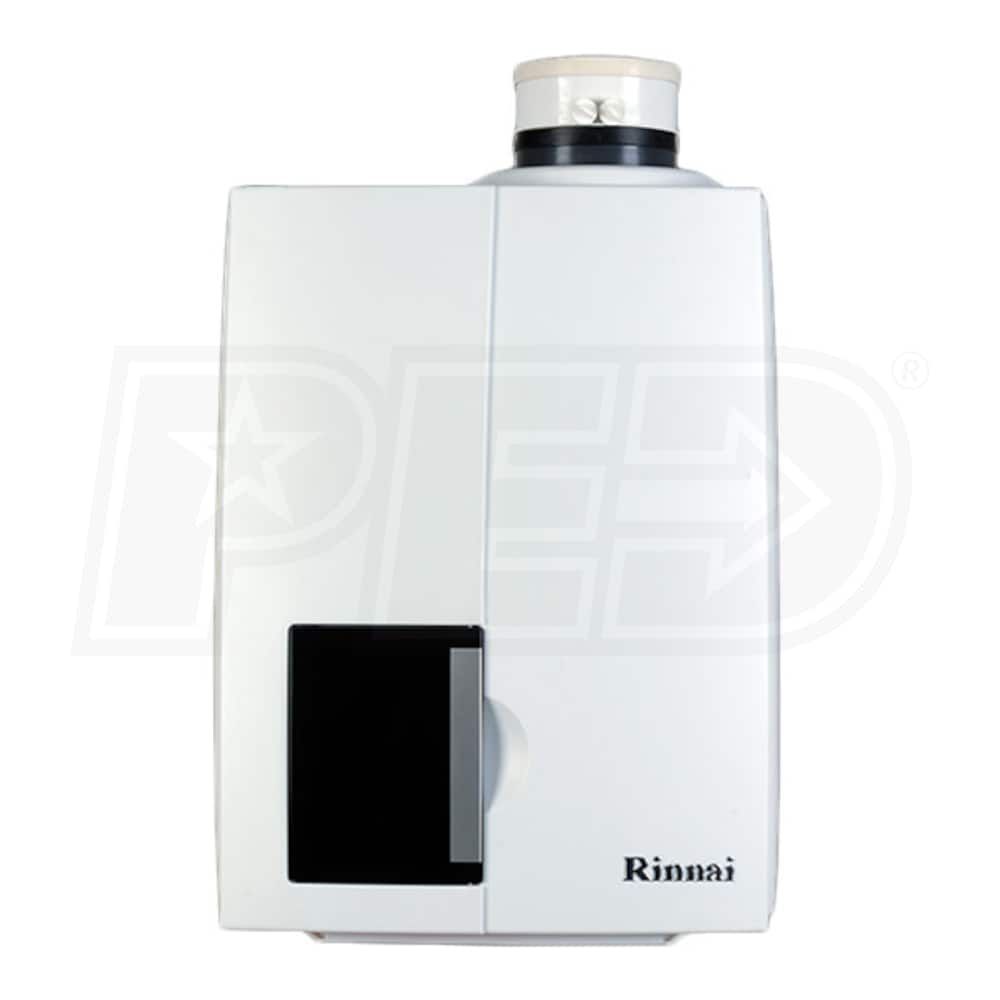

Rinnai E75C - 69K BTU - 95.5% AFUE - Combi Gas Boiler - Direct Vent
