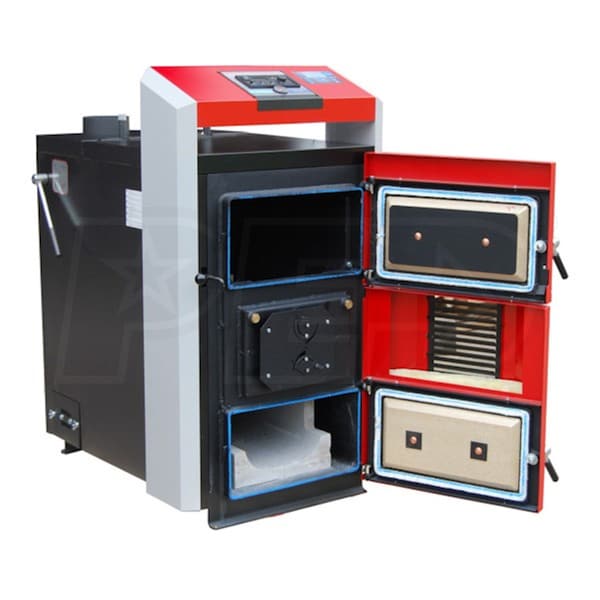

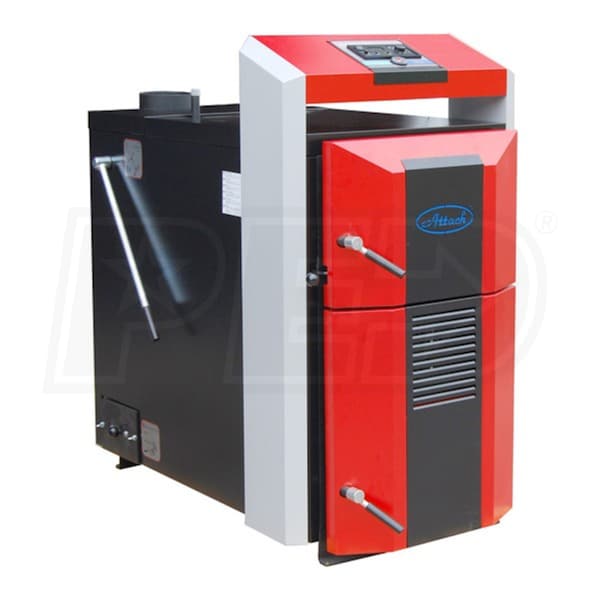

New Horizon Corp. Attack DPX 35 High Efficiency Gasification Wood/Coal Boiler 89% - 120,000 BTU
Model:
ATTACK DPX35
+
Share This Product
Features
- Modern design
- Burns soft and hard wood in its large combustion chamber. Fuel mixtures such as coal/wood, briquets, corn cobs and wood/saw dust mixture acceptable
- High combustion efficiency low fuel consumption
- Minimum waste
- Simple use and cleaning.
- ETL Approved
- Automatic boiler switch-off when fuel runs out
- Flue ventilator ensures uniform and effective combustion
- Possibility of loading large pieces of wood
- Equipped with a cooling circuit against the water in the boiler overheating
- Made from Boiler Steel
- Continually modulated fan rotations./li>
- Suction fan ensures continuos and efficient combustion and dustfree operation
- Automatic control of the heat - up flap related with opening and closing of the feeding door
- Automatic boiler stop after the fuel burn out
- Easy attendance and simple cleaning
- 1 years parts / 20 Years Heat Exchanger Warranty
New Horizon Attack DPX 35 High Efficiency Gasification Wood/Coal Boiler 89% - 120,000 BTU
The ATTACK DP Profi wood gasifying boiler is controlled by an electronic regulator which is specifically designed for the temperature control of wood combustion boilers. The regulator keeps a constant check on the water temperature in the boiler and the value is shown on the display. At the same time, it controls the waste gas ventilator and central heating pump.
Attack DPX 35 Gasification High Efficiency Wood/Coal Burning Boiler at a glance:Specifications
ATTACK DPX35

General Information
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Biomass
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Gasification
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
Yes
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Mount Type
Floor
Installation Location
Indoor
Includes Pump
Yes
Assembly Type
Packaged
Performance
Heating Capacity
120000 BTU
Efficiency
89 %
Electrical Data
Voltage
230 Volts
Phase
1
Frequency
60 Hz
