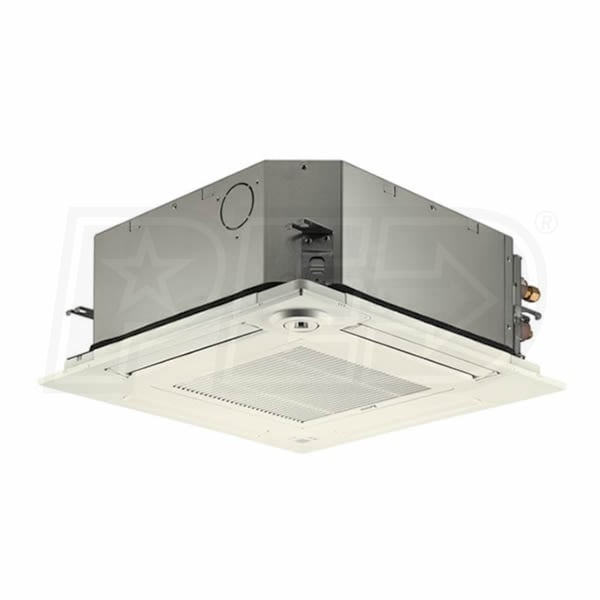

Mitsubishi - 9k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone

Mitsubishi - 9k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone
Our Price
Compare Prices
Shipping Info
Model: SLZ-KF09NA.TH
$905.25

Ships in 2-5 Business Days
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Capacity (BTU/h)
Add-Ons
Free Shipping$905.25Buy Now
$905.25Visit Site
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The SLZ-KF09NA.TH is an unobtrusive ceiling cassette unit for use in single zone and multi-zone mini split systems. The low-profile design is paired with quiet operations that provide comfort without disrupting your space. This unit features Mitsubishi's 3D i-see Sensor™ that thermally scans for warm and cold spots so conditioned air can be directed effectively. With multiple operating modes, multiple fan speeds and airflow directions, the SLZ-KF09NA.TH fits the needs of nearly any room.
  • 3D i-see Sensor™
  • The SLZ-KF cassette unit includes an advanced thermal sensor that scans the room for hot and cold spots as well as occupancy. Using this information, the cassette unit can be programmed to direct airflow to certain areas of the zone in specific scenarios.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the SLZ-KF thanks to the individual vane control option. This function provides access to an auto mode and a swing mode.
  • Condensate Removal System
  • The SLZ-KF contains an internal drain mechanism capable of lifting condensate 33". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Product Includes
    • (1) Mitsubishi - 9k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF09NA.TH-NG)
    • (1) Mitsubishi SLP-18FAU Ceiling Cassette Grille For Mitsubishi SLZ-KF-NA Mini Split Units - With 3D i-see Sensor (SLP-18FAEU)
Specifications
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Grille
Included
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Minimum Air Flow
207 CFM
Maximum Air Flow
335 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
31 dB
Minimum Sound Level
25 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 1/2 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
278 Pounds
Shipping Weight
313 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
SLZ-KF09NA.TH-NG Specifications+
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Grille
Not Included
Required Grille Model
SLP-18FAEU
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Minimum Air Flow
207 CFM
Maximum Air Flow
335 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
31 dB
Minimum Sound Level
25 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 1/2 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
SLP-18FAEU Specifications+
General Information
Type
Grille
Product Line
M-Series
Dimensions
Product Height
6/15 Inch
Product Width
24 29/48 Inches
Product Depth
24 29/48 Inches
Product Weight
5.3 Pounds
Features
Features
    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The SLZ-KF09NA.TH is an unobtrusive ceiling cassette unit for use in single zone and multi-zone mini split systems. The low-profile design is paired with quiet operations that provide comfort without disrupting your space. This unit features Mitsubishi's 3D i-see Sensor™ that thermally scans for warm and cold spots so conditioned air can be directed effectively. With multiple operating modes, multiple fan speeds and airflow directions, the SLZ-KF09NA.TH fits the needs of nearly any room.
  • 3D i-see Sensor™
  • The SLZ-KF cassette unit includes an advanced thermal sensor that scans the room for hot and cold spots as well as occupancy. Using this information, the cassette unit can be programmed to direct airflow to certain areas of the zone in specific scenarios.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the SLZ-KF thanks to the individual vane control option. This function provides access to an auto mode and a swing mode.
  • Condensate Removal System
  • The SLZ-KF contains an internal drain mechanism capable of lifting condensate 33". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
  • Product Includes
    • (1) Mitsubishi - 9k BTU - M-Series Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (SLZ-KF09NA.TH-NG)
    • (1) Mitsubishi SLP-18FAU Ceiling Cassette Grille For Mitsubishi SLZ-KF-NA Mini Split Units - With 3D i-see Sensor (SLP-18FAEU)
Specifications
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Grille
Included
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Minimum Air Flow
207 CFM
Maximum Air Flow
335 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
31 dB
Minimum Sound Level
25 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 1/2 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
278 Pounds
Shipping Weight
313 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
SLZ-KF09NA.TH-NG Specifications+
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Grille
Not Included
Required Grille Model
SLP-18FAEU
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Minimum Air Flow
207 CFM
Maximum Air Flow
335 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
31 dB
Minimum Sound Level
25 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 1/2 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
SLP-18FAEU Specifications+
General Information
Type
Grille
Product Line
M-Series
Dimensions
Product Height
6/15 Inch
Product Width
24 29/48 Inches
Product Depth
24 29/48 Inches
Product Weight
5.3 Pounds
Product Specs
+
Specifications
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Grille
Included
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Minimum Air Flow
207 CFM
Maximum Air Flow
335 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
31 dB
Minimum Sound Level
25 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 1/2 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
278 Pounds
Shipping Weight
313 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
SLZ-KF09NA.TH-NG Specifications+
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Grille
Not Included
Required Grille Model
SLP-18FAEU
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Minimum Air Flow
207 CFM
Maximum Air Flow
335 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
31 dB
Minimum Sound Level
25 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 1/2 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
31 Pounds
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
SLP-18FAEU Specifications+
General Information
Type
Grille
Product Line
M-Series
Dimensions
Product Height
6/15 Inch
Product Width
24 29/48 Inches
Product Depth
24 29/48 Inches
Product Weight
5.3 Pounds
