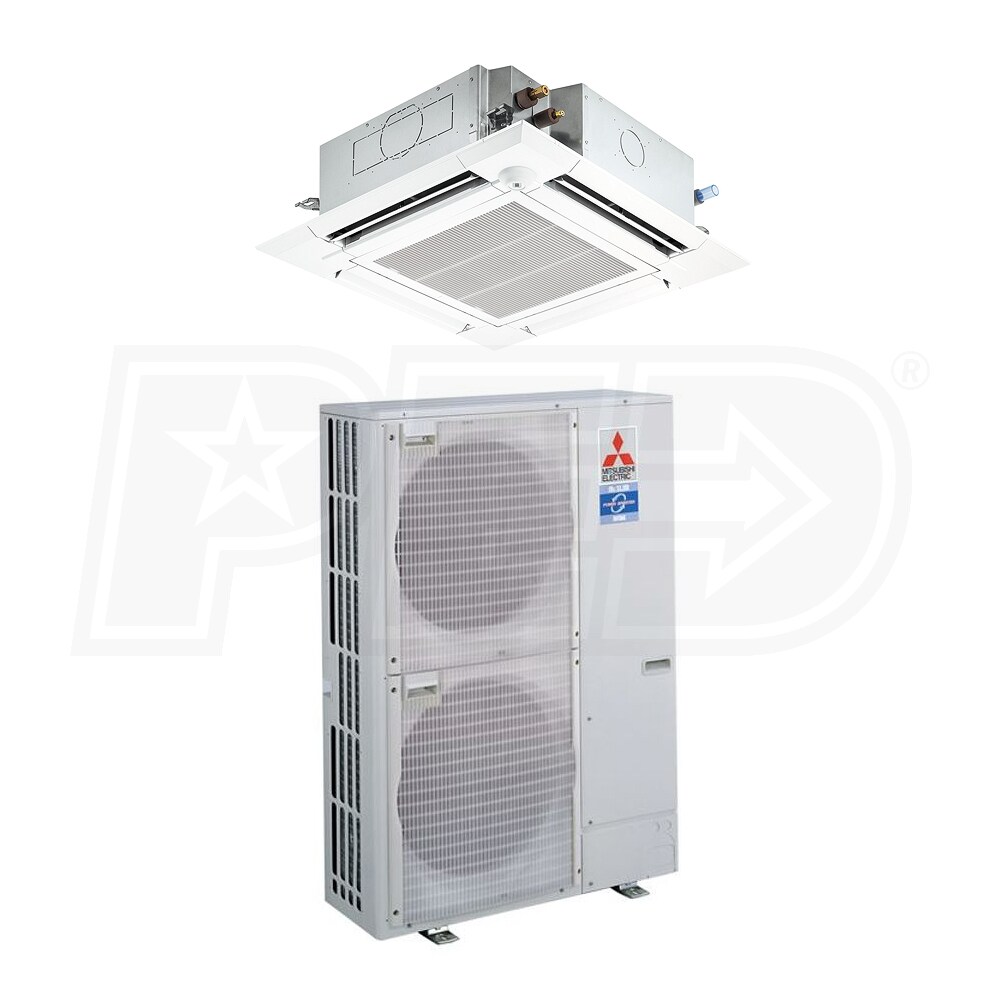

Mitsubishi PUZ-HA30NKA PLA-A30EA7 PLP-40E
Mitsubishi PUZ-HA30NKA PLA-A30EA7 PLP-40E
Hover to zoom
1 Of 5
Model: PUZ-HA30NKA PLA-A30EA7 PLP-40E
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$7,145.75
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Pre-Order
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
$90 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Product Includes
    • (1) Mitsubishi - 30k BTU - P-Series H2i Outdoor Condenser - Single Zone Only (PUZ-HA30NKA)
    • (1) Mitsubishi - 30k BTU - P-Series Ceiling Cassette Unit - For Multi or Single-Zone - Grille Sold Separately (PLA-A30EA7)
    • (1) Mitsubishi PLP-40EAEU Ceiling Cassette Grille For Mitsubishi PLA-EA Mini Split Units (PLP-40EAEU)
Specifications
PUZ-HA30NKA Specifications+
General Information
Type
Outdoor Condenser
Product Line
P-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Variable-Speed
Performance
Cooling BTU
30000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
53 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
28 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
53 1/8 Inches
Product Width
37 3/8 Inches
Product Depth
14 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
PLA-A30EA7 Specifications+
General Information
Type
Ceiling Cassette
Product Line
P-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Motor Type
Variable-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Single-Zone
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Air Flow
880 CFM
Minimum Air Flow
570 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
1 Amp
Recommended Breaker Size
25 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
11 3/4 Inches
Product Width
33 1/16 Inches
Product Depth
33 1/16 Inches
Shipping Weight
77 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
PLP-40EAEU Specifications+
General Information
Type
Grille
Product Line
P-Series
Dimensions
Product Weight
5 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    Product Includes
    • (1) Mitsubishi - 30k BTU - P-Series H2i Outdoor Condenser - Single Zone Only (PUZ-HA30NKA)
    • (1) Mitsubishi - 30k BTU - P-Series Ceiling Cassette Unit - For Multi or Single-Zone - Grille Sold Separately (PLA-A30EA7)
    • (1) Mitsubishi PLP-40EAEU Ceiling Cassette Grille For Mitsubishi PLA-EA Mini Split Units (PLP-40EAEU)
Specifications
PUZ-HA30NKA Specifications+
General Information
Type
Outdoor Condenser
Product Line
P-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Variable-Speed
Performance
Cooling BTU
30000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
53 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
28 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
53 1/8 Inches
Product Width
37 3/8 Inches
Product Depth
14 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
PLA-A30EA7 Specifications+
General Information
Type
Ceiling Cassette
Product Line
P-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Motor Type
Variable-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Single-Zone
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Air Flow
880 CFM
Minimum Air Flow
570 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
1 Amp
Recommended Breaker Size
25 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
11 3/4 Inches
Product Width
33 1/16 Inches
Product Depth
33 1/16 Inches
Shipping Weight
77 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
PLP-40EAEU Specifications+
General Information
Type
Grille
Product Line
P-Series
Dimensions
Product Weight
5 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
PUZ-HA30NKA Specifications+
General Information
Type
Outdoor Condenser
Product Line
P-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Variable-Speed
Performance
Cooling BTU
30000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
53 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
28 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
53 1/8 Inches
Product Width
37 3/8 Inches
Product Depth
14 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
PLA-A30EA7 Specifications+
General Information
Type
Ceiling Cassette
Product Line
P-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Motor Type
Variable-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Single-Zone
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Air Flow
880 CFM
Minimum Air Flow
570 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
1 Amp
Recommended Breaker Size
25 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
11 3/4 Inches
Product Width
33 1/16 Inches
Product Depth
33 1/16 Inches
Shipping Weight
77 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
PLP-40EAEU Specifications+
General Information
Type
Grille
Product Line
P-Series
Dimensions
Product Weight
5 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
