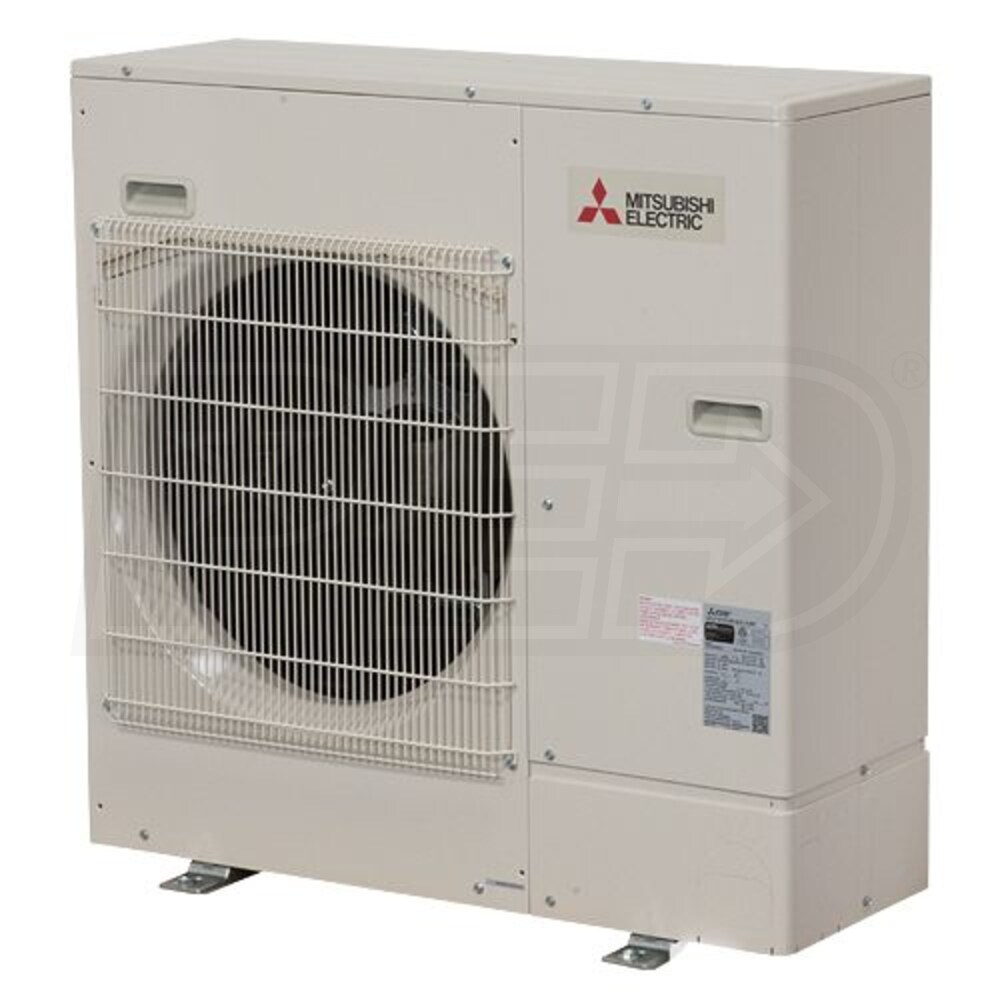

Mitsubishi PUY-A30NHA7
Mitsubishi PUY-A30NHA7
Hover to zoom
1 Of 5

Mitsubishi - 30k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only

Model:

PUY-A30NHA7

Write A Review
Not For Individual Sale
Try this product instead
View Mitsubishi - 30k BTU Cooling Only - P-Series Wall Mounted Air Conditioning System - 19.8 SEER
Model:
PUY-A30NHA7 PKA-A30KA7
$4,552.50
$4,324.88
Factory-Direct
Mitsubishi - 30k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only
Mitsubishi - 30k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only
Model: PUY-A30NHA7
$2,930.25
Not For Individual Sale
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center for alternate options.

Specifications

PUY-A30NHA7
specs product image PID-84636
General Information
Type
Outdoor Condenser
Product Line
P-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Variable-Speed
Performance
Cooling BTU
30000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19 Amps
Recommended Breaker Size
25 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
37 1/8 Inches
Product Width
37 1/2 Inches
Product Depth
14 Inches
Product Weight
151 Pounds
Shipping Weight
176 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
