Mitsubishi PCY-A30NHA
Mitsubishi PCY-A30NHA

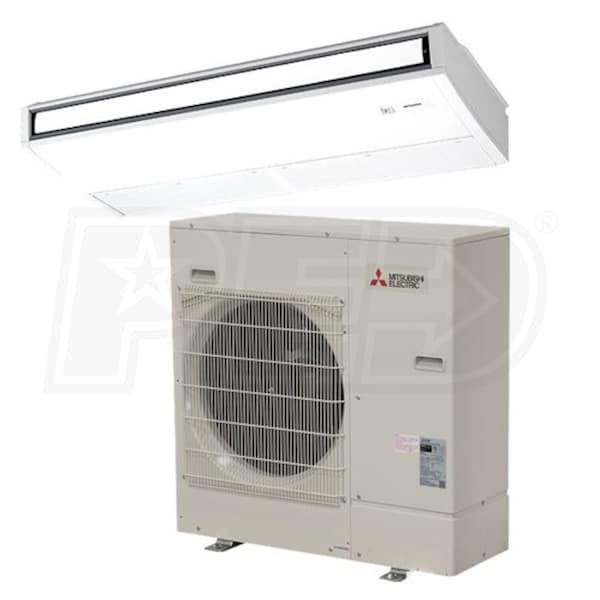

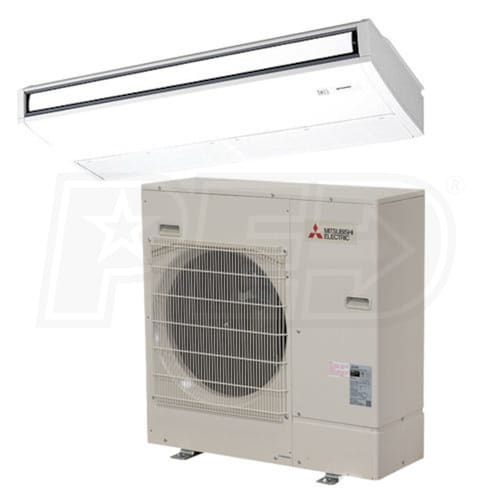

Mitsubishi - 30k BTU Cooling Only - P-Series Ceiling Suspended Air Conditioning System - 19.6 SEER

Model:

PCY-A30NHA

Write A Review
$4,344.76
Was $4,790.25
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Friday, Mar 29th
Shipping to60601
synchrony card logo
$55 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Mitsubishi - 30k BTU Cooling Only - P-Series Ceiling Suspended Air Conditioning System - 19.6 SEER
Mitsubishi - 30k BTU Cooling Only - P-Series Ceiling Suspended Air Conditioning System - 19.6 SEER
Model: PCY-A30NHA
$4,344.76
Was $4,790.25
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The PCY-A30NHA is a packaged single zone air conditioner mini split system designed to bring discreet cooling to any room in a large home or business. A low-profile ceiling suspended indoor unit, PCA-A30KA7, is paired with an outdoor condenser that uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. Ceiling suspended systems are great for applications where the structure or design does not support wall mounting or ceiling cassettes. As part of Mitsubishi's commercial P-Series, the condenser is constructed with industrial-grade materials to ensure consistent performance in the harshest conditions, making this system ideal for critical applications that require constant conditioning.
  • Precision Temperature Control Technology
  • The PUY-A30NHA outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the PCA-A30KA thanks to the vane control option. This function provides access to four different horizontal vane positions and a swing mode. Swing mode cycles through all positions for maximum coverage.
  • Product Includes
    • (1) Mitsubishi - 30k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only (PUY-A30NHA7)
    • (1) Mitsubishi - 30k BTU - P-Series Ceiling Suspended Unit - Single Zone Only (PCA-A30KA7)
    Product Note
    This product requires the following accessories for installation:
    • Thermostat - Mitsubishi P-Series mini splits do not include a thermostat for system control. Recommended thermostats can be found under the "Accessories" tab.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.

Specifications

Product Includes
  • (1) Mitsubishi - 30k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only (PUY-A30NHA7)
  • (1) Mitsubishi - 30k BTU - P-Series Ceiling Suspended Unit - Single Zone Only (PCA-A30KA7)
PCY-A30NHA
specs product image PID-88208
Overview
Product Category
Mini Split Cooling Only System
Additional Model Numbers

PUY-A30NHA7 PCAA30KA7, PCY-A30NHA

General Information
Type
Ceiling Suspended
Product Line
P-Series
Product Category
Mini Split Cooling Only System
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Outdoor Unit Size
30000 BTU
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
19.6
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.4
Cooling Power Input
3190 Watts
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
250 Pounds
Shipping Weight
278 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
201754532
PUY-A30NHA7
General Information
Type
Outdoor Condenser
Product Line
P-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19 Amps
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
225 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
37 1/8 Inches
Product Width
37 1/2 Inches
Product Depth
14 Inches
Product Weight
151 Pounds
Shipping Weight
176 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
PCA-A30KA7
General Information
Type
Ceiling Suspended
Product Line
P-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Installation Location
Indoor
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Heating BTU
35000
Moisture Removal
8.3 Pints/Hour
Maximum Air Flow
705 CFM
Minimum Air Flow
565 CFM
Minimum Sound Level
35 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
41 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
6 1/4 Inches
Liquid Connection Size
3/8 Inch
Product Height
9 1/16 Inches
Product Width
50 Inches
Product Depth
26 3/4 Inches
Product Weight
71 Pounds
Shipping Weight
82 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
