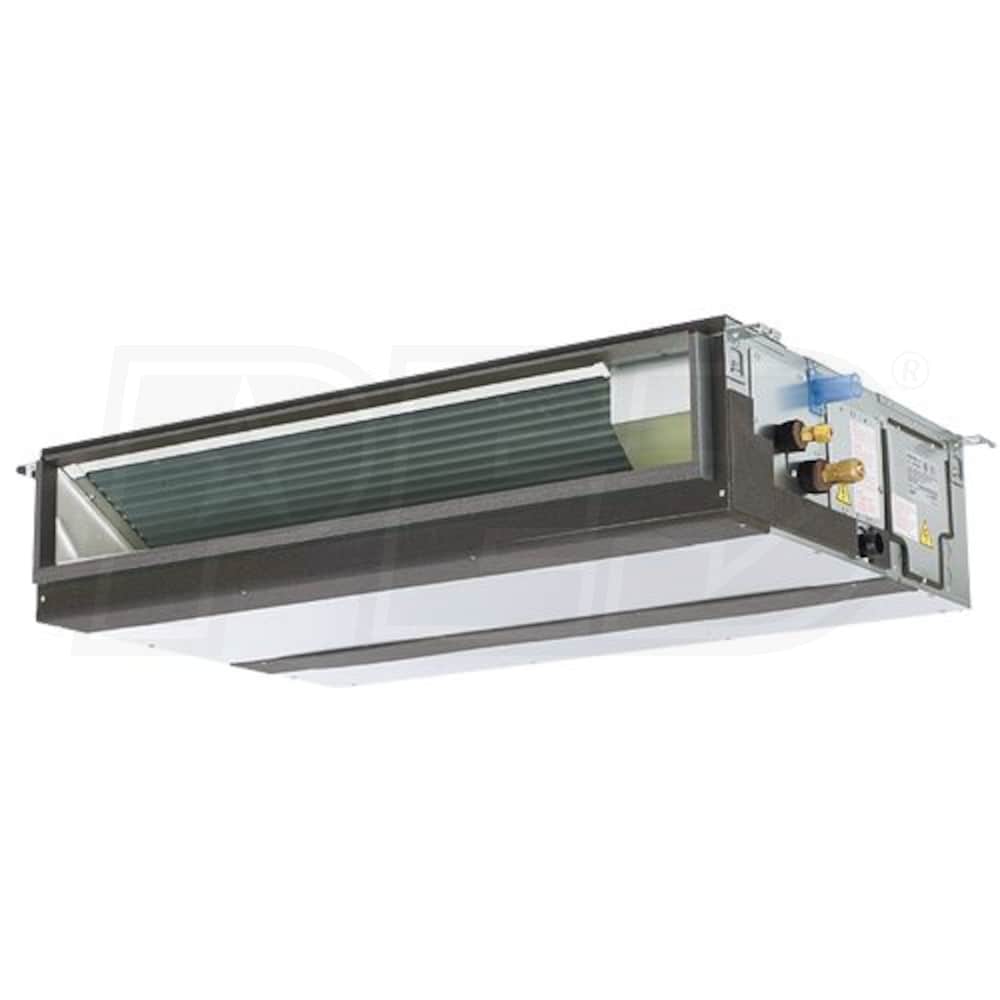

Mitsubishi - 18k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone

Model:

PEAD-A18AA7

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Mitsubishi - 18k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone
Mitsubishi - 18k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone
Model: PEAD-A18AA7
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Product Note
    • This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.

Specifications

PEAD-A18AA7
specs product image PID-84619
Overview
Product Category
Mini Split System Components
General Information
Type
Concealed Duct
Product Line
P-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Motor Type
Variable-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Single-Zone
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
600 CFM
Minimum Air Flow
424 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
1.69 Amps
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
9 7/8 Inches
Product Width
35 7/16 Inches
Product Depth
28 7/8 Inches
Shipping Weight
82 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
