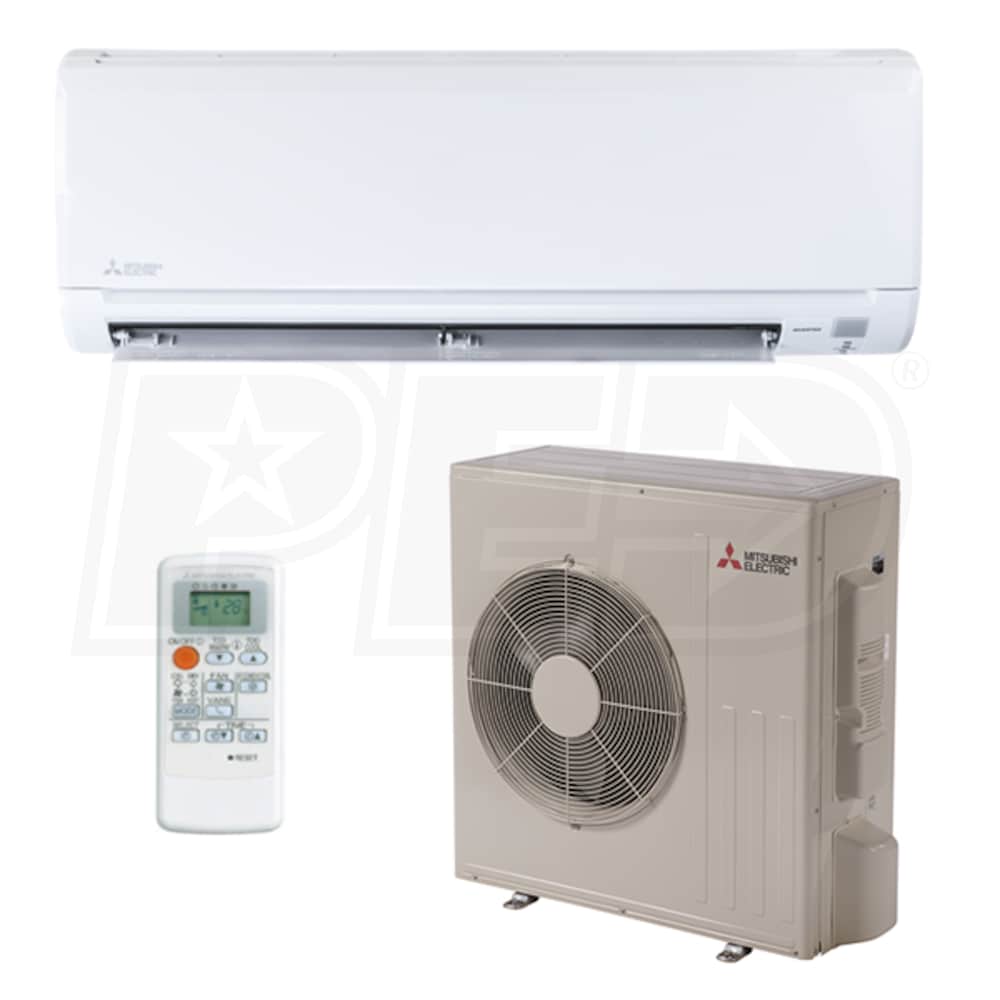

Mitsubishi - 24k BTU Cooling + Heating - HM-Series Wall Mounted Air Conditioning System - 18.0 SEER

Model:

MZ-HM24NA

Write a Review
$1,912.50
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$319 / Month
Suggested monthly payments with 6 month financing.
Mitsubishi - 24k BTU Cooling + Heating - HM-Series Wall Mounted Air Conditioning System - 18.0 SEER
Mitsubishi - 24k BTU Cooling + Heating - HM-Series Wall Mounted Air Conditioning System - 18.0 SEER
Model: MZ-HM24NA
$1,912.50
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Mitsubishi is committed to achieving total customer satisfaction and year after year they do just that. The MZ-HM24NA is backed by a 5 year parts and 7 year compressor warranty to show you they stand by their product. With an included wireless remote controller, this single zone system is the perfect combination of convenience and comfort for any heating or cooling application.
  • Kumo Cloud Compatible
  • Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MZ-HM24NA can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage. When wide mode is activated, fan speed increases beyond the current setting.
  • Precision Temperature Control Technology
  • The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Product Includes
    • (1) Mitsubishi - 24k BTU - Outdoor Condenser - Single Zone Only (MUZ-HM24NA-U1)
    • (1) Mitsubishi - 24k BTU - Wall Mounted Unit - Single Zone Only (MSZ-HM24NA-U1)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.

Specifications

Product Includes
  • (1) Mitsubishi - 24k BTU - Outdoor Condenser - Single Zone Only (MUZ-HM24NA-U1)
  • (1) Mitsubishi - 24k BTU - Wall Mounted Unit - Single Zone Only (MSZ-HM24NA-U1)
MZ-HM24NA
specs product image PID-81587
General Information
Type
Wall Mounted
Product Line
HM-Series
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
24
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
24000
Cooling Capacity
22500 BTU
Heating Capacity
26000 BTU
SEER Learn More
18.0
EER Learn More
8.6
HSPF Learn More
9.5
Cooling Power Input
2630 Watts
Heating Power Input
2500 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
149 Pounds
Shipping Weight
153 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10095840
MUZ-HM24NA-U1
General Information
Type
Outdoor Condenser
Product Line
HM-Series
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating Capacity
24000 BTU
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
100 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
34 5/8 Inches
Product Width
36 1/4 Inches
Product Depth
14 3/16 Inches
Product Weight
121 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
MSZ-HM24NA-U1
General Information
Type
Wall Mounted
Product Line
HM-Series
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Moisture Removal
2.3 Pints/Hour
Maximum Air Flow
702 CFM
Minimum Air Flow
353 CFM
Minimum Sound Level
33 dB
Maximum Sound Level Learn More
50 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
12 Inches
Product Width
36 5/16 Inches
Product Depth
9 13/16 Inches
Product Weight
28 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
