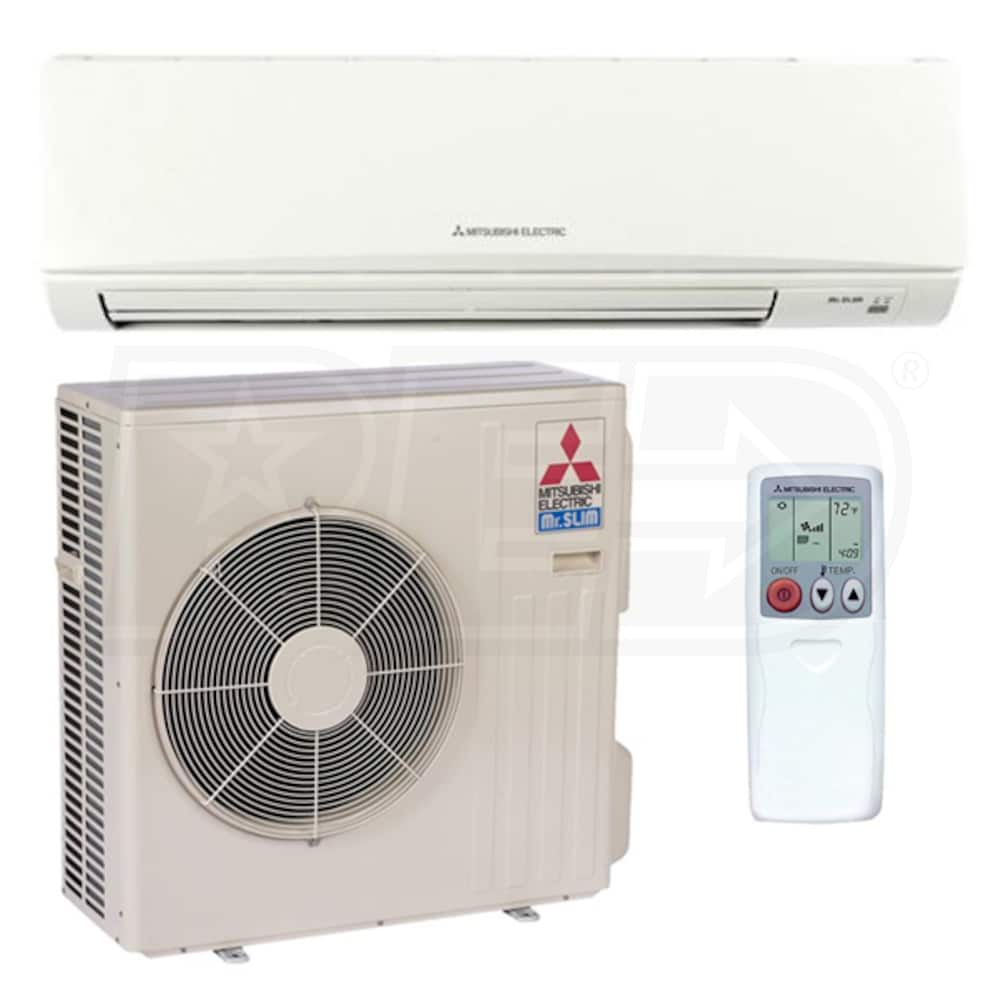

Mitsubishi - 30k BTU Cooling + Heating - M-Series Wall Mounted Air Conditioning System - 14.5 SEER
Model:
MZ-D30NA-1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
3
These accessories are required to properly setup/install this product.
Model: UC2448-3
$77.00
In-Stock
Model: MSPLTKIT-385815
Length (ft)
$337.61
In-Stock
$105.62
In-Stock
Optional Accessories
10
$20.00
In-Stock
Model: MLS385812-15
Length (ft)
$184.00
In-Stock
Model: DRAINTUBING-15
$18.00
In-Stock
Model: ASP-MA-UNI
$325.46
In-Stock
Model: EL1838-3
$38.50
In-Stock
Model: 84099
$5.30
In-Stock
$13.94
In-Stock
Features
- Precision Temperature Control Technology
- The MUZ-D30NA-1 outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
- Advanced Filtration System
- The MSZ-D30NA-8 combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
- Hot-Start
- Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
- Powerful Mode
- The powerful setting on the MSZ-D30NA-8 makes it easy to get your zone to the perfect temperature quickly. When activated, the unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
- Econo Cool Mode
- By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSZ-D30NA-8 can improve the efficiency of cooling operations without compromising the comfort provided.
- Dehumidification
- When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
- Vane Control
- Optimal air flow can be achieved with the MSZ-D30NA-8 thanks to two vane control options, standard and wide. Auto mode selects the best vane position based on operating mode while swing mode cycles through each vane position.
- (1) Mitsubishi - 30k BTU - D-Series Outdoor Condenser - Single Zone Only (MUZ-D30NA-1)
- (1) Mitsubishi D-Series 30k BTU Wall Mounted Unit - For Single-Zone (MSZ-D30NA-8)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MZ-D30NA-1 is a packaged single zone heat pump mini split system designed to bring powerful heating and cooling to any room in your home. The wall mounted indoor unit, MSZ-D30NA-8, boasts a functional design, and operates at volumes as low as 32 dB. Thanks to the included mounting plate, it is easy to install on nearly any wall. The outdoor condenser uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any application.
Product Includes
Product Note
This product requires the following accessories for installation:
Specifications
Product Includes
- (1) Mitsubishi - 30k BTU - D-Series Outdoor Condenser - Single Zone Only (MUZ-D30NA-1)
- (1) Mitsubishi D-Series 30k BTU Wall Mounted Unit - For Single-Zone (MSZ-D30NA-8)
MZ-D30NA-1
General Information
Type
Wall Mounted
Product Line
M-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Outdoor Unit Size
30000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
30000
Cooling Capacity
30700 BTU
Heating Capacity
32600 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.5
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.2
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
14 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
181 Pounds
Shipping Weight
185 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
3059257
MUZ-D30NA-1
General Information
Type
Outdoor Condenser
Product Line
M-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
30000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
57 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
14 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
100 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
33 7/16 Inches
Product Width
33 1/16 Inches
Product Depth
13 Inches
Product Weight
141 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSZ-D30NA-8
General Information
Type
Wall Mounted
Product Line
M-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Installation Location
Indoor
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Moisture Removal
9.9 Pints/Hour
Maximum Air Flow
887 CFM
Minimum Air Flow
389 CFM
Minimum Sound Level
32 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
14 3/8 Inches
Product Width
46 1/16 Inches
Product Depth
11 5/8 Inches
Product Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(3)
Mitsubishi MZ-D30NA-1 Reviews & Ratings
Customer Photos and Videos
We previously owned 2 of these Units...
By Kriss F.
Scotrun, Pennsylvania
Purchased 01/02/2020 |
Review Posted 01/24/2020
Because of prior experience with this product (heat pump/ac combo), we purchased this brand again for another home we are renovating. It is winter so haven't used it yet, but we are confident all will be well as in the past. The units never failed us nor needed maintenance.
Kriss F. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
I purchased this unit to cool my Attic, where my bed room is..
By Nua N.
Bronx, New York
Purchased 06/04/2018 |
Review Posted 09/08/2018
I had a small window air conditioner for my bedroom in the attic, I could not sleep with the noise. I attic of course is always hot.. Not when this unit it is on. My whole attic is comfortable.
Nua N. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, High Quality, Price
Very good
By Petro B
Ashtabula, Ohio
Purchased 11/21/2017 |
Review Posted 06/21/2018
I like it
Petro B Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
