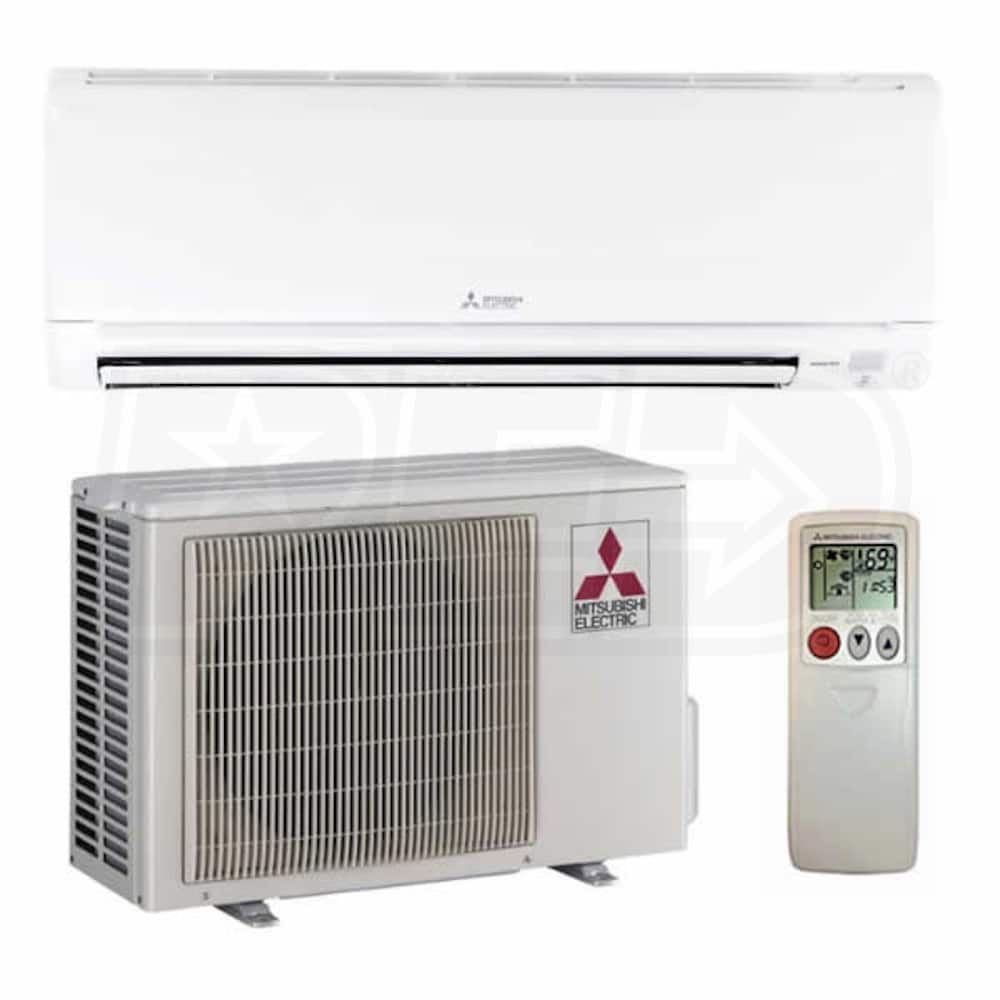

Mitsubishi - 12k BTU Cooling Only - M-Series Wall Mounted Air Conditioning System - 23.1 SEER
Model:
MY-GL12NA
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Chris, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Precision Temperature Control Technology
- The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
- Blue Fin Condenser
- Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Mitsubishi coats their condensers with an anti-rust coating to extend its lifespan.
- Advanced Filtration System
- The MSY-GL12NA-U1 combines a hybrid catechin nano platinum filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
- Smart Set
- Mitsubishi's Smart Set function allows you to save a cooling profile consisting of a temperature, a fan speed, and an airflow direction. This profile can be activated easily with a single press of the Smart Set button on the remote controller.
- Econo Cool Mode
- By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSY-GL12NA-U1 can improve the efficiency of cooling operations without compromising the comfort provided.
- Dehumidification
- When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
- Multiple Vane Control Options
- Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage. When wide mode is activated, fan speed increases beyond the current setting.
- Kumo Cloud Compatible
- Control every zone in your home from the palm of your hand. The Kumo Cloud App allows easy access and control with any smartphone or internet browser.
- (1) Mitsubishi - 12k BTU - GL-Series Cooling Only Outdoor Condenser - Single Zone Only (MUY-GL12NA-U1)
- (1) Mitsubishi GL-Series Cooling Only 12k BTU Wall Mounted Unit - For Single-Zone (MSY-GL12NA-U1)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
- Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
- Wall Bracket (Optional) - The outdoor mini split wall bracket is a simple and sturdy way to mount your outdoor condenser off of the ground.
For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Mitsubishi is committed to achieving total customer satisfaction and year after year they do just that. The MY-GL12NA is backed by a 5 year parts and 7 year compressor warranty to show you they stand by their product. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any cooling application.
Product Includes
Product Note
This product requires the following accessories for installation:
Specifications
Product Includes
- (1) Mitsubishi - 12k BTU - GL-Series Cooling Only Outdoor Condenser - Single Zone Only (MUY-GL12NA-U1)
- (1) Mitsubishi GL-Series Cooling Only 12k BTU Wall Mounted Unit - For Single-Zone (MSY-GL12NA-U1)
MY-GL12NA
Overview
Product Category
Mini Split Cooling Only System
General Information
Type
Wall Mounted
Product Line
M-Series
Product Category
Mini Split Cooling Only System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Outdoor Unit Size
12000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
23.1
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.0
Cooling Power Input
920 Watts
Dimensions
Product Weight
99 Pounds
Shipping Weight
104 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8715779
MUY-GL12NA-U1
General Information
Type
Outdoor Condenser
Product Line
GL-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
31 1/2 Inches
Product Depth
11 1/4 Inches
Product Weight
77 Pounds
Shipping Weight
82 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSY-GL12NA-U1
General Information
Type
Wall Mounted
Product Line
GL-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Moisture Removal
2.5 Pints/Hour
Maximum Air Flow
399 CFM
Minimum Air Flow
145 CFM
Minimum Sound Level
19 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
45 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
