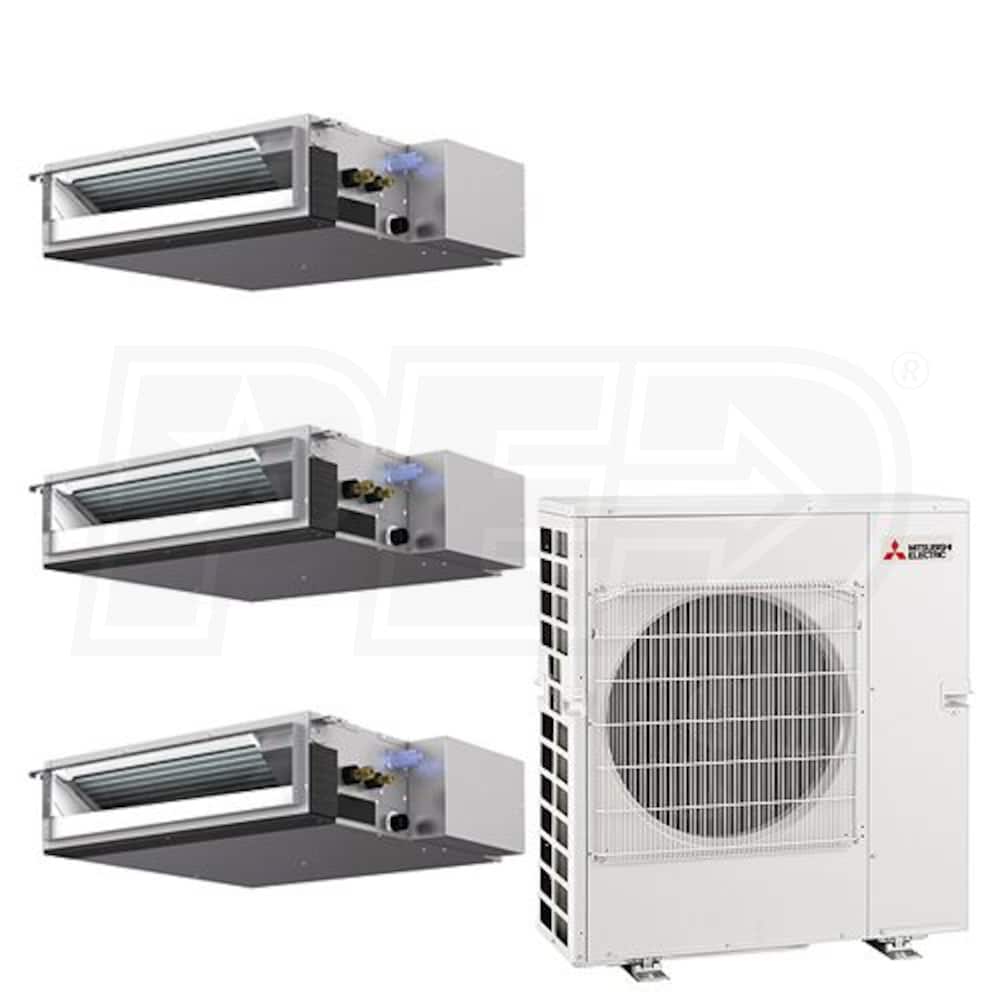

Mitsubishi Concealed Duct 3-Zone System - 42,000 BTU Outdoor - 12k + 15k + 15k Indoor - 19.7 SEER

Model:

MXZ5C42NA3 SEZKD12 SEZKD15NA4

Write A Review
$6,462.00
Was $7,733.10
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 2 In-Stock
Ships Monday, Feb 26th
Shipping to60601
synchrony card logo
$81 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Mitsubishi Concealed Duct 3-Zone System - 42,000 BTU Outdoor - 12k + 15k + 15k Indoor - 19.7 SEER
Mitsubishi Concealed Duct 3-Zone System - 42,000 BTU Outdoor - 12k + 15k + 15k Indoor - 19.7 SEER
Model: MXZ5C42NA3 SEZKD12 SEZKD15NA4
$6,462.00
Was $7,733.10
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    Product Includes
    • (1) Mitsubishi - 42k BTU - M-Series Outdoor Condenser - For 2-5 Zones (MXZ-5C42NA3)
    • (2) Mitsubishi 14,100 BTU Ducted Horizontal Heat Pump Air Handler (SEZ-KD15NA4R1.TH)
    • (1) Mitsubishi 12,000 BTU Ducted Horizontal Heat Pump Air Handler (SEZ-KD12NA4R1.TH)
    • (1) Mitsubishi 3/8" Condenser x 1/2" Line Set - Port Adapter - Flare Connections (MAC-A454JP-E)

Specifications

Product Includes
  • (1) Mitsubishi - 42k BTU - M-Series Outdoor Condenser - For 2-5 Zones (MXZ-5C42NA3)
  • (2) Mitsubishi 14,100 BTU Ducted Horizontal Heat Pump Air Handler (SEZ-KD15NA4R1.TH)
  • (1) Mitsubishi 12,000 BTU Ducted Horizontal Heat Pump Air Handler (SEZ-KD12NA4R1.TH)
  • (1) Mitsubishi 3/8" Condenser x 1/2" Line Set - Port Adapter - Flare Connections (MAC-A454JP-E)
MXZ5C42NA3 SEZKD12 SEZKD15NA4
specs product image PID-87695
Overview
Product Category
Mini Split Heat Pump System
Additional Model Numbers

MXZ5C42NA2 SEZKD12 SEZKD15NA4, MXZ5C42NA3 SEZKD12 SEZKD15NA4

General Information
Type
Concealed Duct
Product Line
M-Series
Product Category
Mini Split Heat Pump System
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
3
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12 + 12 + 15
Outdoor Unit Size
42000 BTU
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.2
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
9.0
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
9.1
Cooling Power Input
4403 Watts
Heating Power Input
3575 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
200 Pounds
Shipping Weight
228 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
209836185
MXZ-5C42NA3
General Information
Type
Outdoor Condenser
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
5
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Learn More
Branch Box Required
By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
No
Base Pan Heater Included
No
Performance
Cooling BTU
42000
Cooling Capacity
43000 BTU
Heating Capacity
53600 BTU
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
58 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
32.5 Amps
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
262 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
1/2 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Line Set E Liquid Connection
1/4 Inch
Line Set E Gas Connection
3/8 Inch
Product Height
41 13/48 Inches
Product Width
37 19/48 Inches
Product Depth
13 Inches
Product Weight
189 Pounds
Shipping Height
46 3/4 Inches
Shipping Width
41 3/8 Inches
Shipping Depth
17 3/8 Inches
Shipping Weight
214 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Overview
Product Category
Mini Split System Components
SEZ-KD15NA4R1
General Information
Type
Concealed Duct
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
15
Installation Location
Indoor
Performance
Cooling BTU
15000
Cooling Capacity
14100 BTU
Moisture Removal
2.6 Pints/Hour
Maximum Air Flow
529 CFM
Minimum Air Flow
353 CFM
Minimum Sound Level
30 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
37 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 7/8 Inches
Product Width
39 Inches
Product Depth
27 9/16 Inches
Product Weight
64 Pounds
Shipping Weight
74 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Mini Split System Components
SEZ-KD12NA4R1
General Information
Type
Concealed Duct
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
11500 BTU
Moisture Removal
2.4 Pints/Hour
Maximum Air Flow
388 CFM
Minimum Air Flow
247 CFM
Minimum Sound Level
23 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
33 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 7/8 Inches
Product Width
39 Inches
Product Depth
27 9/16 Inches
Product Weight
60 Pounds
Shipping Weight
70 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Mini Split System Components
MAC-A454JP-E
General Information
Type
Port Adapter
Product Category
Mini Split Accessories
Connection Type
Flared
Dimensions
End 1 Connection Size
3/8 Inch
End 2 Connection Size
1/2 Inch
Product Weight
0.5 Pounds
Warranty Information
Parts W
90 Days
Overview
Product Category
Mini Split Accessories
