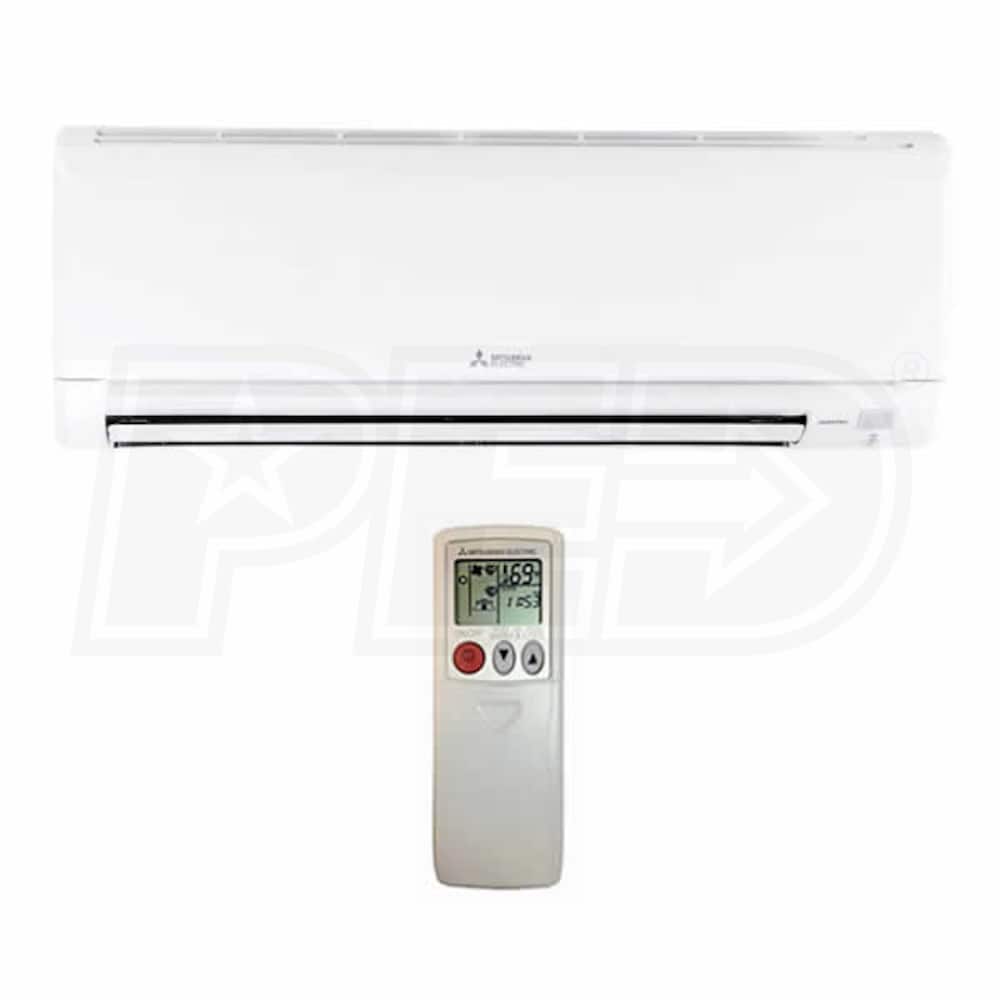

Mitsubishi GL-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone

Model:

MSZ-GL18NA-U1

Write A Review
$876.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
synchrony card logo
$146 / Month
Suggested monthly payments with 6 month financing.
Mitsubishi GL-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone
Mitsubishi GL-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone
Model: MSZ-GL18NA-U1
$876.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires a compatible outdoor condenser for functionality. For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MSZ-GL18NA-U1 is a wall mounted heat pump mini split indoor unit for use in multi-zone systems. The functional design is paired with quiet operations that provide comfort without disrupting your space and installing a Mitsubishi wall mounted indoor unit is quick and easy thanks to their convenient mounting plate. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this unit fits the needs of nearly any room. Whether you are designing a primary heating and cooling system or supplementing an existing one, the MSZ-GL18NA-U1 is an excellent addition.
  • Advanced Filtration System
  • The MSZ-GL18NA-U1 combines a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
  • Hot-Start
  • Mitsubishi's hot-start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSZ-GL18NA-U1 can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Multiple Vane Control Options
  • Auto mode selects the best vane position based on operating mode, and the swing modes cycle through all positions for maximum coverage. When wide mode is activated, fan speed increases beyond the current setting.
  • Compatible With These Mitsubishi Outdoor Units
  • MUZ-GL18NA-U1, MXZ-3C24NA, MXZ-3C30NA, MXZ-4C36NA, MXZ-5C42NA, MXZ-8C48NA, MXZ-3C24NAHZ, MXZ-3C30NAHZ, MXZ-4C36NAHZ, MXZ-5C42NAHZ, MXZ-8C48NAHZ
  • Product Note
    This product requires a compatible Mitsubishi outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.


    Mitsubishi products include a 5-year parts warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at metahvac.com.

Specifications

MSZ-GL18NA-U1
specs product image PID-65043
Overview
Product Category
Mini Split System Components
General Information
Type
Wall Mounted
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Moisture Removal
4.6 Pints/Hour
Maximum Air Flow
646 CFM
Minimum Air Flow
233 CFM
Minimum Sound Level
28 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 Inches
Product Width
36 5/16 Inches
Product Depth
9 13/16 Inches
Product Weight
28 Pounds
Shipping Weight
35 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
