Mitsubishi Diamondback - 3/8" - Ball Valve - 700 PSI - Flare Connections - Insulated - Schrader Service Valve
Model: BV38FFSI2
+
Share This Product
-
Product Description
-
1Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Product Compatible With
- 3/8" Mini Split Line Sets

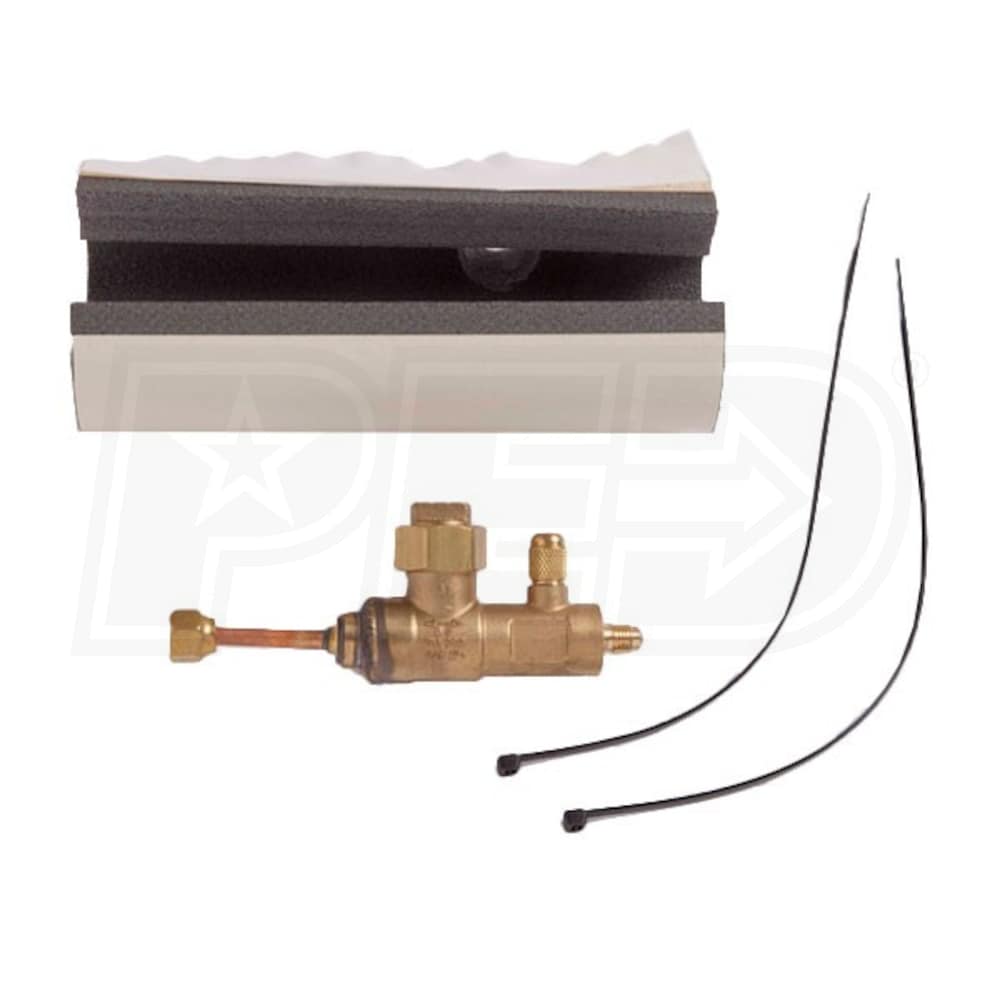

- Product Includes
- (1) Mitsubishi 3/8" BV38FFSI2 Ball Valve
- (1) HKG-20HF Ball Valve Insulation
- (2) Zip Ties
Servicing the 3/8" refrigerant lines of your mini split system is easy with flared BV38FFSI2 ball valves, which feature a design that allows you to easily suspend refrigerant flow without removing the seal cap.
Specifications
General Information
Type
Ball Valve
Product Line
Diamondback
Connection Type
Flared
Material
Brass
Performance
Minimum Operating Temperature
-40 F
Maximum Operating Temperature
325 F
Maximum Operating Pressure
700 PSI
Dimensions
Connection Size
3/8 Inch
Product Height
2 3/4 Inches
Product Width
8 9/16 Inches
Product Depth
2 3/4 Inches
Product Weight
0.75 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
- Product Compatible With
- 3/8" Mini Split Line Sets
- Product Includes
- (1) Mitsubishi 3/8" BV38FFSI2 Ball Valve
- (1) HKG-20HF Ball Valve Insulation
- (2) Zip Ties
Servicing the 3/8" refrigerant lines of your mini split system is easy with flared BV38FFSI2 ball valves, which feature a design that allows you to easily suspend refrigerant flow without removing the seal cap.
Specifications
General Information
Type
Ball Valve
Product Line
Diamondback
Connection Type
Flared
Material
Brass
Performance
Minimum Operating Temperature
-40 F
Maximum Operating Temperature
325 F
Maximum Operating Pressure
700 PSI
Dimensions
Connection Size
3/8 Inch
Product Height
2 3/4 Inches
Product Width
8 9/16 Inches
Product Depth
2 3/4 Inches
Product Weight
0.75 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+−
Specifications
General Information
Type
Ball Valve
Product Line
Diamondback
Connection Type
Flared
Material
Brass
Performance
Minimum Operating Temperature
-40 F
Maximum Operating Temperature
325 F
Maximum Operating Pressure
700 PSI
Dimensions
Connection Size
3/8 Inch
Product Height
2 3/4 Inches
Product Width
8 9/16 Inches
Product Depth
2 3/4 Inches
Product Weight
0.75 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Q&A
(3)
+−

Search Product Q&A's
Answered by Chris, the eComfort Product Expert
+−
Where do I connect this ball valve? Between the line set and indoor unit or between the line set and outdoor unit?
Thu N.
from California
July 08, 2016
Answer
The ball valve is typically installed between the line sets and outdoor unit of a multi-zone system to allow you to isolate and service a single zone without needing to shut down the entire system.
Was this answer helpful?
Yes

0
No

0
+−
So there is not much need for two of these valves for a simple single system with one outdoor unit and one indoor unit with 25' refrigerant lines. Right?
Bob F.
from Washington
July 02, 2016
Answer
No, the main purpose of these are to make individual circuits serviceable in a multi-zone application.
Was this answer helpful?
Yes

0
No

0
+−
When is this part used for? Is it needed for new installations?
Larry
from Ohio
February 24, 2016
Answer
Ball valves can be used to isolate individual indoor units from the remainder of the refrigerant circuit. This can be useful if a single unit needs to be serviced or removed from the system. They are not required for installation, but also can not be added after installation unless the system is purged of refrigerant. Keep in mind you will need a ball valve for each the liquid and suction lines to isolate the circuit.
Was this answer helpful?
Yes

0
No

0
