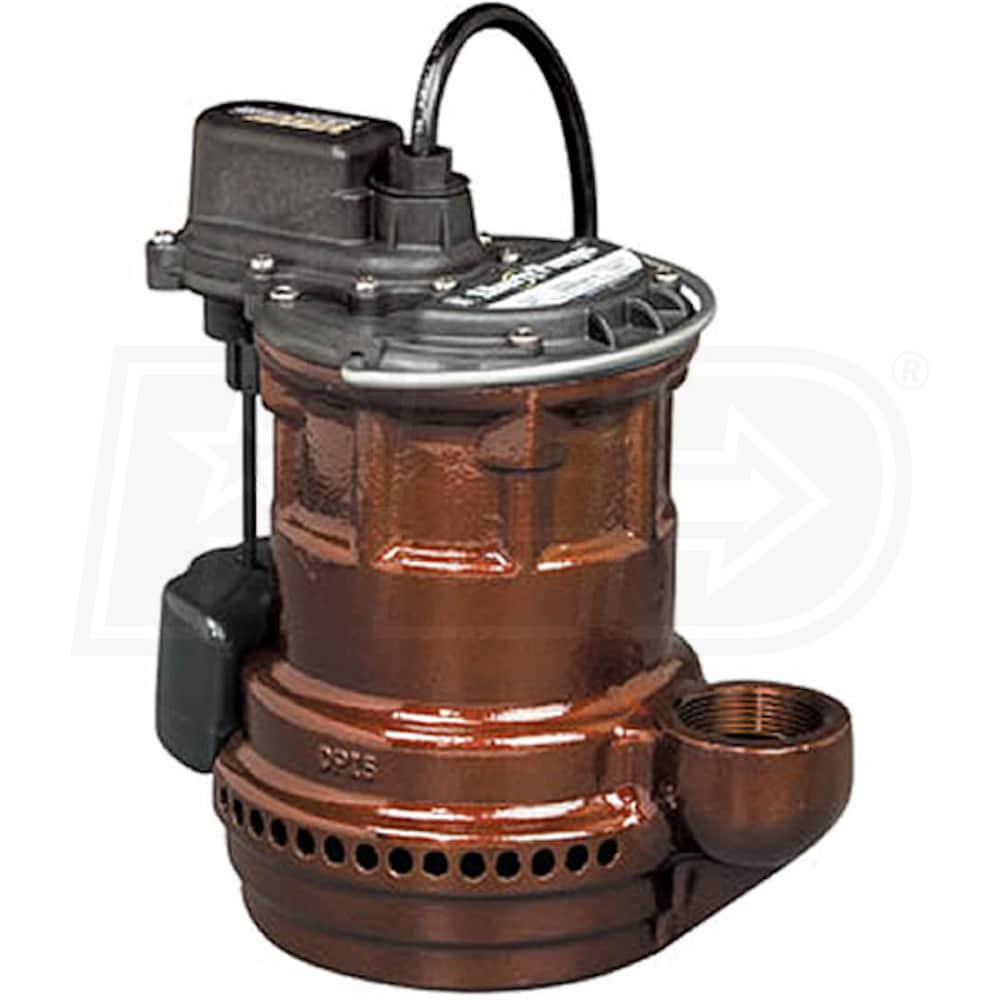

Liberty Pumps 247 VMF - 1/4 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch

Model:

247

Write A Review
$195.75
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Apr 22nd
Shipping to60601
Liberty Pumps 247 VMF - 1/4 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Liberty Pumps 247 VMF - 1/4 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model: 247
$195.75
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Automatic Submersible Cast Iron Sump Pump
  • A "workhorse" designed for years of reliable operation
  • Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
  • A solid, one-piece housing that eliminates lower motor seal
  • Magnetically Operated Vertical Float Switch
  • Provides automatic operation in sump pits as small as 10-inches
  • Rugged, Energy Efficient & Thermally Protected 1/4 HP Motor
  • Hermetically sealed, permanently lubricated design
  • 8-Vane, Glass Reinforced Thermoplastic Impeller
  • Non-cloggy design for superior solid handling (up to 1/4")
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Standard Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest sump pits
  • 416 Stainless Steel Rotor Shaft
  • With permanently lubricated bearings for extended pump life
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

247
specs product image PID-16018
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.25 inch
Float Type
Vertical Float

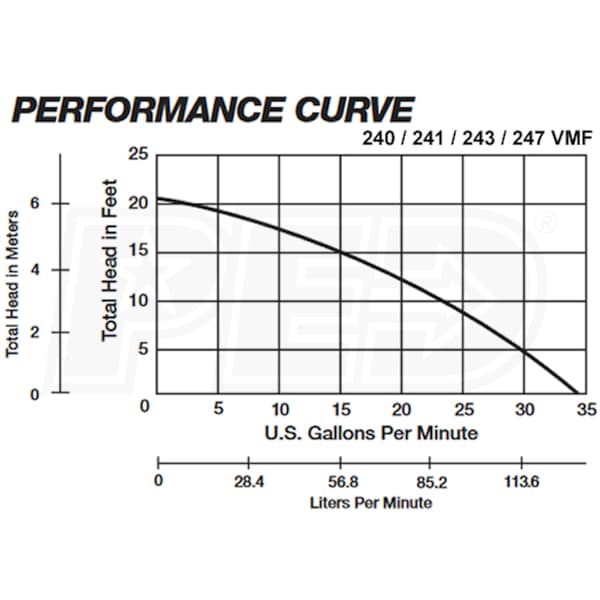

GPH @ 0 feet
2040
GPH @ 5 feet
1800
GPH @ 10 feet
1440
GPH @ 15 feet
900
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Engine
Horsepower
.25 hp
Overview
Product Category
Sump Pump
Weight
21 Pounds
Consumer Warranty
3 Years
Product Length
9 Inches
Product Width
9 Inches
Product Height
10 Inches
UPC
671812002478

Reviews

(14)
Liberty Pumps 247 Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Ken, the eComfort Product Expert
How reliable is the magnetic vertical float, and can it be replaced or repaired if it fails in 2-3 years?
Richard K.
from New Jersey
February 03, 2017
