Honeywell Aquastat Relay Immersion Type Controller for Aquastat Relay Applications

Honeywell Aquastat Relay Immersion Type Controller for Aquastat Relay Applications
Model: L8148J1009
$227.50
In-Stock
Ships Thursday, Jan 18th
Free Shipping &
Tax-Free (Except IL)

Free ShippingNo Sales Tax* (Except IL)$227.50Buy Now
No Sales Tax* (Except IL)$227.50Visit Site
In-Stock
Ships Thursday, Jan 18th
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    Honeywell Aquastat Relay Immersion Type Controller for Aquastat Relay Applications

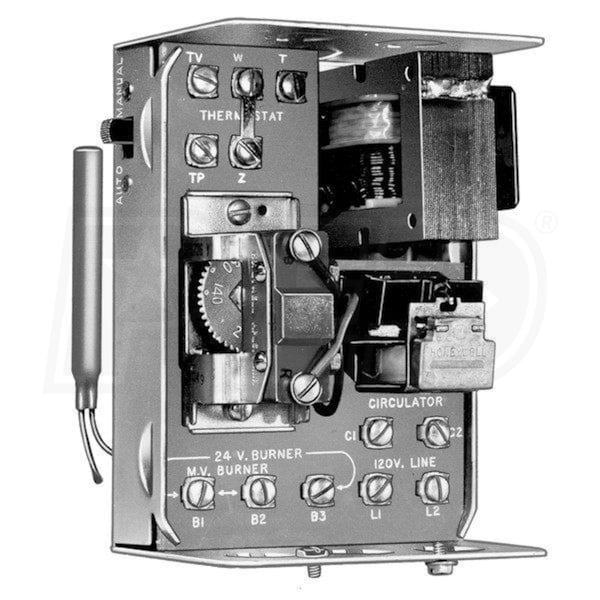

    The Honeywell L8148J1009 Aquastat Relay Immersion Type Controller is an immersion-type controller that combines high limit protection with switching relay control of burner and circulator motors.

    Honeywell L8148J1009 Aquastat Relay Immersion Type Controller Features:
    • High limit opens burner circuit only
    • Include transformer and accessory terminals for adding a remote low limit controller
    • Case available for horizontal or vertical mounting
    Honeywell L8148J1009 Aquastat Relay Immersion Type Controller Includes:
    • Well adapter, tube of heat conductive compound and range stops
    Honeywell L8148J1009 Aquastat Relay Immersion Type Controller Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
L814
Limit Type
High
High Differential Temperature Type
Fixed
UPC
085267055239
Electrical Data
Maximum Load at 120V - AFL
7.4 Amps
Maximum Load at 120V - ALR
44.4 Amps
Maximum Load at 240V - AFL
3.7 Amps
Maximum Load at 240V - Resistive
22.7 Amps
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Capillary Length
4.5 Inches
Product Height
6.13 Inches
Product Width
3.13 Inches
Product Length
4.31 Inches
Product Weight
4.35 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Certifications
UL Listed
Yes
CSA Listed
Yes
Features
Features

    Honeywell Aquastat Relay Immersion Type Controller for Aquastat Relay Applications

    The Honeywell L8148J1009 Aquastat Relay Immersion Type Controller is an immersion-type controller that combines high limit protection with switching relay control of burner and circulator motors.

    Honeywell L8148J1009 Aquastat Relay Immersion Type Controller Features:
    • High limit opens burner circuit only
    • Include transformer and accessory terminals for adding a remote low limit controller
    • Case available for horizontal or vertical mounting
    Honeywell L8148J1009 Aquastat Relay Immersion Type Controller Includes:
    • Well adapter, tube of heat conductive compound and range stops
    Honeywell L8148J1009 Aquastat Relay Immersion Type Controller Warranty:
    • Parts: 1 Year
