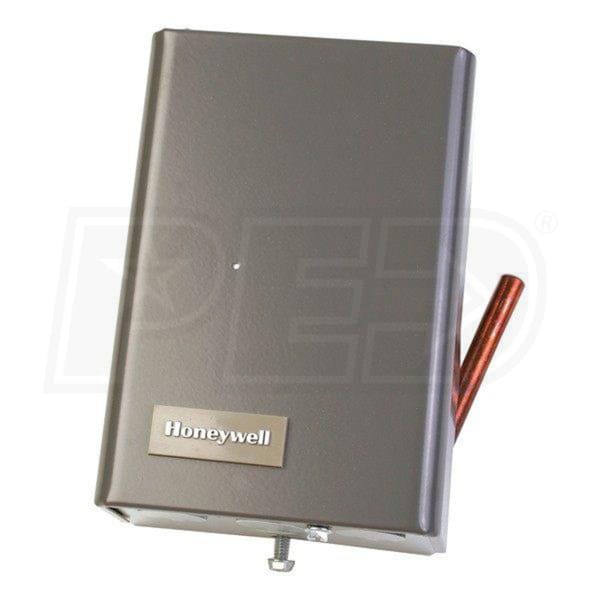

Honeywell Home-Resideo Triple Aquastat Relay - Immersion Type - For Circulator or High/Low Limit Applications

Model:

L8124A1007

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honeywell Home-Resideo Triple Aquastat Relay - Immersion Type - For Circulator or High/Low Limit Applications
Honeywell Home-Resideo Triple Aquastat Relay - Immersion Type - For Circulator or High/Low Limit Applications
Model: L8124A1007
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    The Honeywell Home-Resideo L8124A1007 Triple Aquastat Relay Immersion Type Controller for High Limit Protection is an immersion-type controller that combines high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service.
  • Honeywell Home-Resideo L8124A1007 Features
  • Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems
  • Provide multizone control by using a separate circulator and R845 Relay for each zone
  • Mount directly to boiler
  • Requires 24 Vac thermostat with heat anticipator set at .2A
  • Diaphragm powerhead and Micro Switch assembly that responds to temperature changes in boiler water
  • Product Includes
  • Diaphragm powerhead and Micro Switch assembly that responds to temperature changes in boiler water

Specifications

L8124A1007
specs product image PID-35541
Overview
Product Category
Thermostats and Controls
UPC
085267054850
General Information
Product Line
L812
Product Category
Thermostats and Controls
Limit Type
High and Low
High Differential Temperature Type
Fixed
Low Differential Temperature Type
Adjustable
Performance
Minimum Operating Temperature
130 F
Maximum Operating Temperature
240 F
Maximum Operating Pressure
200 PSI
Electrical Data
Maximum Load at 120V - AFL
7.4 Amps
Maximum Load at 120V - ALR
44.4 Amps
Maximum Load at 240V - AFL
3.7 Amps
Maximum Load at 240V - Resistive
22.2 Amps
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
6 1/8 Inches
Product Width
3 1/8 Inches
Product Length
4 5/16 Inches
Product Weight
3.05 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
