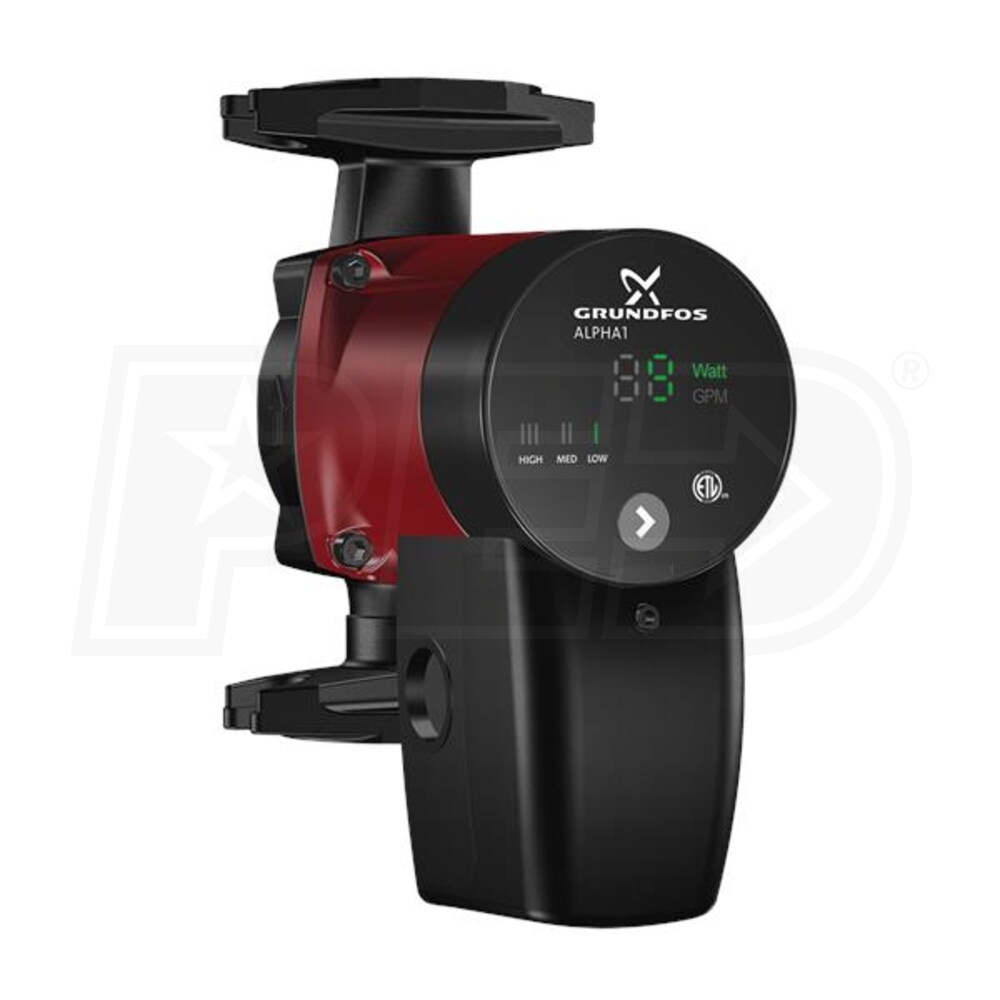

Grundfos ALPHA1 - 1/16 HP - Variable-Speed Circulation Pump - Cast Iron - GF 15/26 Flange - With Terminal Box

Model:

ALPHA1 15-55F

Write a Review
$155.00
Holiday Shipping Schedule
Holiday Schedule -
In-Stock
Ships in 1-2 Business Days
Shipping to60601
Grundfos ALPHA1 - 1/16 HP - Variable-Speed Circulation Pump - Cast Iron - GF 15/26 Flange - With Terminal Box
Grundfos ALPHA1 - 1/16 HP - Variable-Speed Circulation Pump - Cast Iron - GF 15/26 Flange - With Terminal Box
Model: ALPHA1 15-55F
$155.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Grundfos ALPHA1 pumps are a culmination of years of pump manufacturing experience, combining the best features of Grundfos circulators into a single pump while remaining easy to operate. The ALPHA1 15-55F is a variable speed circulator designed to provide consistent flow in a wide variety of applications. Constructed of cast iron, the ALPHA1 is designed to provide year after year of reliable use.
  • Durable Cast Iron Construction
  • The Grundfos ALPHA1 15-55F is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.
  • Additional Protection
  • The ALPHA1 features an integrated check valve to automatically prevent backflow in your system as well as nut captures for flanges.
  • Powerful Circulation
  • The ALPHA1 boasts the highest torque rating in its class. Its unique start feature attempts to restart indefinitely every seven seconds in blocked rotor conditions.
  • Preset Performance Modes
  • Grundfos ALPHA1 pumps come with several constant pressure modes that adjust based on your water demand and is designed to simplify the integration of the pump into your hydronic system.
  • Large, Easy-to-Read Display
  • The integrated bright LED-lit display allows at-a-glance readings of either flow rate or power consumption.
  • Whisper Quiet Operation
  • Tested in one of the best European sound labs, the ALPHA1 operates at an extremely quiet 19.2 decibels.
  • Product Note
    Cast iron cannot be used in domestic hot water or potable water applications.

Specifications

ALPHA1 15-55F
specs product image PID-81549
General Information
Product Line
ALPHA1
Motor Type
Variable Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Wet Rotor
DHW Compatible Learn More
No
UPC
05713826610364
Additional Model Numbers

99287256, ALPHA1 15-55F

Performance
Maximum Head
19 Feet
Maximum Flow Rate
21 GPM
Minimum Fluid Temperature
36 F
Maximum Fluid Temperature
230 F
Horsepower
1/16
Maximum Operating Pressure
150 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.65 Amps
Dimensions
Product Height
6 1/2 Inches
Product Width
3 13/16 Inches
Product Depth
6 3/8 Inches
Flange Connection
GF 15/26
Warranty Information
Parts Warranty Learn More
2 Years
