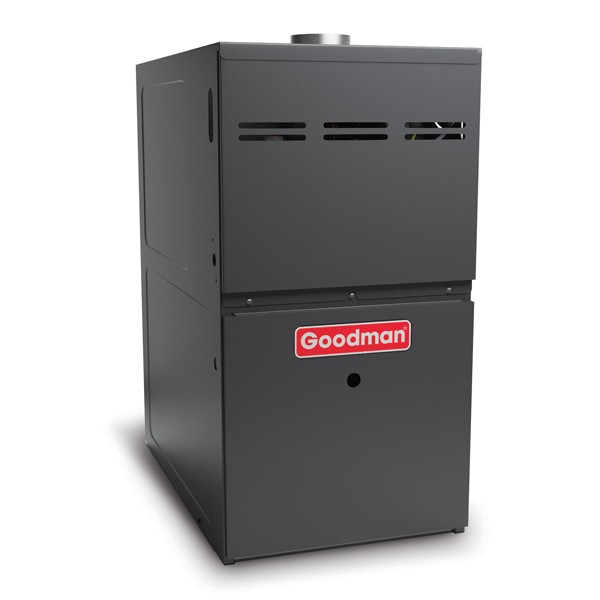

Goodman GME8 - 80,000 BTU - Gas-Fired Furnace - NG - 80% AFUE - Two-Stage - Upflow/Horizontal - Multi-Speed

Model:

GME80805DN

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman GME8 - 80,000 BTU - Gas-Fired Furnace - NG - 80% AFUE - Two-Stage - Upflow/Horizontal - Multi-Speed
Goodman GME8 - 80,000 BTU - Gas-Fired Furnace - NG - 80% AFUE - Two-Stage - Upflow/Horizontal - Multi-Speed
Model: GME80805DN
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GME8 two-stage, multi-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. It is equipped with a four-speed ECM blower motor, which provides your home with comfortable, efficient circulation through a wide variety of conditions. The GME80805DN was designed for ease of installation, it has multiple options for orientation and gas and electrical connections. Maintenance is just as easy as installation thanks to the unit's self-diagnosing control board. Backed by Goodman's generous warranty, the GME8 provides comfort and peace of mind to homeowners.

    Product Features

    Advanced Heat Exchanger Design
    The GME8 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized-steel is used in construction for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.

    Dual$aver Technology
    Dual$aver Technology allows GME8 furnaces to begin operating at the lower stage for ideal efficiency. The control board of the furnace then uses historical data about the rate of temperature change in your home to make an intelligent decision about whether the higher stage of heating will be necessary.

    Quiet Comfort
    Goodman takes great pride in producing equipment that doesn't disrupt your home. The blower, gas valve, and draft inducer of the GME80805DN were selected for their incredibly low sound levels. Additionally, this unit's fan speed options make it easy to maintain virtually silent circulation.

    Secure Cabinet
    All GME8 furnaces are protected by a durable steel cabinet with an insulated heat exchanger section to prevent heat loss.

    Easy Integration
    The GME80805DN makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.

California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GME80805DN
specs product image PID-26631
General Information
Type
Gas Furnace
Product Line
GME8
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Two Stage
Blower Motor Type
Multi-Speed
Motor Type
EEM
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide (Except CA)
Installation Available
No
UPC
663051572362
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
80 %
Heating BTU
80000
High Fire Output
64000 BTU
Maximum Air Flow
2000 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14.8 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
4 Inches
Product Height
33 3/8 Inches
Product Width
24 1/2 Inches
Product Depth
28 3/4 Inches
Shipping Weight
123 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
5860497
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
20 Years
