Generac PWRcell™ 9kWh Essentials Plus Package 7.6kW (120/240V Single-Phase) Inverter, Outdoor Cabinet w/ (3) 3.0 kWH Batteries & Solar Accessories

Model:

EGD-PWRCELL-KIT-A

Write A Review
$15,537.72
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
synchrony card logo
$234 / Month
With our 88 months 7.99% APR*
88 fixed monthly payments required.
Generac PWRcell™ 9kWh Essentials Plus Package 7.6kW (120/240V Single-Phase) Inverter, Outdoor Cabinet w/ (3) 3.0 kWH Batteries & Solar Accessories
Generac PWRcell™ 9kWh Essentials Plus Package 7.6kW (120/240V Single-Phase) Inverter, Outdoor Cabinet w/ (3) 3.0 kWH Batteries & Solar Accessories
Model: EGD-PWRCELL-KIT-A
$15,537.72
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

  • Generac PWRcell™ 7.6 kW 120/240V Single Phase Inverter Package
  • Includes everything but the solar panels
  • Bi-Directional, Rebus™ Powered Design
  • A simple, efficient design for integrating smart batteries with solar
  • 7,600-Watt (Grid-Tie) & 8,000-Watt (Backup) Rated Watts
  • Provides up to 10,000 starting watts during backup operation
  • Plenty of power to start larger items around the house
  • User-Selectable Modes
  • For backup power, self-supply, time-of-use and zero-export
  • Grid Sell & Prioritized Charging From Renewables
  • Provides more flexibility to the homeowner
  • PWRcell™ Outdoor Battery Cabinet
  • Scale in size from 9 kWh to 18 kWh in a single cabinet
  • Add another cabinet for up to 36 kWh of power
  • (3) Generac PWRcell™ 3 kWh DCB EX Battery Module (Included)
  • A powerful battery in a compact footprint
  • Generac PV Link™ Solar Optimizer*
  • Lower failure risk than module-level optimizers
  • 2017/2020 NEC Rapid Shutdown Compliant*
  • When used w/ Generac SnapRS™
  • Generac SnapRS™ Inline Disconnect Switch
  • For rapid shutdown compliance for solar + storage systems
  • 2017/2020 NEC 690.12 Compliant
  • Free System Monitoring w/ PWRview™ Web Portal & Mobile App
  • Provides real-time energy usage
  • Dashboards for solar & battery usage
  • Includes (2) 300-Amp Universal Current Transformers (CTS)
  • For main service panels up to 300-Amps
  • 10-Year Limited Warranty On Inverter, Cabinet & Batteries
  • 25-Year Warranty On PV Link™ & SnapRS™
  • ***Please Note - Requires Solar Panels (Not Included)

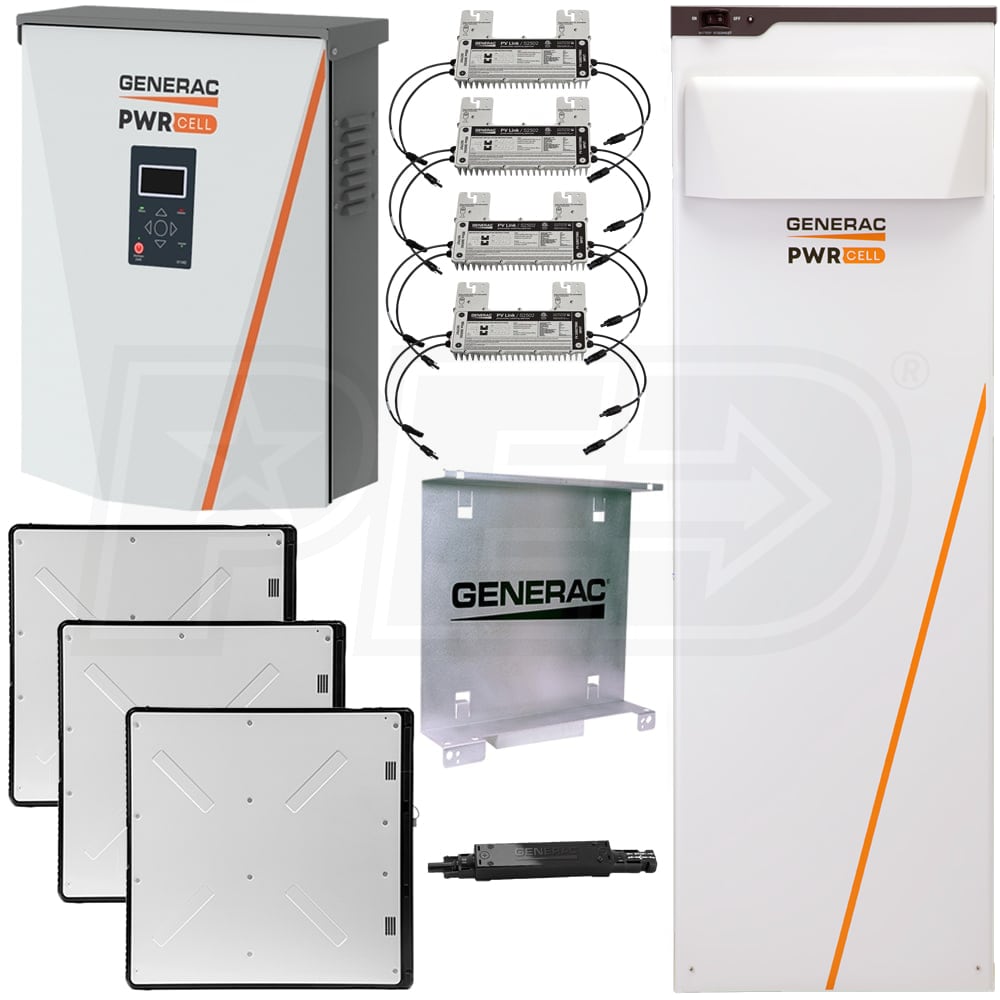

  • Product Includes
    • (1) Generac PWRcell™ 7.6kW (120/240V Single-Phase) Inverter w/ 300A CTs (APKE00014)
    • (1) Generac PWRcell™ Outdoor Rated (3R) Battery Cabinet (APKE00028)
    • (3) Generac PWRcell™ 3.0kWh DCB Battery Module (BJ-DCB05ZKBG)
    • (4) Generac PWRcell™ PV Link™ 2500 Watt MPPT Substring Solar Optimizer (APKE00010)
    • (1) Generac PWRcell™ Module Spacer Kit (APKE00008)
    • (28) Generac SnapRS™ Inline Disconnect Switch (APKE00011)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Generac PWRcell™ 7.6kW (120/240V Single-Phase) Inverter w/ 300A CTs (APKE00014)
  • (1) Generac PWRcell™ Outdoor Rated (3R) Battery Cabinet (APKE00028)
  • (3) Generac PWRcell™ 3.0kWh DCB Battery Module (BJ-DCB05ZKBG)
  • (4) Generac PWRcell™ PV Link™ 2500 Watt MPPT Substring Solar Optimizer (APKE00010)
  • (1) Generac PWRcell™ Module Spacer Kit (APKE00008)
  • (28) Generac SnapRS™ Inline Disconnect Switch (APKE00011)
EGD-PWRCELL-KIT-A
specs product image PID-112491
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
Product Specs
Battery Storage (Wh)
9
Battery Type
DC-Coupled
XVT076A03
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
Weight
62.7 Pounds
Consumer Warranty
10 Years
Product Length
24.5 Inches
Product Width
19.25 Inches
Product Height
8 Inches
Product Specs
Enclosure
NEMA 3R
AC Output / Grid-Tie
Rated AC Power Output
7600 Watts
AC Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
Max Continuous Output Current
32 A, RMS
Ground-Fault Isolation Detection
Included
Charge Battery From AC
Yes
THD (Current)
<2%
Typical Nighttime Power Consumption
<7 Watts
AC Output / Backup
Rated AC Backup Power Output (Islanded)
8000 Watts
Max AC Backup Power Output
10000 Watts
AC Backup Output Voltage
120/240V Single-Phase
AC Frequency
60 Hz
AC Circuit Breaker
50 Amps
THD Voltage
<2%
Automatic Switchover Time
<1 Seconds
Typical Nighttime Power Consumption
30 Watts
DC Input
DC Imput Voltage
360-420 VDC
Nominal DC Bus Voltage
380 VDC
Max Import Current
20
Max Inmput Current
30
Reverse Polarity Protection
Yes
Ground-Fault Isolation Detection
Yes
Transformerless, Ungrounded
Yes
Typical Nighttime Power Consumption
7 Watts
DC Input / Battery
Max Continuous Power
8000 Watts
Internal DC Distribution Breakers
4 x 2-Pole 30 Amp
DC Fuses on Plus & Minus
40 Amp
2-Pole Disconnection
Yes
Efficiency
Peak Efficiency
97%
CEC Weighted Efficiency
96.5%
APKE00028
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
General Information
Product Category
Generator - Solar
Overview
Product Category
Generator - Solar
Weight
55 Pounds
Consumer Warranty
10 Years
Commercial Warranty
10 Years
Product Length
17.5 Inches
Product Width
18 Inches
Product Diameter
3.5 Inches
APKE00010
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
7.3 Pounds
Product Length
15.4 Inches
Product Width
2 Inches
Product Height
9.6 Inches
Product Specs
Rated Watts
2500 Watts
Enclosure
NEMA 3R
APKE00008
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
.17 Pounds
Certification
UL1741
Product Length
7 Inches
Product Width
1 Inch
Product Height
1 Inch
