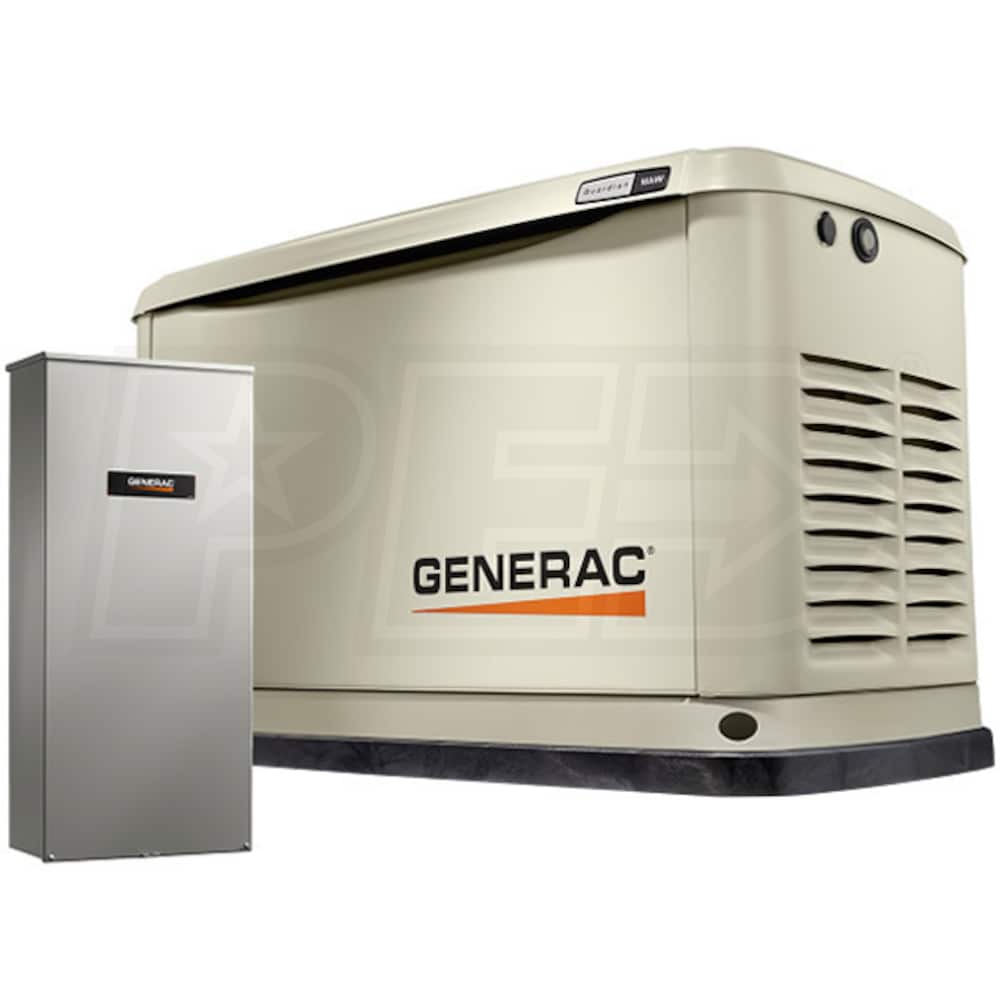

Generac Guardian® 16kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi
Model:
7177
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
12
Model: 7000
$152.99
Model: 7027
$83.99
Only 1 In-Stock
$164.99
In-Stock
$141.99
Only 2 In-Stock
$155.99
In-Stock
$22.99
Only 4 In-Stock
Model: 6664
$239.99
In-Stock
Model: 5703
$27.99
Only 1 In-Stock
Model: EGD-GENCWKIT
$460.99
Only 2 In-Stock
Model: 0J5141
$109.99
Factory-Direct
$327.99
Only 2 In-Stock
$389.00
In-Stock
Features

Generac Guardian® 16kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 16k Guardian Air-Cooled Standby Generator System
- Protects your home and family during a power outage
- Includes Mobile Link™ Wi-Fi Remote Monitoring*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection and wireless router
- 5-Year Limited Warranty
- Plus 24/7-365 Customer Support
- Have your questions answered when it's convenient for you
- 100-Amp Automatic Transfer Switch w/ Integrated Load Center
- NEMA 3R Outdoor Aluminum enclosure
- Great when main breaker panel is located outdoors
- 16-Circuit Essential Circuit Load Center
- For large main service & only partial generator backup
- Allows you to backup 120V & 240V circuits
- Compatible w/ 1" standard, tandem, GFCI & AFCI breakers
- NEW Generac G-Force 800 Series Engine
- Hydraulic lifters for improved performance & less maintenance
- Full pressure lubrication system w/ 2 year oil change interval
- Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
- Connects to your existing LP or natural gas fuel supply
- TRUE POWER™ Electrical Technology
- Less than 5% Total Harmonic Distortion (THD) for utility grade power
- Automatic Digital Voltage Regulation (+/-1%)
- Allows for faster response time & maximum motor starting ability
- Evolution™ 2.0 Digital Controller
- Multilingual, 2-Line LCD display for simple, straightforward operation
- Programmable-exerciser helps prevent oil seal drying and damage
- QUIET-TEST™ Self-Test Mode
- Runs at a lower RPM for a five or twelve minute test
- Aluminum Enclosure w/ RhinoCoat™ Powder-Coated Finish
- Corrosion resistant design for all weather conditions
- Installation Flexibility*
- Can be installed within 18" of a building
- *Always check local building codes
- Generac Standby Generators & Engines - Built In The USA*
- Built in the USA using domestic & foreign parts
- Also Includes
- Smart battery charger & 14" Flexible fuel line connector
- Please Note - Battery Not Included (Sold Separately)
- Automatic Transfer Switch Model # RXG16EZA3
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
7177

Overview
Weight
420 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
UPC
696471077124
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
16000 Watts
Surge Watts
16000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
16000 Watts
LP Power Capacity
16000 Watts
NG Fuel Consumption @ 50% Load
182 ft³/hr
NG Fuel Consumption @ 100% Load
245 ft³/hr
LP Fuel Consumption @ 50% Load
1.70 gallons/hr
LP Fuel Consumption @ 100% Load
2.99 gallons/hr
Rated Amps
66.7 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
16
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
70 Amps
A/C Ton Rating
4-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
816 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Reviews
(3)
Generac Guardian 7177 Reviews & Ratings

Power Ready When Needed
By Don C.
Diamond Bar, California
Purchased 12/09/2020 |
Review Posted 02/25/2021
Can't wait for the power to go out! Never thought I would say that, but it will be neat to be the only house of my street with the lights on! The only con is I wish it was quieter.
Don C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Easy To Use, Reliable, Id Buy It Again
Cons:
Too loud

Deceived
By Robert G.
Sullivan, Wisconsin
Purchased 05/09/2020 |
Review Posted 09/03/2020
The transfer box they sent with the generator $500.00 was not legal, as it did not have a service disconnect. So I bought a legal one at a local dealer and had it installed. I called Electric Generators Direct and they refused to take the transfer box back unless we returned the generator with it. I called Generac directly and they did nothing to help. VERY ANGRY! Bob from WI PS The generator is Good.
Robert G. Does Not Recommend This
Was this review helpful?
Expert Response
It states in the product specs and on the spec sheet that this switch does not have a service disconnect. We apologize for any confusion this may have caused you.

Jared G.
eComfort Product Expert
Manufacturer Response
Thank you for the review, we appreciate your feedback. We recommend contacting our customer support team at 888-436-3722 as they will be better able to assist you.

Rating Breakdown
4/5
4/5
4/5
1/5

Peace Of Mind
By Mike D.
Simi Valley, California
Purchased 07/12/2020 |
Review Posted 08/03/2020
Installed the generator and 6 days later lost power for a few hours starting at 11pm. Once the power went out the generator fired up and the lights came back on and everything worked flawlessly until the power was restored at 2am. Once the power came back on it was a smooth cut-over and the generator turned off.
Mike D. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for the rating, we appreciate your feedback. If you have any questions, please do not hesitate to contact our customer support team at 888-GENERAC (436-3722).

Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Reliable, Id Buy It Again
