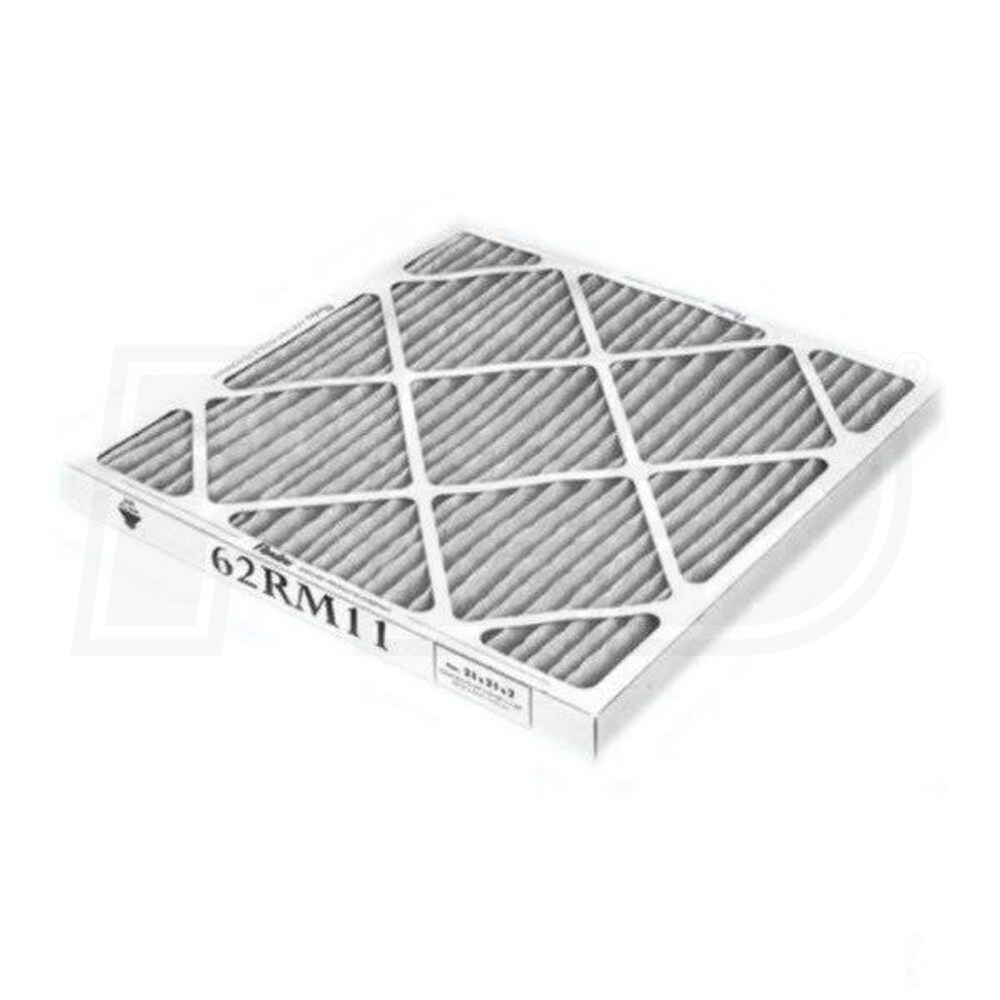

Flanders Pre Pleat 62RM11 - 10'' x 20'' x 2'' - Standard Capacity Pleated Filters - MERV 11 - Qty. 12
Share
+Share This Product
Product Description
Specs
1
Reviews
How-To Articles
Manuals
Product Description
+−
Features
Features
***Shipping Delay*** All Flanders products will be unavailable for shipment until May 2, 2019. The Flanders Pre Pleat 62RM11 Series 85655.021020M11 Standard Capacity Pleated Filter is designed to upgrade your lower efficiency filters to this MERV 11 rated filter. These 10" x 20'' x 2" pleated filters are constructed with a bi-component synthetic media containing tri-lobal fibers with inhomogeneous domains of positive and negative charges. The Pre Pleat 62RM11 filter contains mechanically and electrostatically enhanced fibers to allow enhanced airflow while providing high efficiency and dust holding capacity. Larger incoming contaminants are trapped in the 62RM11's pre-filter while smaller particles are trapped in the highly charged secondary layer increasing the life of downstream filters.
Bi-Component Media
Bi-component synthetic media is constructed of tri-lobal fibers with areas of positive and negative charges to capture contaminants.
Pleated Shape
With a pleated shape, filters resist collapsing, warping, or bending in normal service.
Low Pressure Drop
As air travels through the media, the loss of air pressure is limited.
High Dust Holding Capacity
A high dust holding capacity extends the service life of your filter by allowing it to retain high quantities of dust before replacement.
99% Arrestance
The filter removes 99% of synthetic dust from the airstream.
60-70% Efficiency
The filter removes 60-70% of particulate matter and gaseous material from the airstream.
Specifications
General Information
Product Line
Pre Pleat 62RM11
Material
Synthetic Media
Box Quantity
12
UPC
031949668174
Performance
Filter Efficiency
11 MERV
Dimensions
Nominal Height
10 Inches
Nominal Width
20 Inches
Nominal Depth
2 Inches
Product Weight
11 Pounds
Actual Height
9 1/2 Inches
Actual Width
19 1/2 Inches
Actual Depth
1 3/4 Inches
