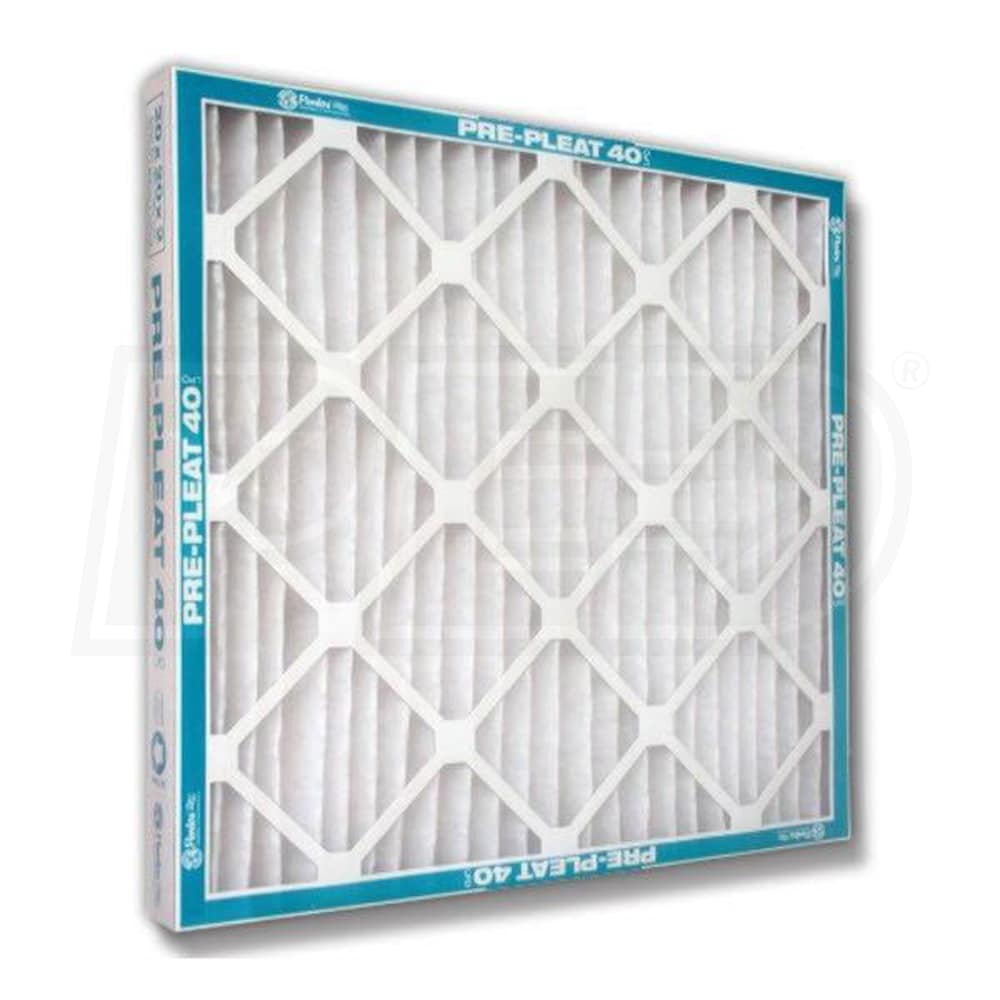

Flanders Pre Pleat 40 LPD - 20'' x 25'' x 4'' - High Capacity Pleated Filters - MERV 8 - Qty. 6

Flanders Pre Pleat 40 LPD - 20'' x 25'' x 4'' - High Capacity Pleated Filters - MERV 8 - Qty. 6
Model: 80255.042025
$88.75
Factory-Direct
Ships in 3 - 4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Tax-Free (Except IL)

Factory-Direct
Ships in 3 - 4 Weeks
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    The Flanders Pre Pleat 40 LPD Series 80255.042025 High Capacity Pleated Filter is designed from recyclable materials to create an efficient and moisture-resistant filter to be used in a variety of applications including heating, air conditioning, and ventilation. These 20" x 25'' x 4" pleated filters are constructed with a MERV 8 rated synthetic media. The Pre Pleat 40 LPD filter is suitable for variable air systems from 0 to 500 FPM. It is designed with a low pressure drop and a high dust holding capacity to lengthen service life. The filters are UL 900 listed for flame resistance. Due to their pleated design, these filters will not collapse, warp, or bend in normal service. Pre Pleat 40 filters can be installed in PF-1 Holding Frames, K-Trac Framing Modules, Surepleat Side Access Housings, and similar hardware. They may be used as pre-filters for Precision Pak, Super Flow V, PrecisionCell, and Rigid Air filters.

    Product Features

    Pleated Shape
    With a pleated shape, filters resist collapsing, warping, or bending in normal service.

    High Dust Holding Capacity
    A high dust holding capacity extends the service life of your filter by allowing it to retain high quantities of dust before replacement.

    Low Pressure Drop
    As air travels through the media, the loss of air pressure is limited.

    95-98% Arrestance
    The filter removes 95-98% of synthetic dust from the airstream.

    30-40% Efficiency
    The filter removes 30-40% of particulate matter and gaseous material from the airstream.

    Product Compatible with
    • PF-1 Holding Frames
    • K-Trac Framing Modules
    • Surepleat Side Access Housings
Specifications
General Information
Product Line
Pre Pleat 40 LPD
Material
Synthetic Media
Box Quantity
6
UPC
031949580599
Performance
Filter Efficiency
8 MERV
Dimensions
Nominal Height
20 Inches
Nominal Width
25 Inches
Nominal Depth
4 Inches
Product Weight
11.8 Pounds
Actual Height
19.5 Inches
Actual Width
24.5 Inches
Actual Depth
3.75 Inches
Features
Features

    The Flanders Pre Pleat 40 LPD Series 80255.042025 High Capacity Pleated Filter is designed from recyclable materials to create an efficient and moisture-resistant filter to be used in a variety of applications including heating, air conditioning, and ventilation. These 20" x 25'' x 4" pleated filters are constructed with a MERV 8 rated synthetic media. The Pre Pleat 40 LPD filter is suitable for variable air systems from 0 to 500 FPM. It is designed with a low pressure drop and a high dust holding capacity to lengthen service life. The filters are UL 900 listed for flame resistance. Due to their pleated design, these filters will not collapse, warp, or bend in normal service. Pre Pleat 40 filters can be installed in PF-1 Holding Frames, K-Trac Framing Modules, Surepleat Side Access Housings, and similar hardware. They may be used as pre-filters for Precision Pak, Super Flow V, PrecisionCell, and Rigid Air filters.

    Product Features

    Pleated Shape
    With a pleated shape, filters resist collapsing, warping, or bending in normal service.

    High Dust Holding Capacity
    A high dust holding capacity extends the service life of your filter by allowing it to retain high quantities of dust before replacement.

    Low Pressure Drop
    As air travels through the media, the loss of air pressure is limited.

    95-98% Arrestance
    The filter removes 95-98% of synthetic dust from the airstream.

    30-40% Efficiency
    The filter removes 30-40% of particulate matter and gaseous material from the airstream.

    Product Compatible with
    • PF-1 Holding Frames
    • K-Trac Framing Modules
    • Surepleat Side Access Housings
Specifications
General Information
Product Line
Pre Pleat 40 LPD
Material
Synthetic Media
Box Quantity
6
UPC
031949580599
Performance
Filter Efficiency
8 MERV
Dimensions
Nominal Height
20 Inches
Nominal Width
25 Inches
Nominal Depth
4 Inches
Product Weight
11.8 Pounds
Actual Height
19.5 Inches
Actual Width
24.5 Inches
Actual Depth
3.75 Inches
Product Specs
+
Specifications
General Information
Product Line
Pre Pleat 40 LPD
Material
Synthetic Media
Box Quantity
6
UPC
031949580599
Performance
Filter Efficiency
8 MERV
Dimensions
Nominal Height
20 Inches
Nominal Width
25 Inches
Nominal Depth
4 Inches
Product Weight
11.8 Pounds
Actual Height
19.5 Inches
Actual Width
24.5 Inches
Actual Depth
3.75 Inches
Reviews
(1)
+
Flanders 80255.042025 Reviews & Ratings
Product Q&A
(1)
+
Can a Pre Pleat 40 be cleaned by reverse flowing with water? How often do you recommend we change filters given that we live in Southern California?
Robert
from California
May 06, 2016
Read Response +
Answer
I would not recommend cleaning the filter with water. You can attempt to vacuum it periodically, but the primary method of ensuring proper filter operation is regular replacement. Replacement frequency depends on use and contaminant levels is the space. I would suggest replacing the filters every 3 months at minimum, and more frequently if the system circulates air continuously.
