First Company 24WCX12-AB
First Company 24WCX12-AB
Hover to zoom
1 Of 5

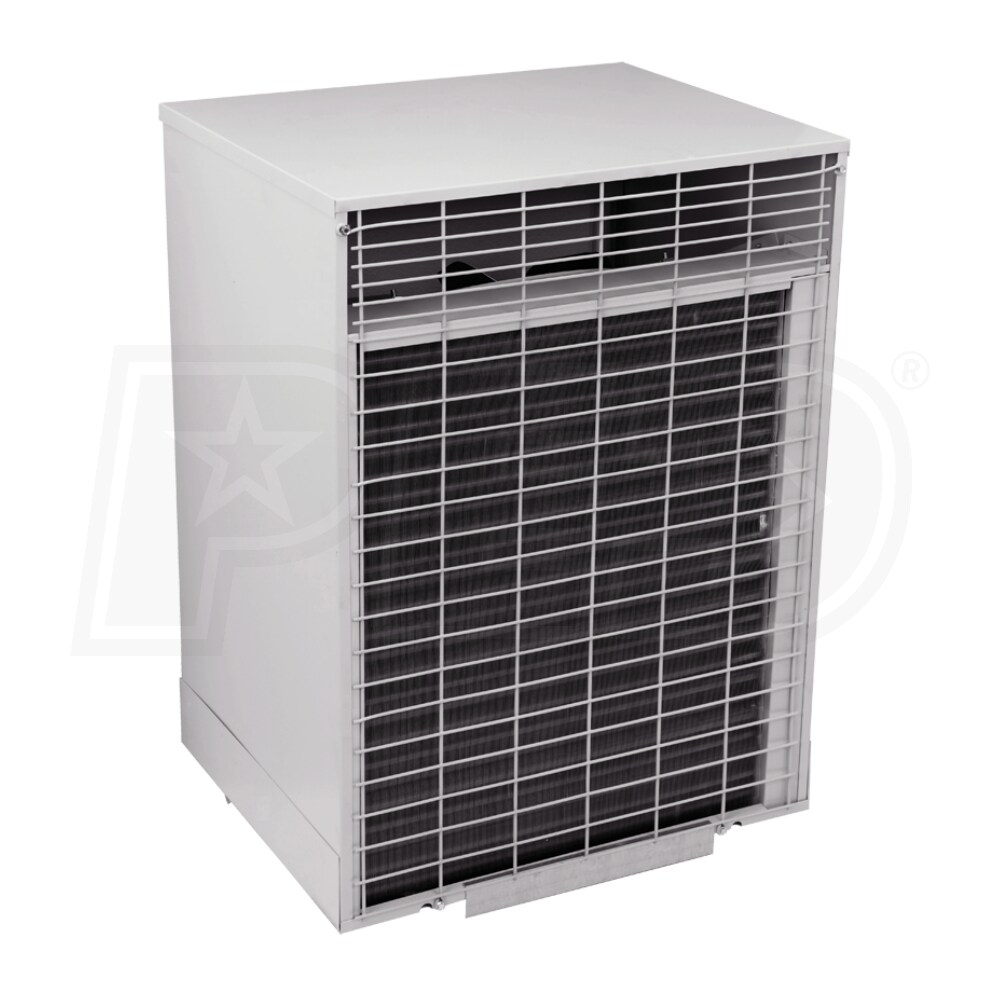

First Company - WCX Series - 2 Ton - Thru-The-Wall Condensing Unit

Model:

24WCX12-AB

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
First Company - WCX Series - 2 Ton - Thru-The-Wall Condensing Unit
First Company - WCX Series - 2 Ton - Thru-The-Wall Condensing Unit
Model: 24WCX12-AB
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Started in 1966, First Company has built and delivered over 5.5 million products to the HVAC industry. With a reputation of being a leader, innovator and trusted supplier, First Company continues to be an independent source of unique fan coils in a rapidly growing HVAC industry. Through-the-wall installation costs are lower than conventional condensing units, making them more cost effective. The First Company through-the-wall condenser are also easier to service and can be done by one person.
  • First Company WCX Series Features
  • Extra-High Efficiency Compressor
  • High Pressure Switch
  • Positive Slope Drain Pan
  • Product Note
    The WCX series are intended for use with blower coil and air handlers with ECM motors only.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

24WCX12-AB
specs product image PID-83887
Overview
Product Category
Air Conditioning Condensers
Additional Model Numbers

24WCX12AB, 24WCX12-AB

General Information
Type
Condenser
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R410A
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Wall Mount
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
23800
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13 Amps
Dimensions
Gas Connection Size
3/4 Inch
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 Inches
Product Width
24 Inches
Product Depth
19 Inches
Product Weight
180 Pounds
Shipping Weight
200 Pounds
