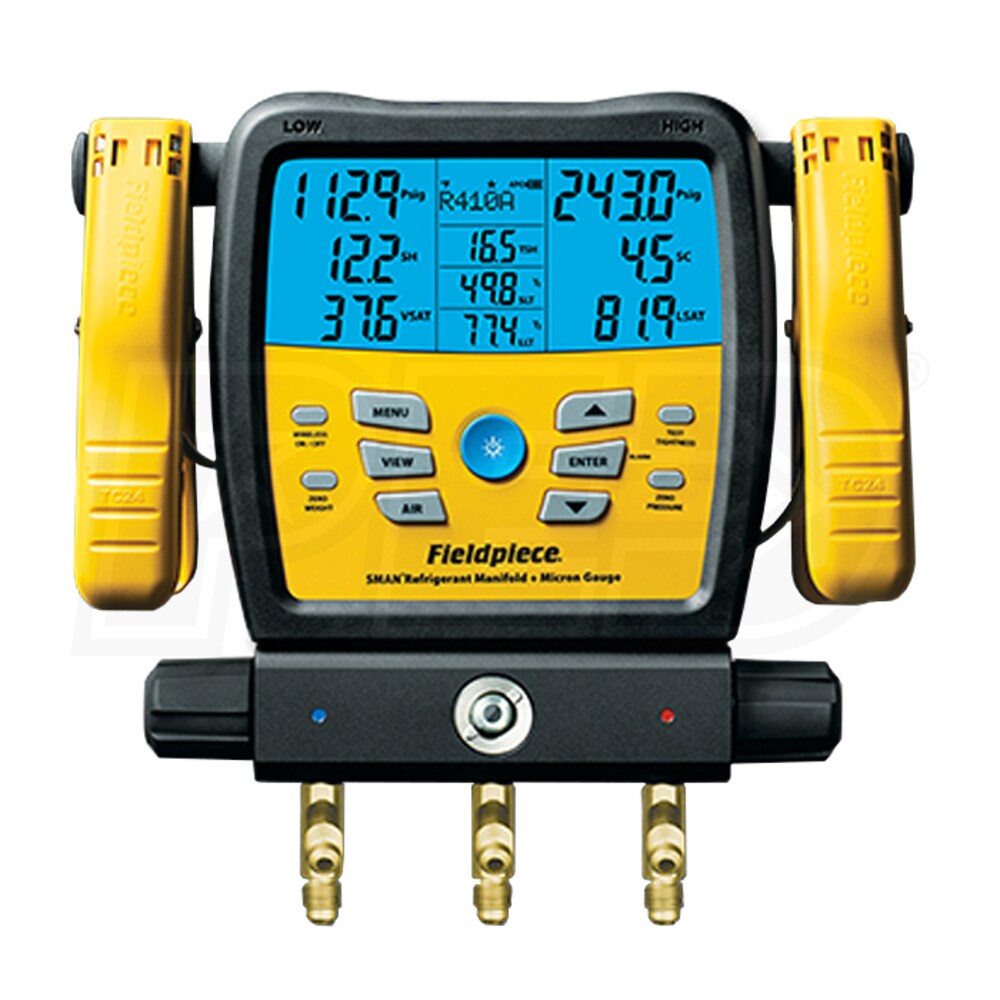

Fieldpiece SMAN™ - Wireless 3-Port Refrigerant Manifold - With Micron Gauge
Model: SM380V
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$454.75
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-3 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    With years of feedback from A/C and refrigeration specialists, Fieldpiece has designed the SMAN™ Refrigerant Manifold to be the toughest and most advanced on the market. The SMAN™ features an extremely rugged overmold casing, reinforced hook and hermetically sealed sight glass to last through years of use. Wireless capabilities, data logging and tightness test allow technicians to get the job done easier, faster and more accurately. The SMAN™ is designed to streamline your job and provide your customers with the answers they need.
  • Data Logging
  • Stores up to 9 jobs internally
  • Easy download via USB port
  • Displays % free storage space before logging begins
  • Logs up to 7 days (168 continuous hours)
  • Tightness Test
  • Check for leaks after repairs or installations
  • View pressure differential over time
  • Timer tracks duration of test
  • Temperature compensated with SL temp to avoid false positives
  • Customizable
  • Adjust auto power off duration
  • Adjust back light duration
  • Set high and low vacuum alarms
  • Select each unit of measurement individually
  • Product Includes
  • SM380V Refrigerant Manifold
  • (2) TC24 Type K Pipe Clamp Thermocouples
  • (1) ATA1 Type K Bead Thermocouple with Clip
  • (1) ANC11 Padded Drawstring Case
Specifications
General Information
Type
Refrigerant Manifold
Connection Type
NPT
Power Source
Battery
Interface
Digital
UPC
872641200084
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
122 F
Minimum Measuring Temperature
-50 F
Maximum Measuring Temperature
257 F
Maximum Operating Pressure
800 PSI
Electrical Data
Battery Type
AA
Dimensions
Product Weight
4 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    With years of feedback from A/C and refrigeration specialists, Fieldpiece has designed the SMAN™ Refrigerant Manifold to be the toughest and most advanced on the market. The SMAN™ features an extremely rugged overmold casing, reinforced hook and hermetically sealed sight glass to last through years of use. Wireless capabilities, data logging and tightness test allow technicians to get the job done easier, faster and more accurately. The SMAN™ is designed to streamline your job and provide your customers with the answers they need.
  • Data Logging
  • Stores up to 9 jobs internally
  • Easy download via USB port
  • Displays % free storage space before logging begins
  • Logs up to 7 days (168 continuous hours)
  • Tightness Test
  • Check for leaks after repairs or installations
  • View pressure differential over time
  • Timer tracks duration of test
  • Temperature compensated with SL temp to avoid false positives
  • Customizable
  • Adjust auto power off duration
  • Adjust back light duration
  • Set high and low vacuum alarms
  • Select each unit of measurement individually
  • Product Includes
  • SM380V Refrigerant Manifold
  • (2) TC24 Type K Pipe Clamp Thermocouples
  • (1) ATA1 Type K Bead Thermocouple with Clip
  • (1) ANC11 Padded Drawstring Case
Specifications
General Information
Type
Refrigerant Manifold
Connection Type
NPT
Power Source
Battery
Interface
Digital
UPC
872641200084
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
122 F
Minimum Measuring Temperature
-50 F
Maximum Measuring Temperature
257 F
Maximum Operating Pressure
800 PSI
Electrical Data
Battery Type
AA
Dimensions
Product Weight
4 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Type
Refrigerant Manifold
Connection Type
NPT
Power Source
Battery
Interface
Digital
UPC
872641200084
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
122 F
Minimum Measuring Temperature
-50 F
Maximum Measuring Temperature
257 F
Maximum Operating Pressure
800 PSI
Electrical Data
Battery Type
AA
Dimensions
Product Weight
4 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
