Fieldpiece - Job Link® System Charge and Air Kit

Model:

JL3KH6

Write A Review
$646.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$108 / Month
Suggested monthly payments with 6 month financing.
Fieldpiece - Job Link® System Charge and Air Kit
Fieldpiece - Job Link® System Charge and Air Kit
Model: JL3KH6
$646.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

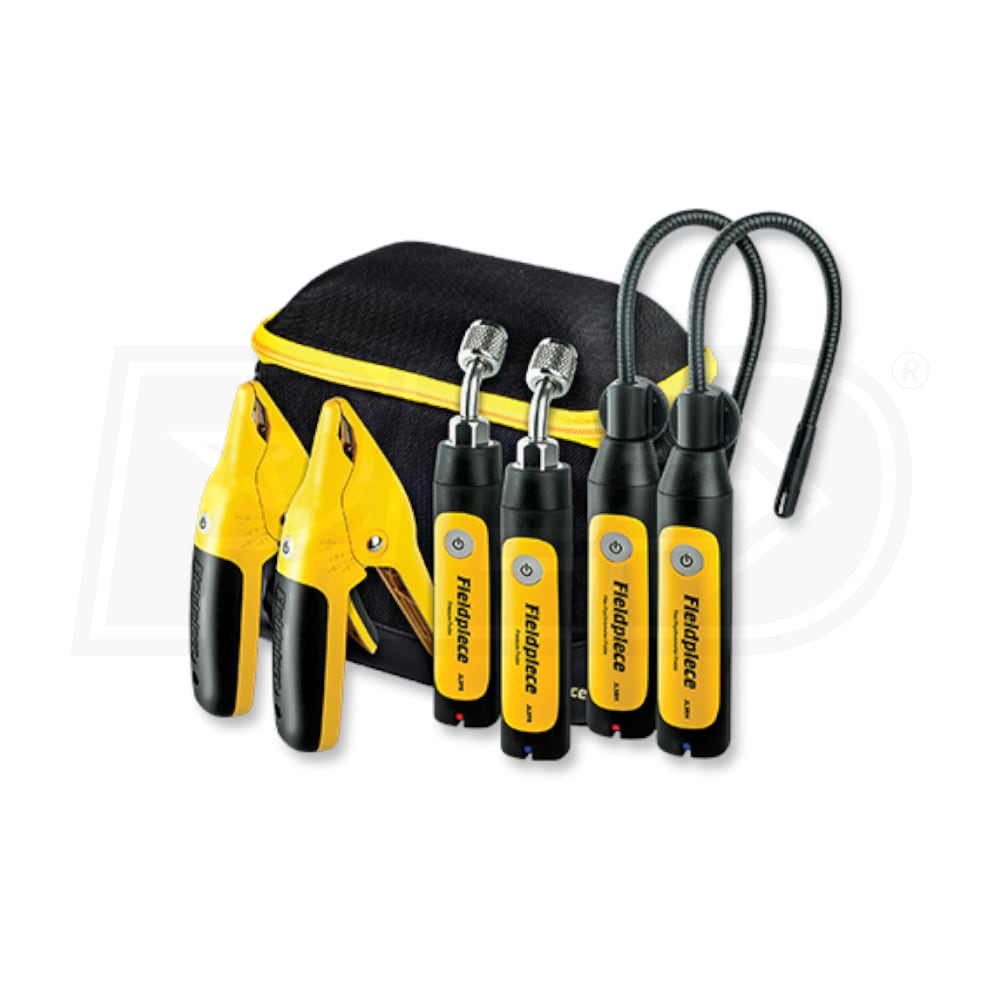

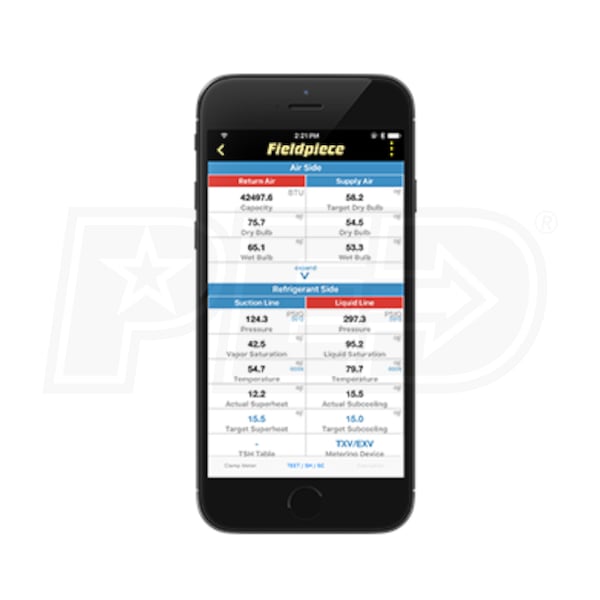

    The Fieldpiece Job Link® System Charge and Air Kit allows for a convenient and simple snapshot of an HVAC system. The kits includes (2) pressure probes, (2) pipe clamps and (2) psychrometers in a quick access padded case. Measurements can be sent up to 350 feet away directly to your mobile device with the Job Link® System mobile app. Pressure probes easily fit into tight spaces, while the pipe clamps use Rapid Rail™ technology that delivers accuracy, speed and agility - even in the most awkward pipe configurations. The psychrometers' flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts and elevated registers.
  • Pipe Clamp Features
  • For 1/4" to 1-3/8" pipes
  • Rapid Rail™ sensor stabilizes in seconds with +/- 1F accuracy
  • LED and beep indicate accurate connection
  • Ambient air conditions don't affect measurements
  • Narrow jaw connects in tight spaces
  • Water resistant
  • Psychrometer Probe Features
  • Flexible probe with strong magnet for quick measurements
  • Place in critical location based on system needs
  • Requires only 3/8" hole for duct testing
  • Measures %RH, dry and wet bulb, dew point and enthalpy
  • Pressure Probe Features
  • Quick and confident connection for little to no pressure loss
  • 45 angled fitting easily connects in tight spaces
  • Accurate at any elevation
  • Field replaceable gasket
  • Great for critically charged systems
  • Water resistant
  • Product Includes
  • (2) Temperature Pipe Clamps
  • (2) Psychrometer Probes
  • (2) Pressure Probes
  • (1) Padded Protective Case
California residents see
Warning: This product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

JL3KH6
specs product image PID-109504
Overview
Product Category
HVAC Tools
UPC
872641003401
General Information
Type
Kit
Product Category
HVAC Tools
Connection Type
NPT
Power Source
Battery
Performance
Maximum Operating Pressure
800 PSI
Electrical Data
Battery Type
AAA
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
