Features

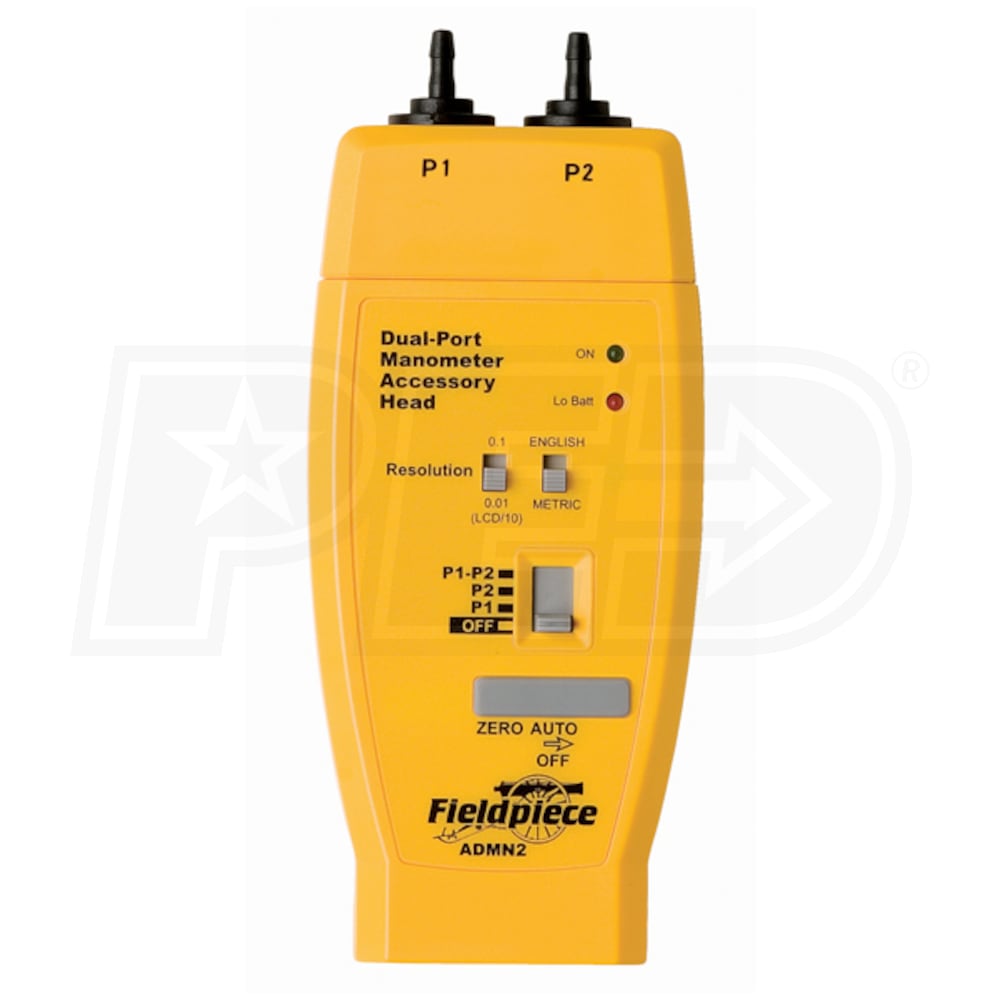

The Fieldpiece ADMN2 is a portable dual port manometer accessory head for use with modular multimeters (DMMs) and instruments. The ADMN2 measures gas pressure, static pressure and pressure differential. To conserve battery life, the ADMN2 includes a zero adjust and auto power-off function. The ADMN2 measures pressure between -60inWC and 60inWC (inches of water column) and -150.0 to 150.0 mBar. The ADMN2 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar. The included 3/16" to 5/16" adapters allow you to measure gas pressure on more makes and models of gas appliances.
California residents see
Warning: This product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ADMN2
General Information
Type
Manometer
Power Source
Battery
UPC
872641001803
Performance
Minimum Operating Temperature
32 F
Maximum Operating Temperature
122 F
Electrical Data
Battery Type
9V
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
