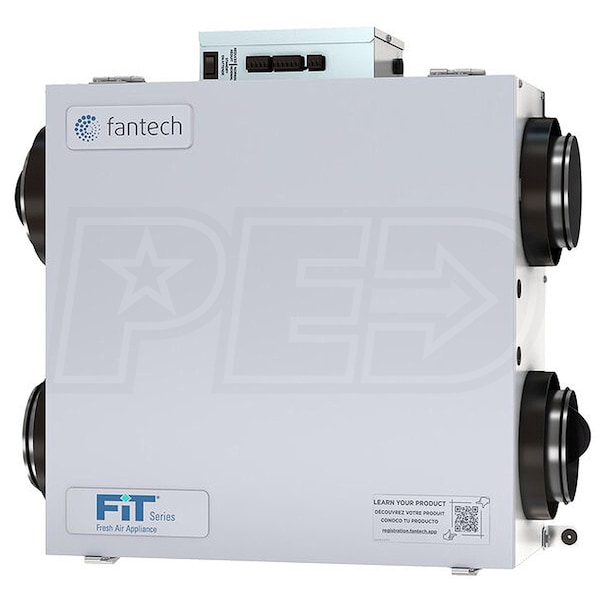

Fantech FIT 120E
Fantech FIT 120E
Hover to zoom
1 of 1

Fantech Fit® - 106 CFM - Low Profile Energy Recovery Ventilator (ERV) - Side Ports - 5" Duct - Exhaust

Model:

FIT 120E

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Fantech Fit® - 106 CFM - Low Profile Energy Recovery Ventilator (ERV) - Side Ports - 5
Fantech Fit® - 106 CFM - Low Profile Energy Recovery Ventilator (ERV) - Side Ports - 5" Duct - Exhaust
Model: FIT 120E
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Optional Accessories 1
$20.00
Only 4 In-Stock

Features

    The Fantech Fit® 120E Fresh Air Appliance is an Energy Recovery Ventilator (ERV) that provides a continuous supply of fresh air while exhausting stale air from your home. ERVs make your heating and cooling systems more efficient by transferring heat and humidity between fresh and stale air during ventilation. With a profile only 8.75" high, the Fit® 120E is ideal for applications with little mechanical room or where it must be located over a false ceiling.
  • Slim Profile
  • The compact design of the Fit® 120E, at only 8.75 tall
  • Easy Maintenance
  • You have easy access to the internal components by unlatching the 4 latches and removing the housing. Each serviceable internal component is easily accessible and can be fully removed.
  • No Drain Required
  • A drain is not required with the Fit® 120E. Moisture in the incoming air is simply transferred to the outgoing air during the circulation process.

Specifications

FIT 120E
specs product image PID-82057
Overview
Product Category
Energy Recovery Ventilators (ERVs)
UPC
650737449407
Additional Model Numbers

FIT120E, FIT 120E

General Information
Type
ERV
Product Line
Fit
Product Category
Energy Recovery Ventilators (ERVs)
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Port Location
Side
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
106 CFM
Electrical Data
Power Consumption
170 Watts
Phase
1
Frequency
60 Hz
Current Draw
1.4 Amps
Dimensions
Duct Connection
5 Inches
Product Height
8 3/4 Inches
Product Width
30 1/2 Inches
Product Depth
19 Inches
Product Weight
42 Pounds
Shipping Weight
52 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years

Reviews

(4)
Fantech FIT 120E Reviews & Ratings
Verified Buyer
Verified Buyer
Great Unit
By Andrew Z
Montana
Purchased 09/14/2023 |
Review Posted 10/11/2023
Very happy with the controls and operation of the unit. The most advanced unit on the market by far.
Andrew Z Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use
Verified Buyer
Verified Buyer
Works Great But Would Not Recommend For Southern Humid Climates
By Tim L
Central florida, Florida
Purchased 02/13/2020 |
Review Posted 09/26/2021
We bought two of these units for stand alone ventilation in a extremely tight (.83 ACH ) ICF home in humid Florida climate. We have ductless mini splits and do have to supply from ERV going to just above the ductless returns. Unfortunately the logic for the units seems to be designed more for a dry climate. The humidity levels when set to 50% on controller will continue to vent to lower humidity but in our climate when the intake humidity from outside in front of the ERV is at 90% and after the ERV mix chamber is still at 75% to 80% entering the home you will waste Power constantly trying to remove humidity unless you purchase another appliance such as a whole home dehumidifier. The logic I’m my opinion would be better if suited to either a dry or damp climate or programmable with scheduling. FANTECH did come out with a new controller with a little better logic but still in my opinion does not work for a damp climate.
If your in a dry climate this unit would be great but for me I’m now researching dehumidifiers and creating my own logic to control scheduling.
Tim L Does Not Recommend This
Was this review helpful?
Rating Breakdown
Features
3/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
3/5
icon-review-marker
Value
3/5
icon-review-marker
Pros:
Easy To Use, Durable, Reliable
Cons:
Not good for use in humid southern climates
Verified Buyer
Verified Buyer
Great Product, Easy To Install
By Grover C
Raleigh, North Carolina
Purchased 01/11/2020 |
Review Posted 02/03/2020
The Fantech arrived in great shape. Instruction manual is easy to read and understand. Installation went smoothly and is working great.
Grover C Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Quiet, Price, Exceeded Expectations
Verified Buyer
Verified Buyer
Excellent ERV
By Michael S.
Springfield, Oregon
Purchased 07/03/2019 |
Review Posted 07/31/2019
This unit was installed in a beauty salon to relieve stale air and odors. This system worked great and is compact.
Michael S. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Easy To Use, High Quality, I'd Buy It Again
