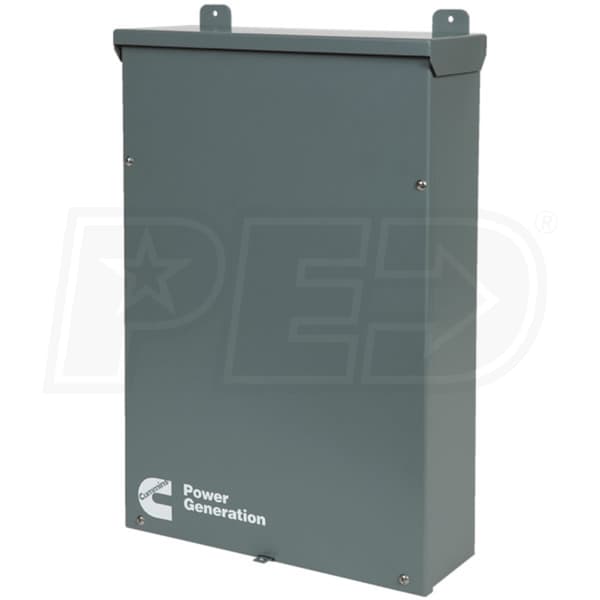

Cummins RA-400-NSE - 400-Amp Outdoor Automatic Transfer Switch For RS/RX Series Generators

Cummins RA-400-NSE - 400-Amp Outdoor Automatic Transfer Switch For RS/RX Series Generators
Our Price
Compare Prices
Shipping Info
Model: A050W633
$1,699.00

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Shipping$1,699.00Buy Now
$1,699.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Indiana or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Cummins RA Series 400-Amp Automatic Transfer Switch
  • Designed for Cummins RS & RX series generators
  • For Standard Installation - Requires a sub-panel for overload protection
  • Versatile Design
  • For standby systems in residential & light commecial applications
  • Fully-Automatic - Monitors Utility Power 24/7
  • When utility power becomes unsatisfactory or fails
  • Genset is signaled to start & then automatically transfers load
  • When power returns load is shifted back to utlity power
  • NEMA 3R (Indoor/Outdoor) Enclosure
  • Give you the flexibility to install inside or outside the home
  • Mechanically Interloced Contactor
  • Long life, silver alloy contact resists burning & pitting
  • Powerful and economical solenoid drives the mechanism
  • Ease Of Connection
  • Solderless screw type terminals for external power connections
  • Rated at 400-Amps @ 240-Volts
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Required
ATS Load Shedding
Not Required
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
64.5 Pounds
Consumer Warranty
1 Year
Product Length
36.9 Inches
Product Width
24.9 Inches
Product Height
11.1 Inches
Features
Features
  • Cummins RA Series 400-Amp Automatic Transfer Switch
  • Designed for Cummins RS & RX series generators
  • For Standard Installation - Requires a sub-panel for overload protection
  • Versatile Design
  • For standby systems in residential & light commecial applications
  • Fully-Automatic - Monitors Utility Power 24/7
  • When utility power becomes unsatisfactory or fails
  • Genset is signaled to start & then automatically transfers load
  • When power returns load is shifted back to utlity power
  • NEMA 3R (Indoor/Outdoor) Enclosure
  • Give you the flexibility to install inside or outside the home
  • Mechanically Interloced Contactor
  • Long life, silver alloy contact resists burning & pitting
  • Powerful and economical solenoid drives the mechanism
  • Ease Of Connection
  • Solderless screw type terminals for external power connections
  • Rated at 400-Amps @ 240-Volts
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Required
ATS Load Shedding
Not Required
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
64.5 Pounds
Consumer Warranty
1 Year
Product Length
36.9 Inches
Product Width
24.9 Inches
Product Height
11.1 Inches
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Required
ATS Load Shedding
Not Required
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
64.5 Pounds
Consumer Warranty
1 Year
Product Length
36.9 Inches
Product Width
24.9 Inches
Product Height
11.1 Inches
