Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Steel) (Service Disc.)

Model:

A045P697

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Steel) (Service Disc.)
Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Steel) (Service Disc.)
Model: A045P697
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • RA Series 200-Amp Automatic Transfer Switch w/ Service Disconnect
  • Designed for Cummins RS & RX series generators
  • Service Entrance Rated (Overcurrent Disconnect Device)
  • Offers ability to power all circuits without a sub-panel
  • Versatile Design
  • For standby use in residential & light commercial applications
  • Fully-Automatic - Monitors Utility Power 24/7
  • When utility power becomes unsatisfactory or fails
  • Genset is signaled to start & then automatically transfers load
  • When power returns load is shifted back to utility power
  • NEMA 3R (Indoor/Outdoor) Enclosure
  • Give you the flexibility to install inside or outside the home
  • Mechanically Interlocked Contactor
  • Long life, silver alloy contact resists burning & pitting
  • Powerful and economical solenoid drives the mechanism
  • Ease Of Connection
  • Solderless screw type terminals for external power connections
  • Rated at 200-Amps @ 240-Volts
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A045P697
specs product image PID-13286
Overview
Weight
58 Pounds
Consumer Warranty
1 Year
Product Length
23.3 Inches
Product Width
19.8 Inches
Product Height
7.2 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Required
ATS Load Shedding
Not Required
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes

Reviews

(5)
Cummins Power Generation A045P697 Reviews & Ratings

How-To Articles

eComfort How-To Library
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery
Cummins RA-200-SE - 200-Amp Outdoor Automatic Transfer Switch For RS/RX Generators (Steel) (Service Disc.)
Cummins Power Generation A045P697

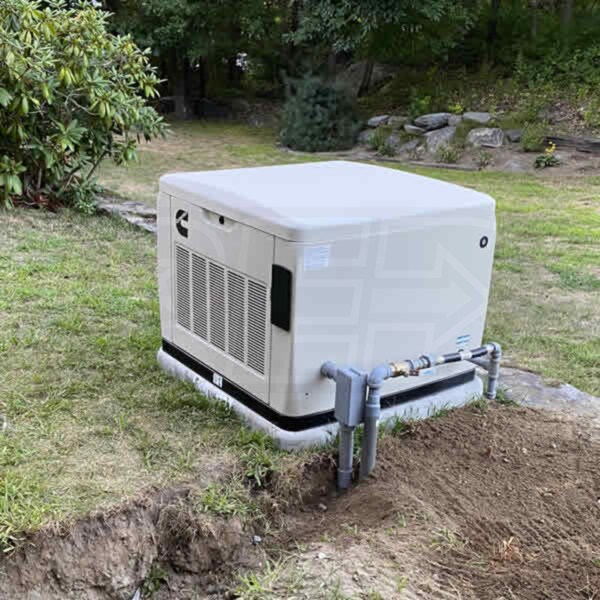

Customer Review Images
